SECTION 3 - CHASSIS & TURNTABLE
3121813 – JLG Lift – 3-11
5. Remove 4 Thrust Washers (4B), 28 Needle Rollers
(4C) and the Thrust Spacer (4D) from the Second
Stage Planet Gear (4F).
6. Repeat Steps 1 though 5 for the remaining two
Planet Gears (4F).
7. Remove the Thrust Washer (4H) from the counter-
bore in the Output Carrier (4A).

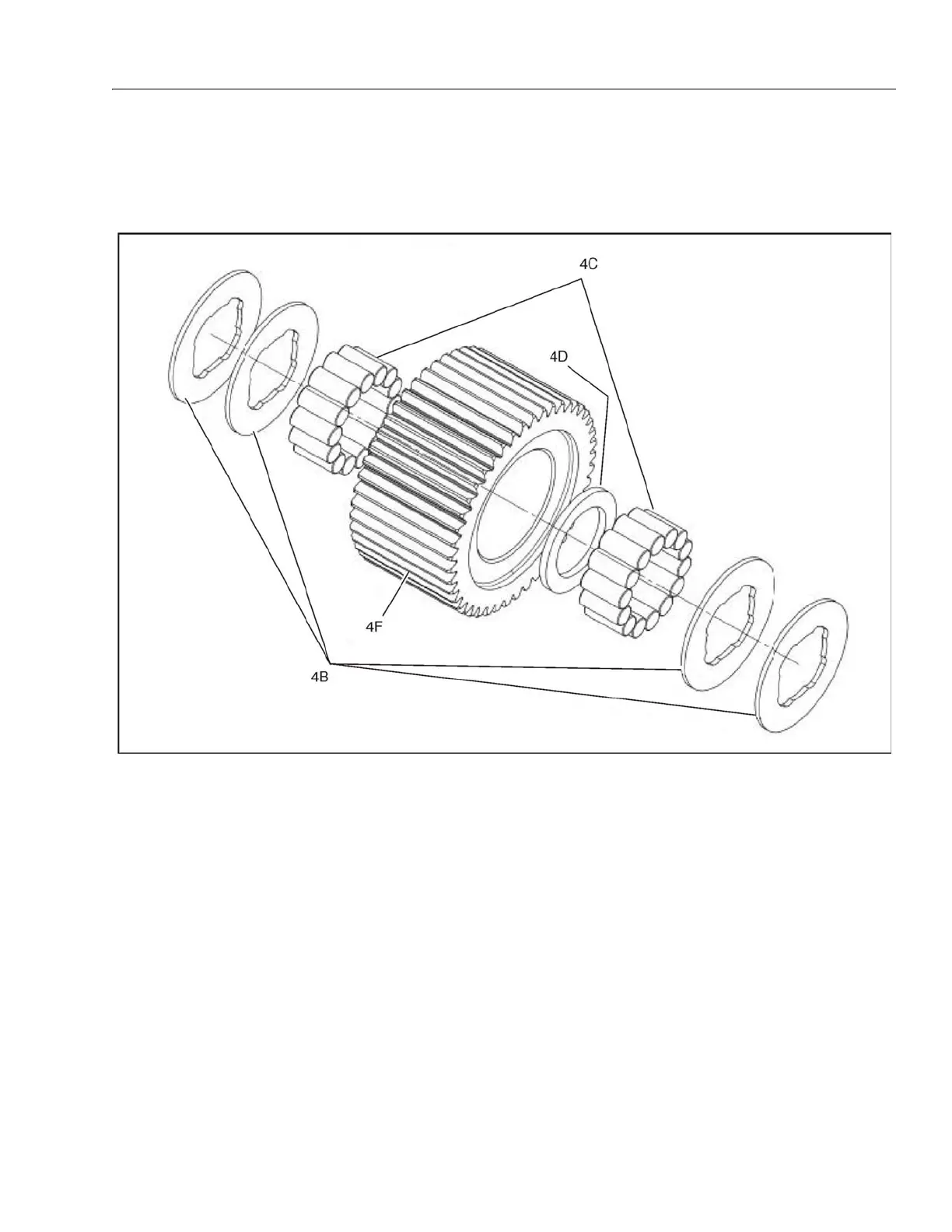

Figure 3-5. Planet Gear
1F Output Carrier
4B Thru st Was her
4C Needle Bearing
4D Thrust Spacer
4F Planet Gear
