JLG E600 - Motor and Brake Disassembly

SECTION 3 - CHASSIS & TURNTABLE
3-34 – JLG Lift – 3121813
Motor and Brake Disassembly
1. With unit resting on bench with Motor (10) end up,
loosen Hex Bolts (12) and remove Brake/Motor Sub-
assembly from the Housing (1G) (See assembly
drawing).
2. Remove O-Ring (5A) from between Brake/Motor
Subassembly and Housing (1G) (See assembly
drawing).
3. Remove Thrust Washer (11) from between Brake/
Motor Subassembly and Carrier.
4. Remove one O-Ring Plug (13) from Motor (10) and
one O-Ring Plug (13) from Brake Housing (6).
5. Remove O-Ring Plug (4) from Brake Housing (6).
5A. O-ring
11. Thrust Washer
12. Hex Bolts

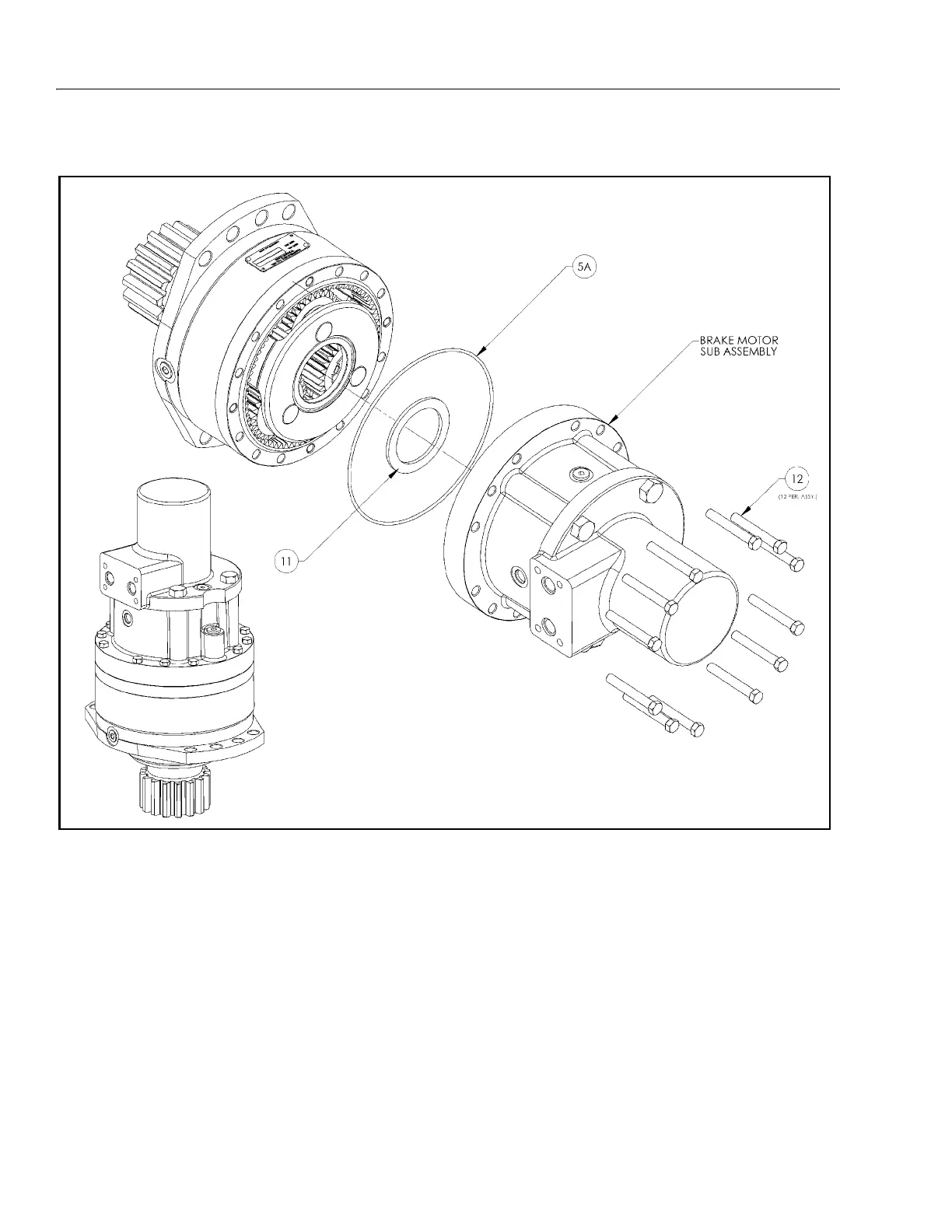

Figure 3-19. Motor and Brake Disassembly
