JLG E600 - Output Carrier Disassembly

SECTION 3 - CHASSIS & TURNTABLE
3-10 – JLG Lift – 3121813
Output Carrier Disassembly
1. Using a 1/8" diameter punch, drive the Roll Pin (4G)
into the Planet Shaft (4E) until it bottoms against the
Carrier (3A).
2. Using a soft face hammer, tap the Planet Shaft (4E)
out of the Carrier (4A).
3. Using a 1/8" diameter punch, drive the Roll Pin (4G)
out of the Planet Shaft (4E). NOTE: The Roll Pins
(4G) should not be reused when reassembling the
unit.
4. Slide the Planet Gear Sub-assembly (4) out of the
Output Carrier (4A) being careful to not drop the
Needle Bearings (4C) in the process.

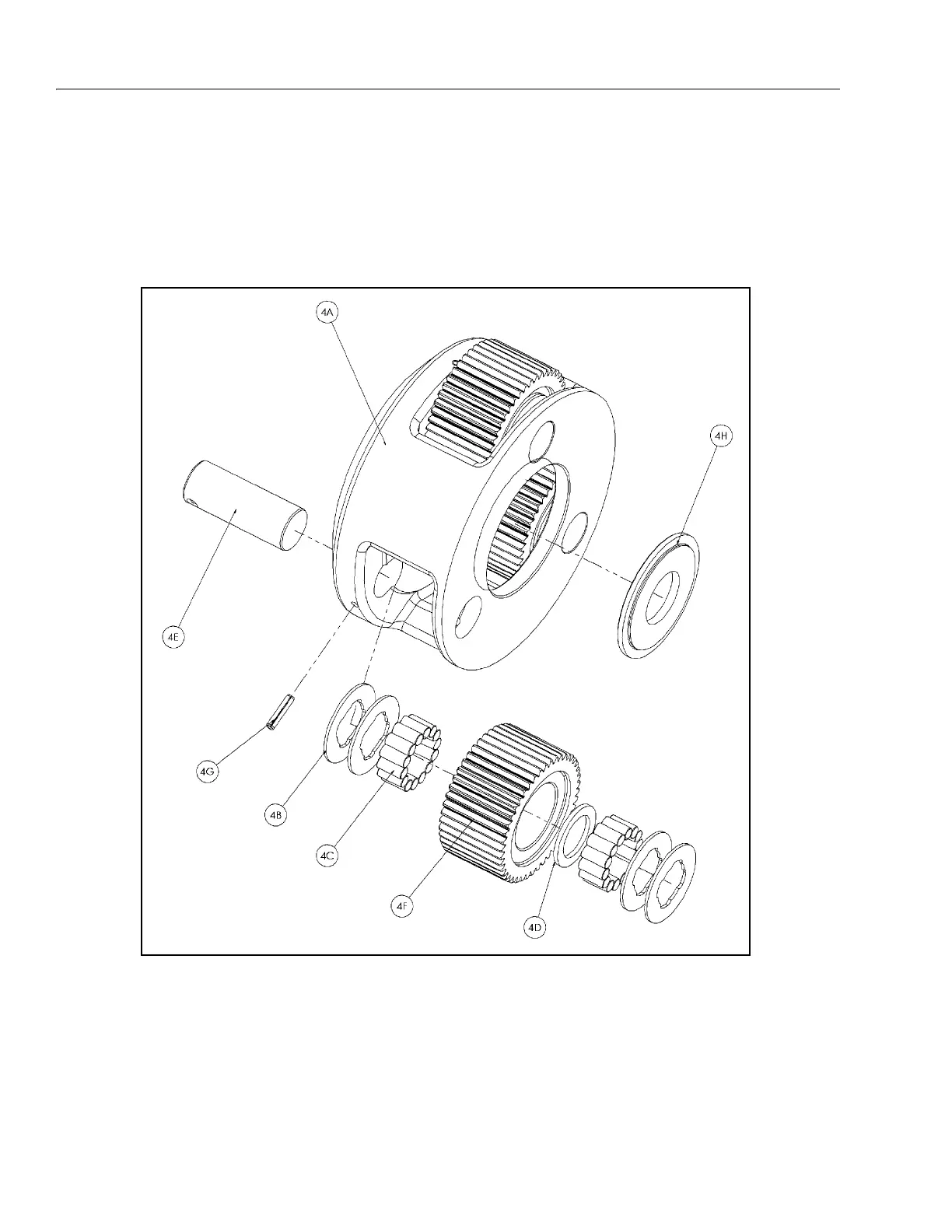

Figure 3-4. Output Carrier
4A Out put Carrier
4B Thr ust Wa sher
4C Needle Bearing
4D Thr ust Spac er
4E Planet Shaft
4F Planet Gear
4G Rol l Pin
4H Thrust Washer
