JOHNSON CONTROLS

SECTION 9 – HIGH-TEMPERATURE GENERATOR INLET STEAM PIPING

FORM 155.17-N1

ISSUE DATE: 4/1/2013

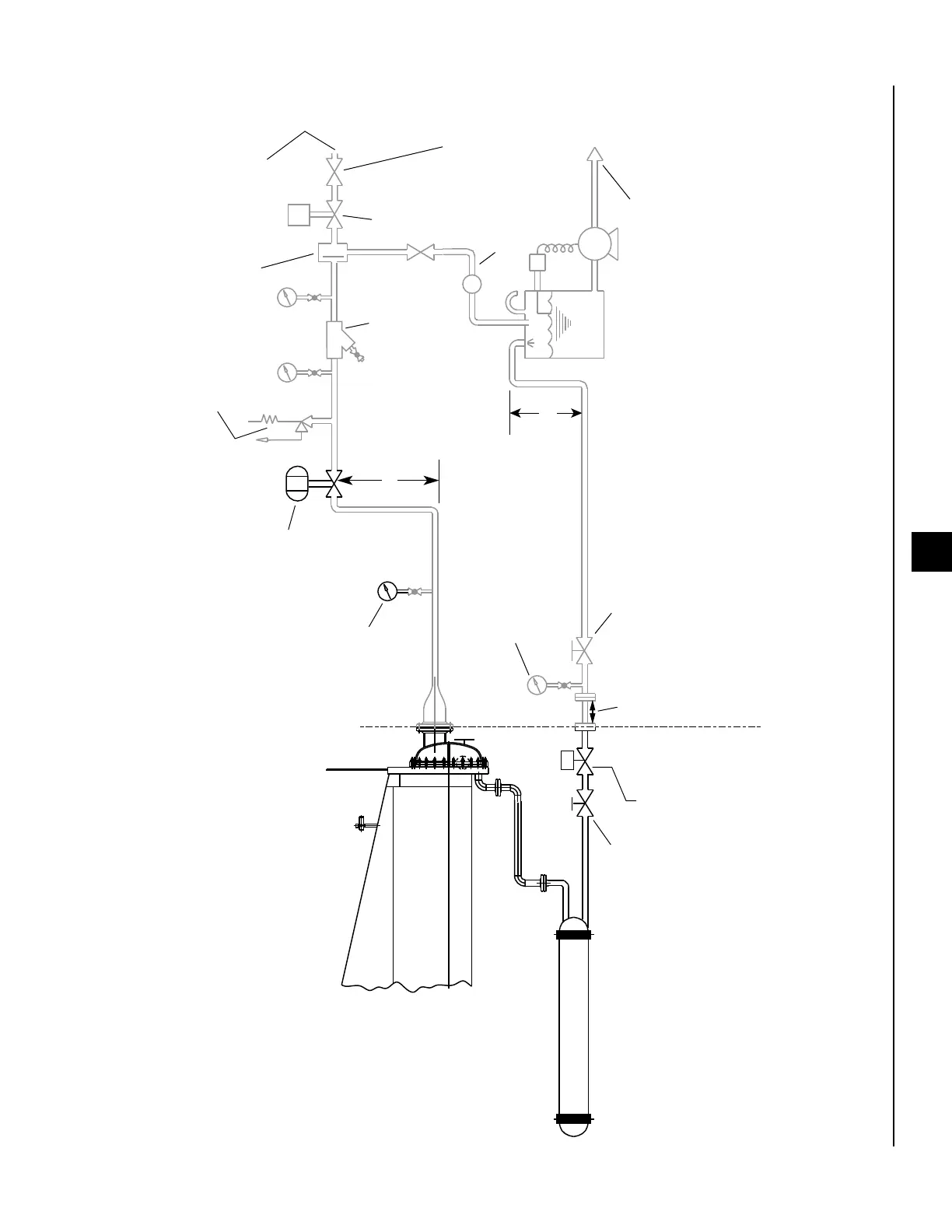

FIGURE 12 - STEAM PIPING SCHEMATIC

ld05561

5 Sol

UNIT FIRST-STAGE

GENERATOR

CONDENSATE COOLER(S)

NEEDLE

VALVE

CONDENSATE

SOLENOID VALVE

8" SPOOL

PIECE

ADJUSTABLE CONDENSATE

BACK-PRESSURE VALVE

(GLOBE VALVE)

CONDENSATE OUTLET

PRESSURE INDICATOR

STEAM INLET

PRESSURE GAUGE

STEAM CONTROL VALVE

(SUPPLIED BY YORK)

RELIEF

VALVE

STEAM

SEPARATOR

STEAM

SUPPLY INLET

MANUAL

BLOCK

VALVE

AUTOMATIC

SHUT-OFF

VALVE

(FAIL CLOSE)

STEAM TRAP

50 MESH

STRAINER

CONDENSATE

RETURN SYSTEM
