SECTION 12 – BURNER INSTALLATION (POWER FLAME BURNERS)
FORM 155.17-N1
ISSUE DATE: 4/1/2013

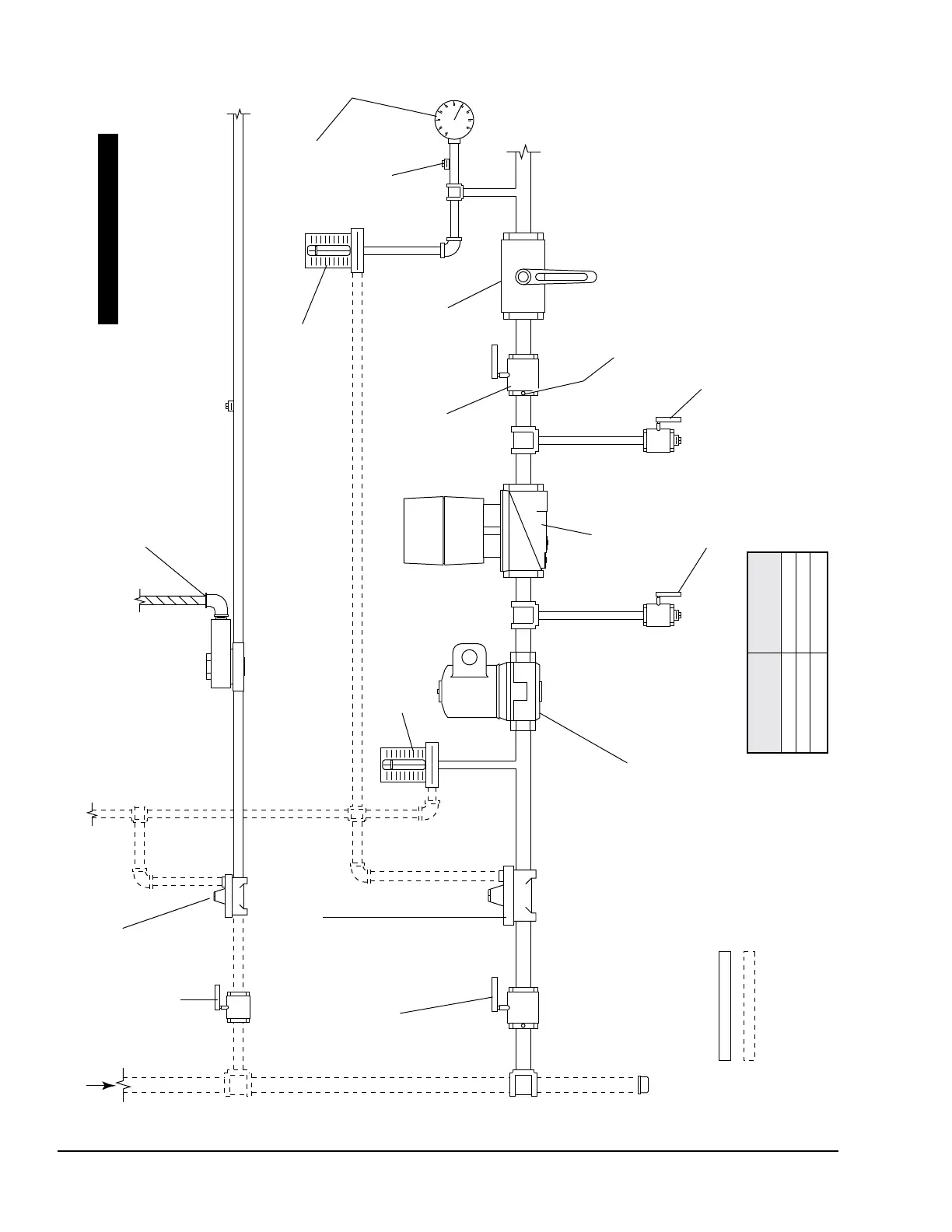

FIGURE 20 - STANDARD U.L. GAS TRAIN
1/4" PRESSURE TAP WITH PLUS MAY ALSO BE PART OF NIPPLE OR MOTORIZED GAS VALVE
MAIN BURNER
TEST COCK (1/4")
TEST COCK (1/4")
MAIN GAS VALVE*
LEAKAGE
TEST COCK
MODULATING
BUTTERFLY VALVE
1/4"
PRESSURE
TAP
GAS PRESSURE
GAUGE
HIGH GAS PRESSURE SWITCH
PILOT BURNER
1/8" PRESSURE TAP
PILOT SOLENOID VALVE
LOW GAS PRESSURE SWITCH
AUXILIARY
GAS VALVE
1/4" PRESSURE TAP USE TAPPED VALVE UNLESS TAPPED NIPPLE IS SUPPLIED
DIRT LEG WITH CAP EXTEND TO FLOOR
MAIN GAS
SHUTOFF COCK
WITH HANDLE
MAIN GAS
PRESSURE REGULATOR**
GAS
SUPPLY
PILOT
SHUT-OFF
COCK
PILOT PRESSURE
REGULATOR**
VENT** TO
ATMOSPHERE
DO NOT USE TEFLON TAPE
GAS TRAIN TO BE PREPIPED
FACTORY PIPED FIELD PIPED
CAUTION:
ALL FIELD PIPING MUST BE MOUNTED IN THE PROPER LOCATION AND IN PROPER DIRECTION OF GAS FLOW.
* PROOF OF CLOSURE REQUIRED ABOVE 5,000,000 BTU's **
COMMON VENT
REGULATORS
LINE SIZE 3/4" RV-53 thru RV-91 1" RV100, 2100 1-1/4" RV131, 210 E-J
NOTE:
THIS DRAWING DEPICTS YORK INTERNATIONAL "S" STANDARD SCOPE OF SUPPLY. PROJECT SPECIFIC BURNER SUBMITTAL WILL BE SUPPLIED UNDER SEPARATE COVER.
