JOHNSON CONTROLS
83
SECTION 29 – ELECTRICAL CONNECTIONS
29
FORM 155.17-N1
ISSUE DATE: 4/1/2013
ENERGY MANAGEMENT SYSTEMS WIR ING
The ParaFlow™ micro panel control center is designed
to function as an integral component of the YORK
ParaFlow™ absorption chiller/heater. All of the data
con tained in the micro panel control center is shared
with the YORK direct digital controllers via the single
twist ed-pair YorkTalk Bus. All temperatures, pres-
sures, safety alarms and cycling conditions are avail-
able to the direct digital controllers for integrated plant
control, data log ging, and local and remote display of
operator in for ma tion. The YorkTalk Bus communica-
tion interface allows the direct digital controllers to is-
sue commands to the micro panel control center to set
temperature setpoints and start or stop the unit.
The micro panel control center also provides a lim-
ited interface to other Energy Management Systems
(EMS). The micro panel control center includes unit
status con tacts, provisions for remote temperature
setpoint reset and starting and stopping of the unit.
All field control wiring modifications are to be fur-
nished and installed by others. To learn more about
what safety devices and chiller controls can be wired
remotely, refer to the mi cro panel wir ing di a gram,
YORK Form 155.17-PA1, YORK Form 155.17-W1
(for gas/oil-fired units), or YORK Form 155.19-W1
(for steam-fired units).

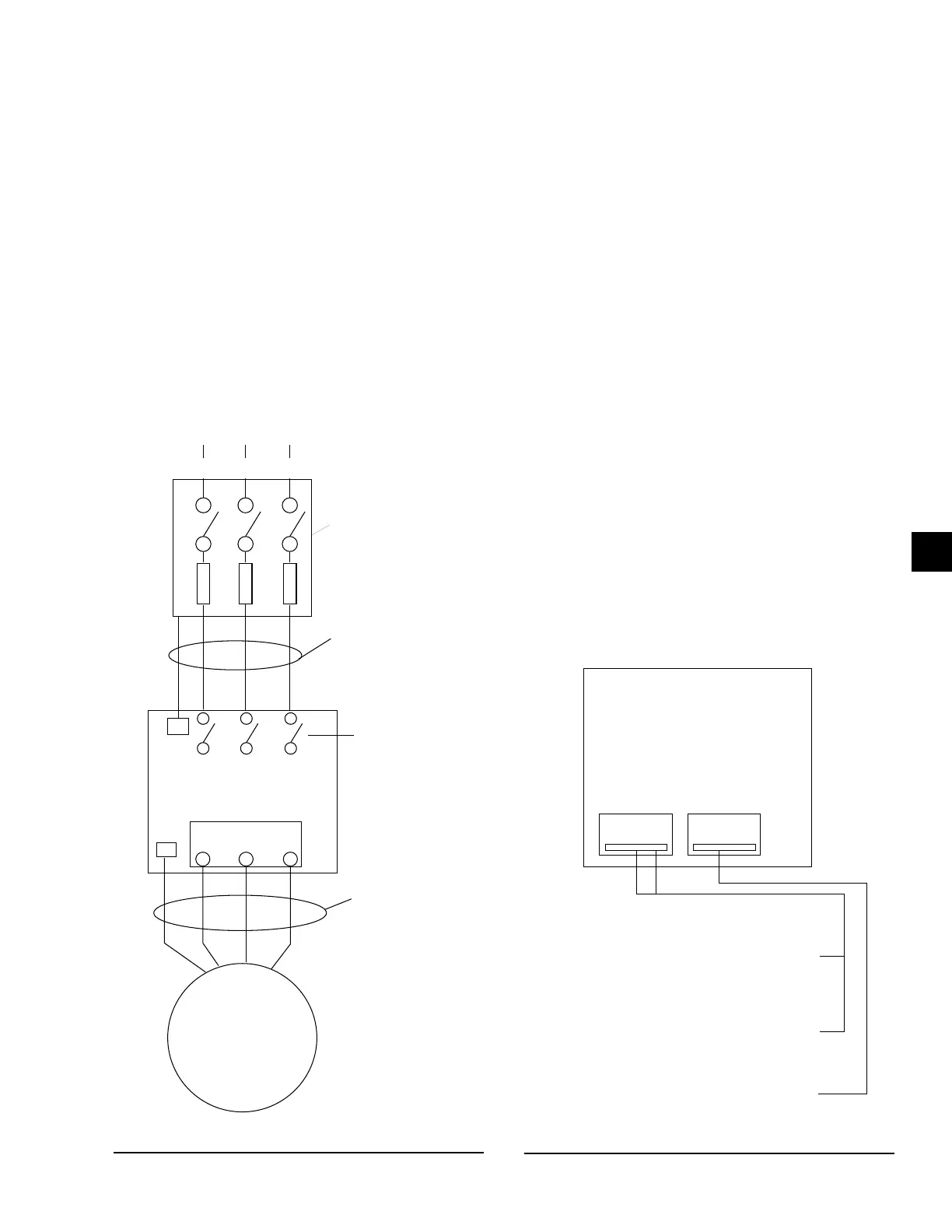

FIGURE 42 - WIRING THE PURGE PUMP
LD05329
L1 L3L2
L1 L3L2
INCOMING 3-PHASE POWER
CUSTOMER
SUPPLIED FUSED
DISCONNECT SWITCH
CUSTOMER
SUPPLIED WIRING
GND
GND
UNIT MOUNTED
POWER PANEL
3M CONTACTOR
T1 T2 T3
FACTORY SUPPLIED
HARNESS
M3
PURGE PUMP MOTOR
107
108 109
FACTORY INSTALLED
NON-FUSED, SERVICE
DISCONNECT SWITCH
WITHIN PANEL
FIGURE 43 - FLOW SWITCH CONNECTIONS
LD05330
DIGITAL INPUT
BOARD
RELAY BOARD
UNIT MOUNTED
MICROPANEL CONTROL CENTER
Chilled Water Flow Switch, supplied by
YORK, shipped loose for eld installation
by others; contacts 1 and 12 on Digital
Input Board TB2.
Condenser Water Flow Switch, contacts
1 and 2 on Digital Input Board TB2.
Hot Water Flow Switch (where applicable),
contacts 1 and 82 on Relay Board TB4.
