JOHNSON CONTROLS
95
B
FORM 155.17-N1
ISSUE DATE: 4/1/2013
NOTE: For lifting units, sling vertically. Use extreme care so as not to sling against, or on any projecting brackets, pipes, ttings, etc. Four
slings are to be used on these machines; one on each generator and one on each end of the main shell. When viewed from the exhaust end
of the machine, the slings on the left side will be in the same plane while the slings on the right side will be staggered.
60°
OR LESS
60°
OR LESS
B
A
C

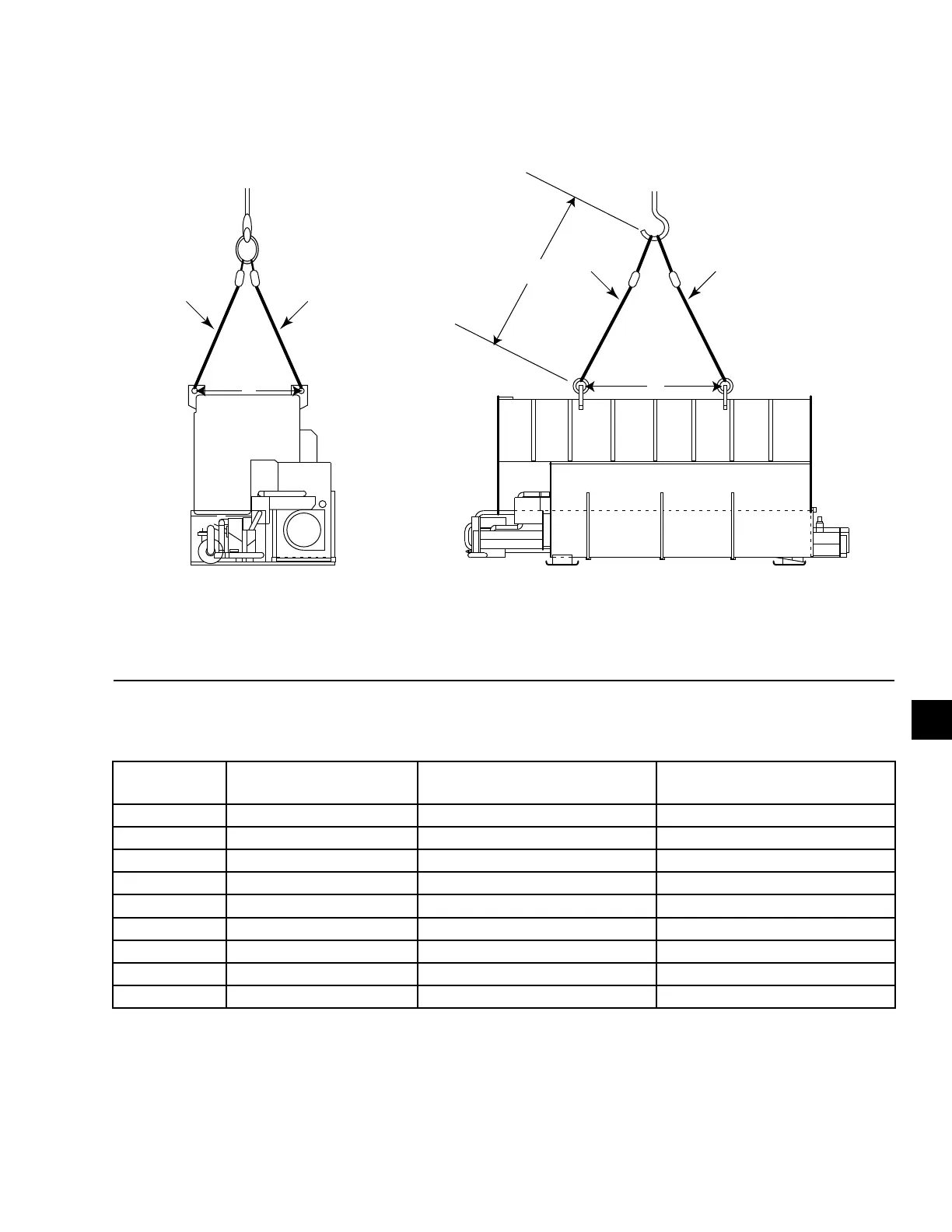

FIGURE 44 - RIGGING FOR 12SC THROUGH 19S DIRECT-FIRED AND STEAM UNITS
LD05332
TABLE 15 - S-UNIT RIGGING
UNIT
MODEL
DIMENSION “A”
(INCHES)
DIMENSION “B”
(INCHES)
DIMENSION “C” (MINIMUM)
(INCHES)
12SC & 13S 55 53-1/2 55
13SC & 14S 55 53-1/2 55
14SC & 15S 71-3/4 53-1/2 71-3/4
15SL 94-1/2 72-1/2 94-1/2
16S 94-1/2 72-1/2 94-1/2
16SL 103-3/4 72-1/2 103-3/4
17S 103-3/4 72-1/2 103-3/4
18S 138-3/4 72-1/2 138-3/4
19S 138-3/4 72-1/2 138-3/4
NOTE: Dimension "C" value will give an angle less than 60°
APPENDIX B - RIGGING ILLUSTRATIONS
