Introduction
4
1.4 S
tructure
130
290
290
327
230
215
155
200
290
120
254
170
193
170
4-M4
DEPTH 6

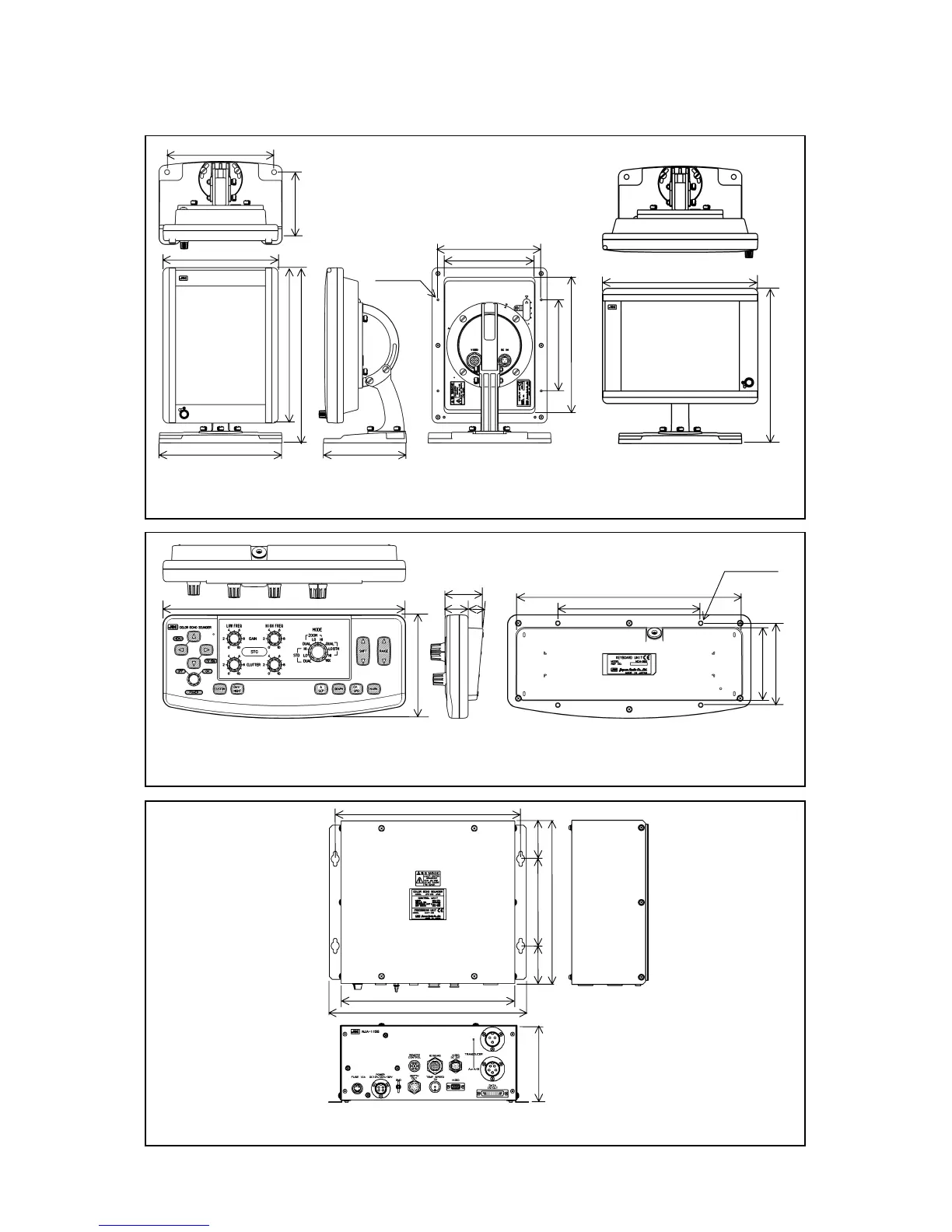

Outline dimensions NWZ-146 dis
p
la
y
unit
(
vertical mount
)
(
horizontal mount
)
150
340
300
320
280
65
65
130
Outline dimensions NJH-1
130/NJH-1
130H
P
123
27
5ﾟ
(44.6)
290
87
170
97
270
4-M4
DEPTH 6
Outline dimensions NCH-56
2 keyb
oard unit
(unit: mm)
(unit: mm)
(unit: mm)
21
23
Table of Contents
Preface
3
Before Operations
4
Precautions Upon Equipment Operation
5
EMC Installation & Service Guidelines
9
Suppression Ferrites
10
Notes for Using the Echo Sounder
11
Outside View
12
Table of Contents
13
Glossary of Terms
18
SECTION 1 Introduction
19
Function
19
Features
20
Components
21
Structure
22
Power and Transducer Connection
23
SECTION 2 Names and Functions of Components
24
Keyboard Unit Keys
26
Keyboard Unit Keys and Functions
27
SECTION 3 Operation
28
Screen Layout
28
Fishfinding Displays
28
STANDARD Mode
28
VRM EXPAND Mode
28
Bottom Discrimination Mode
29
BOTTOM LOCK EXPAND Mode
29
MIXED Mode
29
A-Scope Display
29
Menu Displays
30
Basic Operations
31
Turning the Power on and off ([POWER] Switch)
31
Adjusting Brightness ([Brightness] Control)
31
Day/ Night
31
Switching Brightness between Day and Night
31
Key)
31
Selecting Display Modes([MODE] Switch)
31
Changing the Chart Feed Speed
32
SPD Key)
32
Displaying/Hiding Graphs
32
Graph
32
Key)
32
Writing an Event
32
MARK Key)
32
Displaying/Hiding an A-Scope Picture
32
Ascp
32
Calling up the Main Menu ( + Key)
33
Calling up a Submenu
33
MARK Key
33
Returning to the Main Menu
33
Exiting the Main Menu (to a Fishfinding Display)
33
Graph
33
Key)
33
Calling up the Fishfinding Menu ( + Key)
34
Calling up a Submenu
34
MARK Key
34
Returning to the Fishfinding Menu
34
Exiting the Fishfinding Menu to a Fishfinding Display
34
Graph
34
Key)
34
Call up and Exiting the STC ADJUST Menu
34
MARK GRAPH Key)
34
Resetting to Prerecorded Settings
35
Custom
35
Key)
35
Recording Settings
35
Key Lock Function
36
Mark Night
36
Day
36
Key)
36
Function Key Operations
37
Range Operations
37
Range 60
37
Changing a Range
37
Key)
37
Varying a Range (PRESET STD RANGE)
37
Varying a Range Automatically (AUTO)
38
Varying a Range in Steps (STEP Range)
38
Varying a Step Value (STEP Setting)
38
Varying the VRM EXPAND Mode Range (VRM EXP. RANGE)
39
Choosing from Among Five VRM EXPAND Mode Ranges
39
Varying a Preset VRM EXPAND Mode Range
39
Varying the BOTTOM LOCK EXPAND Mode Range (BTM EXP.RANGE)
40
Choosing from Among Five BOTTOM LOCK EXPAND Mode Range
40
Varying a Preset BOTTOM LOCK EXPAND Mode Range
40
To Change the Display Range of the Sea-Bottom Image Portion (B.DISCRIM RANGE)
41
Choosing from Among Five Bottom Discrimination Range
41
Varying a Preset Bottom Discrimination Mode Range
41
Shift Operations
42
Key)
42
Shift
42
Shifting a Range
42
Screen Display Operations
42
Repositioning/Hiding the Water Temperature Display (TEMP.POSITION)
42
Canceling Interfering Signal (INTERFERENCE)
43
Repositioning/Hiding the Depth Scale Display (SCALE POSITION)
43
Changing Depth Scale Divisions (FINE SCALE)
44
Displaying/Hiding the Color Sample (COLOR SAMP.)
45
Displaying/Hiding the Cursor (VRM)
45
Changing the Mode of Split Display (Vertical/Horizontal/Expanded Split Display)(SPLIT DISP.MODE)
46
Repositioning/Hiding the Bottom Depth Display (DEPTH POSITION)
46
Bottom Discrimination Display Mode
48
Changing the Expanded Display Area（Btm/Vrm EXP.AREA
48
Changing the Mode of A-Scope Display(A-SCP MODE)
49
Color Operations
50
Changing the Background Color (BACK COLOR)
50
Changing the Fishfinding Display Colors (COLOR MODE)
50
Customizing Colors to be Used (USER COLOR)
51
Graph Operations (SET GRAPH)
52
Changing the Display Time
52
Changing the Water Temperature Range
52
Changing the Depth Range
53
To Display the Hardness of the Sea Bottom (BH Value) on a Graph (DEPTH/BH)
53
Unit Set up Operations (UNIT)
54
Changing the Depth Unit (DEPTH UNIT)
54
Customizing the Depth Unit (SPECIAL UNIT)
54
Setting a Draft (DRAFT)
54
Changing the Water Temperature Unit (TEMP.UNIT)
55
Displaying the Depth from the Keel (below KEEL)
55
Smooth the Picture (AVERAGE)
55
Fishfinding Display Operations
56
Adjusting Gains
56
Adjusting Gains by Setting the STC Mode
56
Adjusting Gains with the [GAIN] Control
56
Adjusting Gains with the [STC] Control
56
Adjusting Gains by Setting the PDC (Transmitter Output)
57
Adjusting Nearby Gains by Setting the STC ADJUST
57
Suppressing Noise ([CLUTTER] Control)
57
Rejecting Particular Colors (COLOR REJ.)
58
Discriminating between the Sea Bottom and Fish Schools (WHITE LINE)
59
Getting Sharper Display Pictures (TX PULSE WIDTH)
60
Suppressing Interference (ADJUST FREQ.)
60
Preventing Interruption by Bubble (TX CYCLE MODE)
61
To Inhibit the Display of the Quasi Sea-Bottom Image (ADJUST TX CYCLE)
61
Darkening/Lightening General Colors (ADC MODE)
62
Displaying an Externally Input Fishfinding Display (EXT INPUT) (Option)
62
Emphasizing Little Echoes Onscreen 1 (SIG.PROCESS)
63
Emphasizing Little Echoes Onscreen 2 (SCROLL STEP)
63
Error Messages
64
Can't Back up
64
Can't Read Data
64
Language Type
64
Executing a Master Reset
65
Remote Controller Functions
66
What You Can Do with the Remote Controller
66
Connecting the Remote Controller
66
Remote Controller Buttons and Functions
66
Remote Controller Operation
68
Record/Replay Function
68
Recording an Image
68
Replaying a Recorded Image
69
Alarm Function
70
Enabling and Disabling the Audible Alarm
70
Setting the Fish School Alarm
71
Setting the Water Temperature Alarm
72
SECTION 4 Maintenance
73
Daily Maintenance
73
Measures to be Taken When an Abnormality or Failure Has Been Found
74
SECTION 5 Consider Installation
75
SECTION 6 After-Sales Service
76
When Ordering a Repair
76
Recommendation of Overhaul
76
Specifications
