key to shift down.
The display range is shifted at intervals of the preset step value. (See page
20 “Varying a Step Value.”)
This step value serves as a shift step when a step range is
selected.

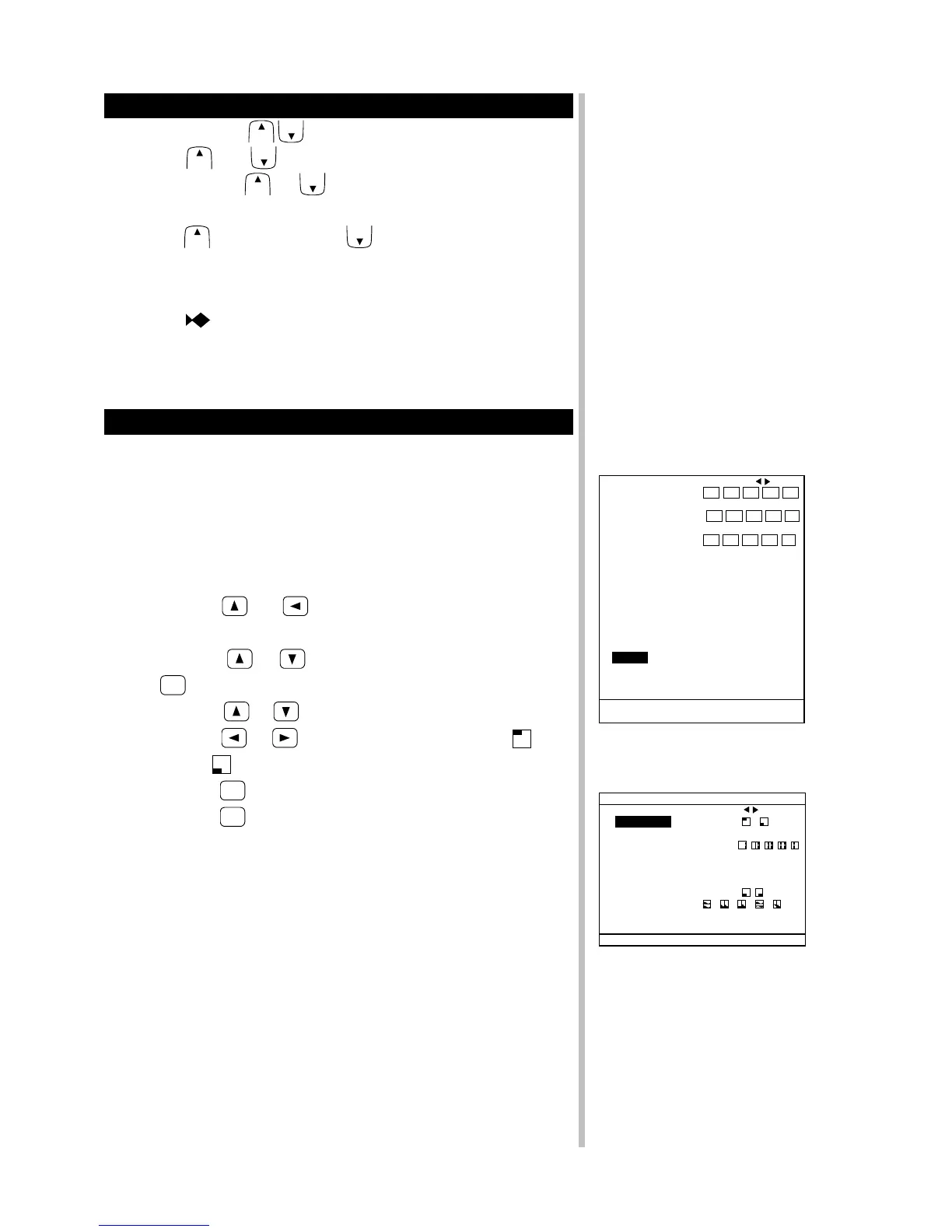

Screen Display Operations
<
Repositioning/Hiding the Water Temperature Display (TEMP.POSITION)
The water temperature display appears onscreen (option). If its position
interferes with the sight of the display image, you can reposition or hide its
display.
To reposition or hide the water temperature display, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “9.DISPALY” and press the
MARK
key.
3.
Using the
or key, move to “1.TEMP.POSITION.”
4.
Press the
or key to move “DISP OFF” (hide),
(upper
left), or
(above depth position).
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP
10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH
:
RETURN TO F/F
MARK
:
GOTO SUB MENU
Main Menu 9. DISPALY
DISPLAY
1.TEMP.POSITON DISP OFF
2.INTERFERENCE OFF 1 2 AUTO
3.SCALE POSITION DISP OFF
4.FINE SCALE AUTO 1 2 5 10 20 50 100
▲ 5.VRM DISP OFF DISP ON
▼ 6.COLOR SAMP. DISP OFF DISP ON
7.DEPTH POSITION DISP OFF
8.SPLIT DISP.MODE
9.BTM/VRM EXP.AREA １／３ １／２ ALL
10.A-SCP MODE ＬＯＧ LINEAR
MARK
:
RETURN TO MENU
DISPLAY 1.TEMP.POSITION
