Customizing Colors to be Used (USER COLOR)
While the signal level colors and the background color of your fishfinding
display are selectable from four choices, you may customize these colors at
your option. Colors are composed of a mixture of R, G, B, or red, green, and
blue. You can customize colors by varying the percentage ratios of R, G, and
B.
To customize colors, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
Only the display color that been set with “6.BACK COLOR” or
“7.COLOR MODE” is varied. To change other colors, select the
background color of fishfinding display color with “6.BACK
COLOR” or “7.COLOR MODE” before performing the
operation described here.
2.
Using the
or key, move to “8.USER COLOR” and press
the
MARK
key.
3.
Press the
or key to choose the signal level (0 to 15) of the
color to change.
Signal level 0 denotes the background color. The current
percentage ratio of R, G, and B display in the right-hand side of
the submenu. Determine new ratio with reference to these values.
4.
Press the
or key to move R, G, or B.
5.
Using the
or key to alter the ratio.
6.
Repeat steps
4
and
5
to alter other ratios as needed.
7.
Repeat steps
3
through
6
to alter the colors of other signal levels as
needed.
8.
Press the
MARK
key to return to the main menu.
9.
Press the
GRAPH
key to return to the fishfinding display.

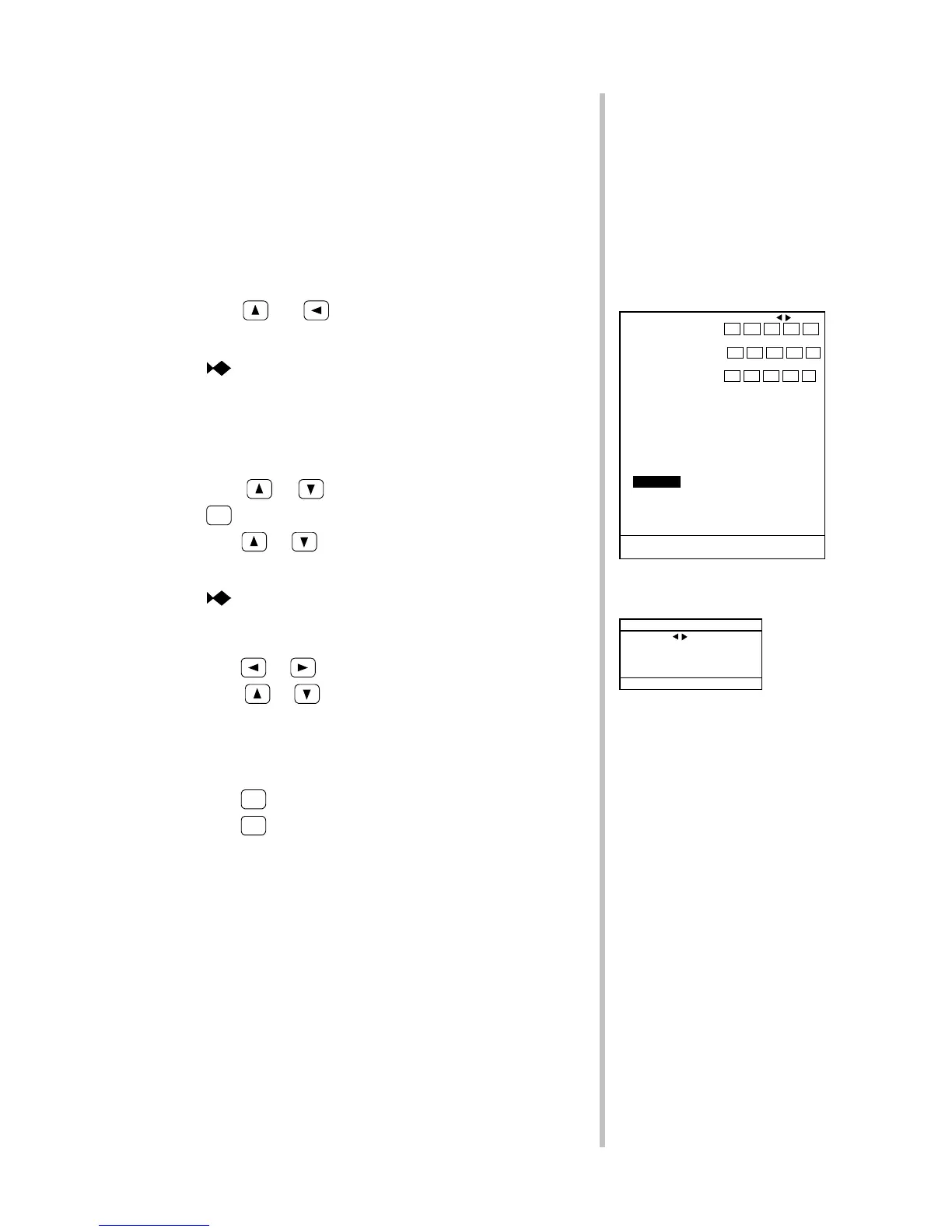

1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP 10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH : RETURN TO F/F
MARK : GOTO SUB MENU
Main Menu 8.USER COLOR
USER COLOR
PRESENT
LEVEL Ｒ Ｇ Ｂ Ｒ 0
▲ 0 0 2 7 Ｇ 2
▼ Ｂ 7
MARK : RETURN TO MENU
USER COLOR Submenu
