3.4 Remote Controller Functions
A remote controller NCH-466E is optionally available with the echo
sounder.
What You Can Do with the Remote Controller
The remote controller enables you to operate the sounder about 4 meters
apart. The record/replay function and the alarm function of the remote
controller allow you to record and reproduce fishfinding images and to
sound an audible alarm.
Connecting the Remote Controller
To connect the remote controller to the sounder, insert the cable extending
from the remote controller into the sounder’s rear-panel “REMOTE
CONTROL” connector.
Remote Controller Buttons and Functions
The remote controller buttons provide the following functions:
▲
RANGE
and
RANGE
▼
keys
Work the same way as the sounder’s
RANG
E
and
RANG
E
keys. (For directions
for use, refer to the Range Operations section of the instruction manual.)
These keys are also used to set the record/replay function and the alarm
function of the remote controller.
▲
SHIFT
and
SHIFT
▼
keys
If you are a JFC-130/130HP user, use these keys to shift a display range up
and down. Each time you press the
▲
SHIFT
or
SHIFT
▼
key, the range is shifted,
one level at a time. These keys work the same way as the sounder’s
SHIF
T
and
SHIF
T
keys.
These keys are also used to set the record/replay function and the alarm
function of the remote controller.
REC
PLAY
ALM
▲
SHIFT
SHIFT
▼
▲
RANGE
RANGE
▼
▲ CURSOR ▼
◄ ►

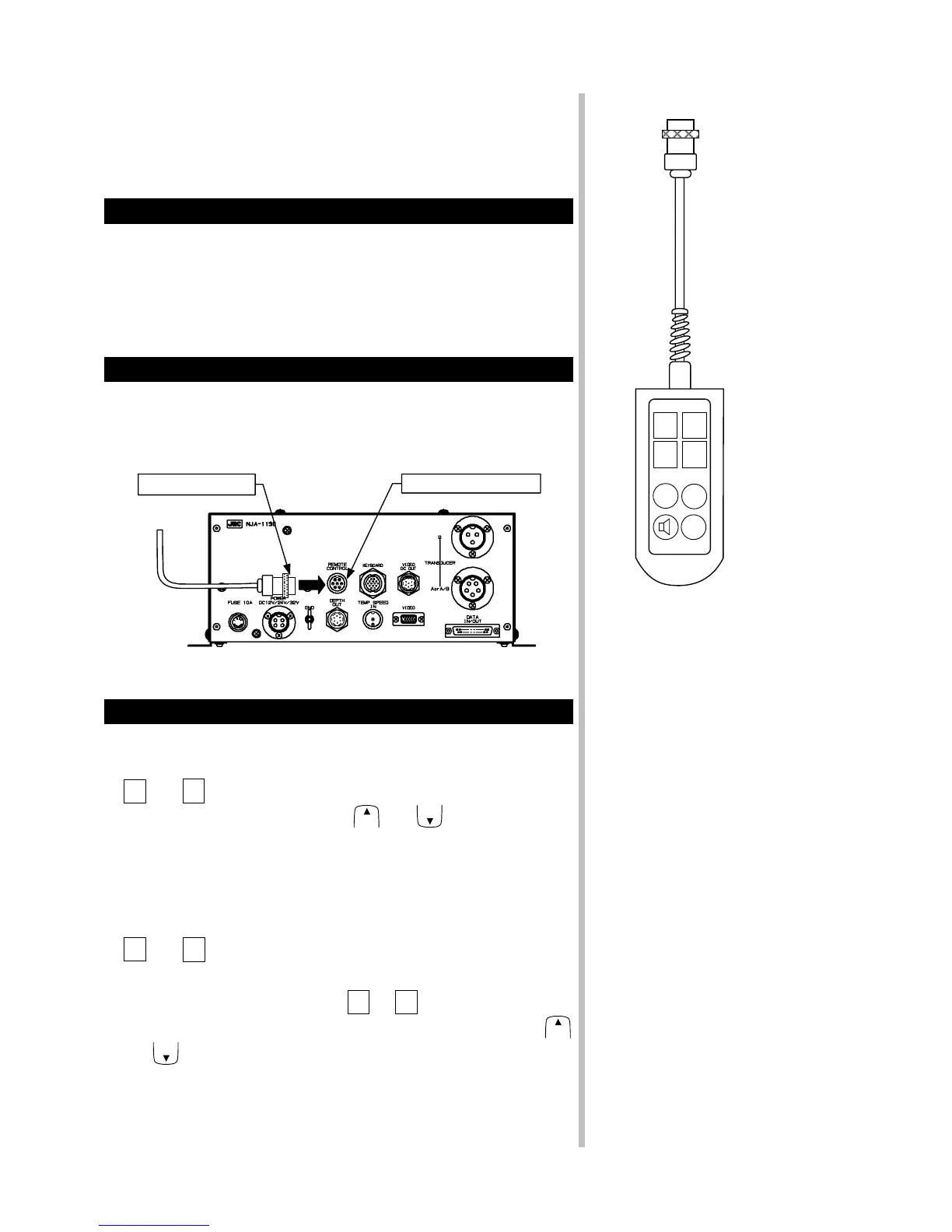

REMOTE CONTROLRemote controller
Remote controller front view
