Operation
36

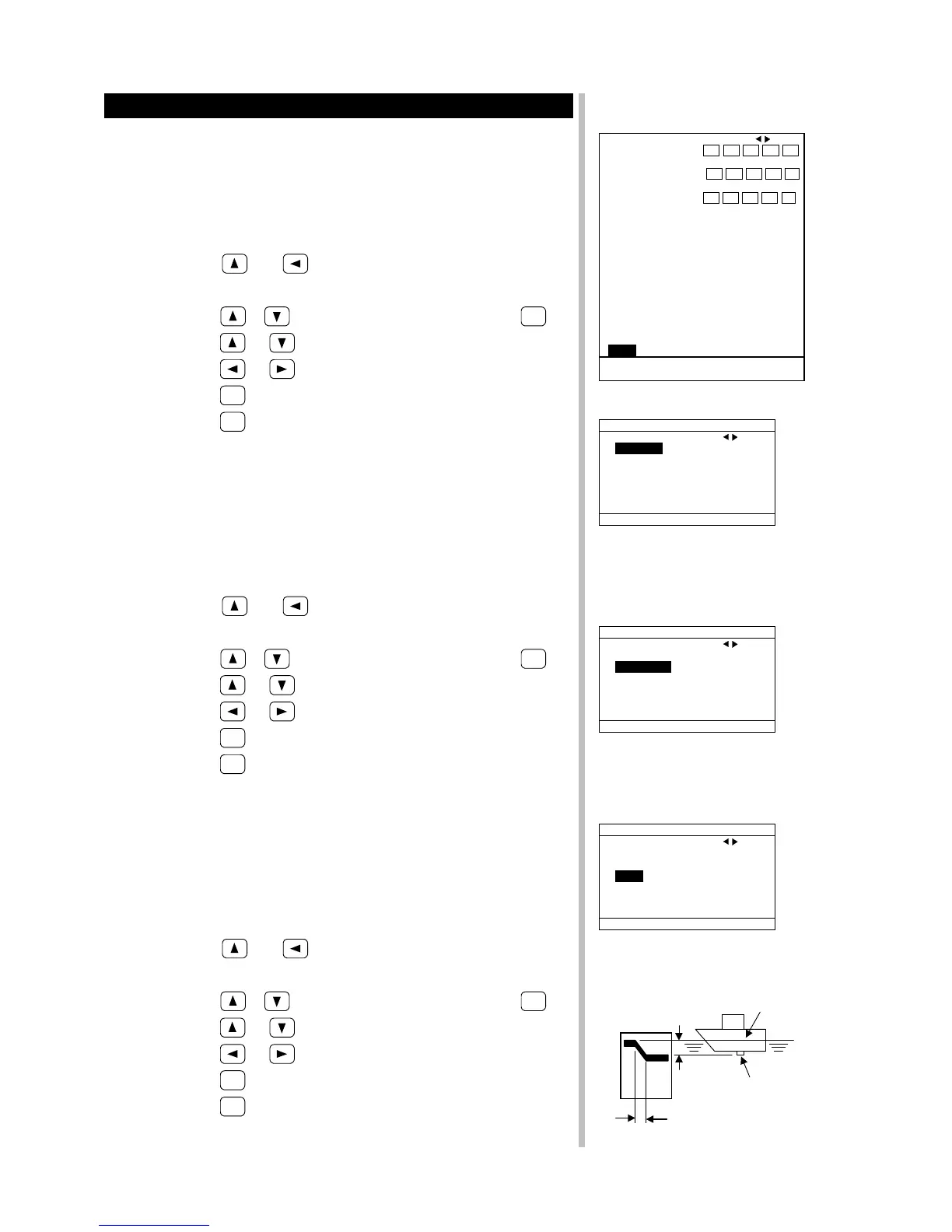

Unit Set up Operations (UNIT)
<
Changing the Depth Unit (DEPTH UNIT)
Three depth units are available for selection: the meter, feet, fathom, and
special. The special unit is a user-defined unit.
To change the depth unit, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or
key, move to “11.UNIT” and press the
MARK
key.
3.
Press the
or key, move to “1.DEPTH UNIT.”
4.
Press the
or key to move to the unit of your choosing.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
<
Customizing the Depth Unit (SPECIAL UNIT)
You can customize the water depth unit. Units can be set in range of 0.3 to
1.999m. A user-customized depth unit is called a special unit.
To customize the depth unit, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or
key, move to “11.UNIT” and press the
MARK
key.
3.
Press the
or key to move to “2.SPECIAL UNIT.”
4.
Press the
or key to set a value.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
<
Setting a Draft (DRAFT)
To measure the water depth in terms of its distance from the water surface,
set a draftvalue. Draftvalue can be set in a range of 0 to 20.0 units.
To set a draftvalue, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or
key, move to “11.UNIT” and press the
MARK
key.
3.
Press the
or key to move to “3.DRAFT.”
4.
Press the
or key to set a value.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP
10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH
:
RETURN TO F/F
MARK
:
GOTO SUB MENU
Main Menu 11.UNIT
UNIT
1.DEPTH UNIT ｍ ＦＴ ＦＡ ＳＰ
2.SPECIAL UNIT 1.000 ｍ／UNIT
▲ 3.DRAFT 0.0 ｍ
▼ 4.BELOW KEEL 0.0 ｍ
5.TEMP.UNIT ℃ ﾟF
6.AVERAGE OFF ON
MARK
:
RETURN TO MENU
UNIT 1.DEPTH UNIT
UNIT
1.DEPTH UNIT ｍ ＦＴ ＦＡ ＳＰ
2.SPECIAL UNIT 1.000 ｍ／UNIT
▲ 3.DRAFT 0.0 ｍ
▼ 4.BELOW KEEL 0.0 ｍ
5.TEMP.UNIT ℃ ﾟF
6.AVERAGE OFF ON
MARK
:
RETURN TO MENU
UNIT 2.SPECIAL UNIT
UNIT
1.DEPTH UNIT ｍ ＦＴ ＦＡ ＳＰ
2.SPECIAL UNIT 1.000 ｍ／UNIT
▲ 3.DRAFT 0.0 ｍ
▼ 4.BELOW KEEL 0.0 ｍ
5.TEMP.UNIT ℃ ﾟF
6.AVERAGE OFF ON
MARK
:
RETURN TO MENU
UNIT 3.DRAFT
Draft
Transducer
Sea surface
F/F display
DRAFT=0
adjusting DRAFT
done
