Operation
2
7
<

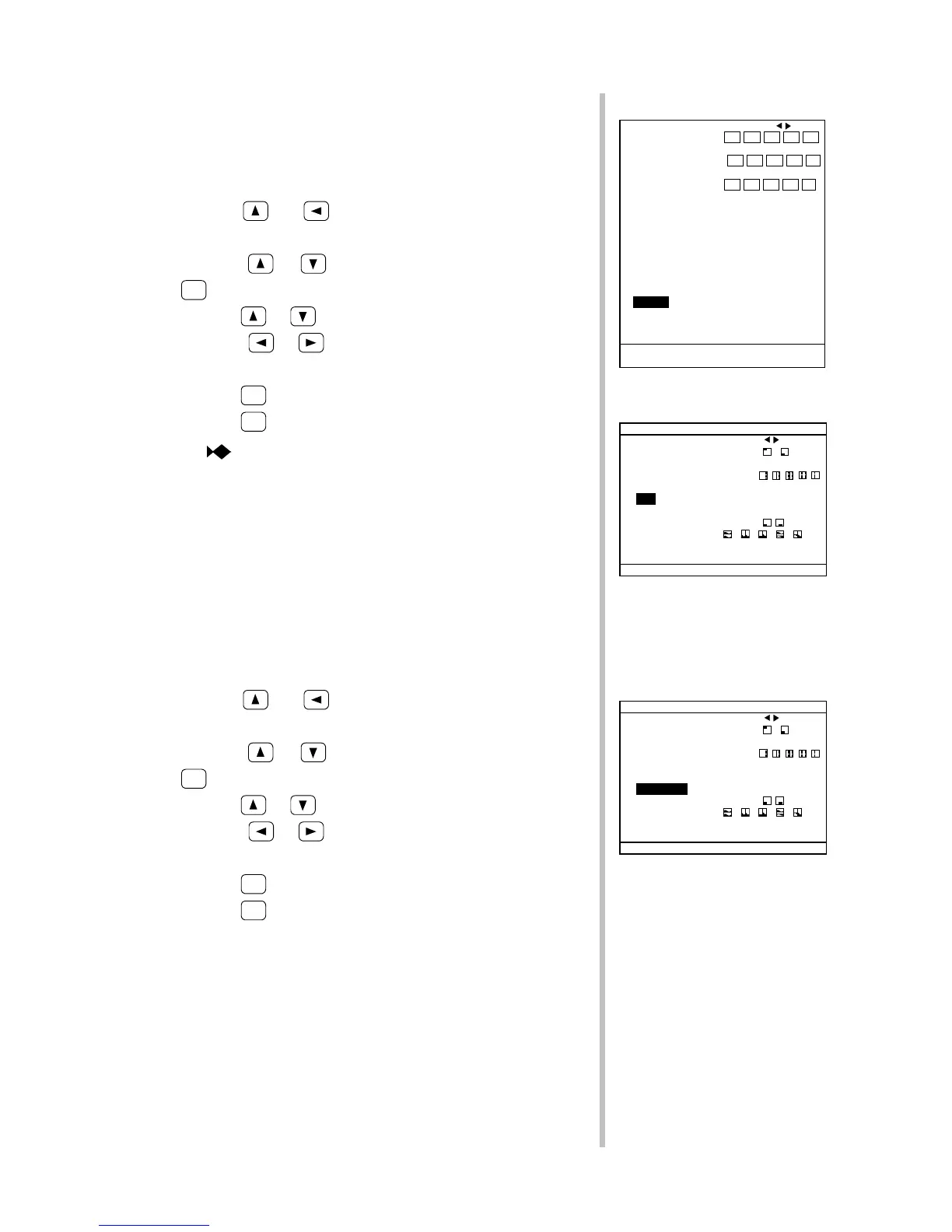

Displaying/Hiding the Cursor (VRM)
The cursor appearing onscreen can be hidden as needed.
To display or hide the cursor, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “9.DISPALY” and press the
MARK
key.
3.
Press the
or key to move to “5.VRM.”
4.
Press the
or key to move to “DISP OFF” (hide) or “DISP
ON” (display).
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
To narrow the range (for example, to 100 m) when the cursor is at
a deeper position (for example, 1000 m), the cursor will take time
to move. To move the cursor to a deep position to a shallow
position, widen the range first.
<
Displaying/Hiding the Color sample (COLOR SAMP.)
A sample of colors used in the display picture appears at the left-most end of
the screen. The color sample can be hidden as needed.
To display or hide the color sample, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “9.DISPALY” and press the
MARK
key.
3.
Press the
or key to move to “6.COLOR SAMP.”
4.
Press the
or key to move to “DISP OFF” (hide) or “DISP
ON” (display).
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
DISPLAY
1.TEMP.POSITON DISP OFF
2.INTERFERENCE OFF 1 2 AUTO
3.SCALE POSITION DISP OFF
4.FINE SCALE AUTO 1 2 5 10 20 50 100
5.VRM DISP OFF DISP ON
▼ 6.COLOR SAMP. DISP OFF DISP ON
7.DEPTH POSITION DISP OFF
8.SPLIT DISP.MODE
9.BTM/VRM EXP.AREA 1/3 1/2 ALL
10.A-SCP MODE LOG LINEAR
MARK
:
RETURN TO MENU
DISPLAY 5. VRM
1.PRESET STD RANGE ≫
10 20 30 40 50
RANGE 60 80 100 150 200
11 12 13 14
250 300 400 500 800
STEP
10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR
9.DISPLAY
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT
GRAPH
:
RETURN TO F/F
MARK
:
GOTO SUB MENU
Main Menu 9. DISPLAY
DISPLAY
1.TEMP.POSITON DISP OFF
2.INTERFERENCE OFF 1 2 AUTO
3.SCALE POSITION DISP OFF
4.FINE SCALE AUTO 1 2 5 10 20 50 100
▲ 5.VRM DISP OFF DISP ON
6.COLOR SAMP. DISP OFF DISP ON
7.DEPTH POSITION DISP OFF
8.SPLIT DISP.MODE
9.BTM/VRM EXP.AREA 1/3 1/2 ALL
10.A-SCP MODE LOG LINEAR
MARK
:
RETURN TO MENU
DISPLAY 6.COLOR SAMP.
