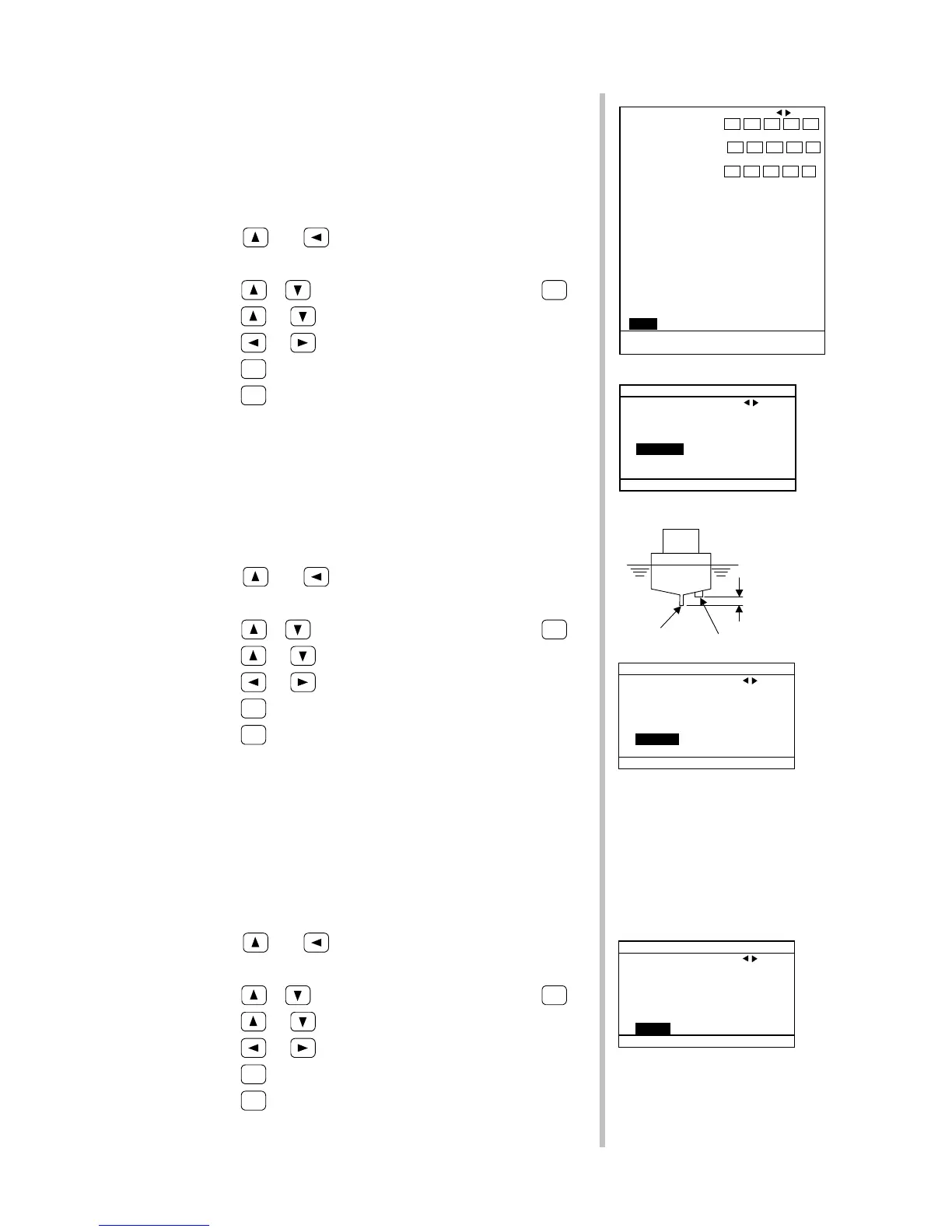

Displaying the depth from the keel (BELOW KEEL)
If you set the keel height of your boat as a keel height correction value, you
can display the depth from the keel to the sea bottom as a water depth.
To set a below-keel distance, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or
key, move to “11.UNIT” and press the
MARK
key.
3.
Press the
or key to move to “4.BELOW KEEL.”
4.
Press the
or key to set a value.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
<
Changing the Water Temperature Unit (TEMP.UNIT)
Either “°C”(Degree Centigrade) or “°F”(Degree Fahrenheit) is available as
the water temperature unit.
The water temperature unit can be changed using the following steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or
key, move to “11.UNIT” and press the
MARK
key.
3.
Press the
or key to move to “5.TEMP.UNIT.”
4.
Press the
or key to move the unit of your choosing.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
<
Smooth the Picture (AVERAGE)
The “AVERAGE” smoothes the picture and reduces the flicker of the screen.
The “AVERAGE” is normally set “ON.”
Select “OFF” when you would like to see more detail of the echo.
To change the average time, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or
key, move to “11.UNIT” and press the
MARK
key.
3.
Press the
or key to move to “6.AVERAGE.”
4.
Press the
or key to move to “OFF” or “ON."
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP
10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH
:
RETURN TO F/F
MARK
:
GOTO SUB MENU
Main Menu 11.UNIT
UNIT
1.DEPTH UNIT ｍ ＦＴ ＦＡ ＳＰ
2.SPECIAL UNIT 1.000 ｍ／UNIT
▲ 3.DRAFT 0.0 ｍ
▼ 4.BELOW KEEL 0.0 ｍ
5.TEMP.UNIT ℃ ﾟF
6.AVERAGE OFF ON
MARK
:
RETURN TO MENU
UNIT 4.BELOW KEEL
UNIT
1.DEPTH UNIT ｍ ＦＴ ＦＡ ＳＰ
2.SPECIAL UNIT 1.000 ｍ／UNIT
▲ 3.DRAFT 0.0 ｍ
▼ 4.BELOW KEEL 0.0 ｍ
5.TEMP.UNIT ℃ ﾟF
6.AVERAGE OFF ON
MARK
:
RETURN TO MENU
UNIT 5.TEMP.UNIT
UNIT
1.DEPTH UNIT ｍ ＦＴ ＦＡ ＳＰ
2.SPECIAL UNIT 1.000 ｍ／UNIT
▲ 3.DRAFT 0.0 ｍ
▼ 4.BELOW KEEL 0.0 ｍ
5.TEMP.UNIT ℃ ﾟF
6.AVERAGE OFF ON
MARK
:
RETURN TO MENU
UNIT 5.AVERAGE
Keel height
Keel
Transducer
