Operation
28
<

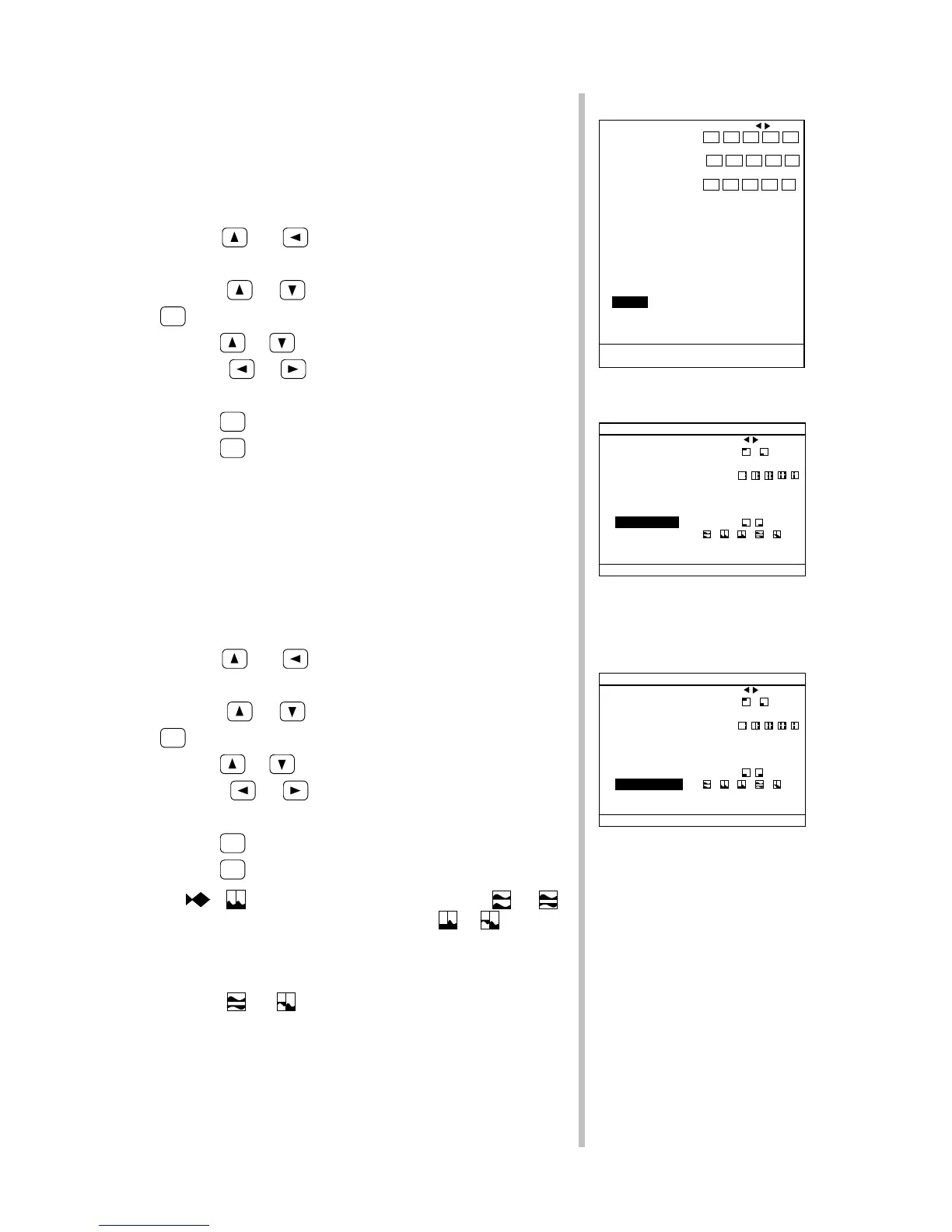

Repositioning/Hiding the Bottom Depth Display (DEPTH POSITION)
The depth display appears onscreen. If its position interferes with the sight
of the display image, you can reposition or hide its display.
To reposition or hide the depth display, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “9.DISPALY” and press the
MARK
key.
3.
Press the
or key to move to “7.DEPTH POSITION.”
4.
Press the
or key to move to “DISP OFF” (hide) or any
one of the two display positions.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
<
Changing the mode of Split Display
(Vertical/Horizontal/Expanded split Display)(SPLIT DISP.MODE)
You can change the mode of split display to produce a vertically or
horizontally split display.
To change the mode of split display, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “9.DISPALY” and press the
MARK
key.
3.
Press the
or key to move to “8.SPLIT DISP.MODE.”
4.
Press the
or key to move to any one of the five split
modes (see table on the next page).
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
denotes a standard vertically split display, or , a
standard horizontally split display, and
or , an expanded
vertically split display (only single frequency).
A dual-frequency expanded split display appears in a vertically
split format, regardless of the position setting.
and denotes expanded sea bottom display overlaid with
a bottom discrimination display.
DISPLAY
1.TEMP.POSITON DISP OFF
2.INTERFERENCE OFF 1 2 AUTO
3.SCALE POSITION DISP OFF
4.FINE SCALE AUTO 1 2 5 10 20 50 100
▲ 5.VRM DISP OFF DISP ON
▼ 6.COLOR SAMP. DISP OFF DISP ON
7.DEPTH POSITION DISP OFF
8.SPLIT DISP.MODE
9.BTM/VRM EXP.AREA １／３ １／２ ALL
10.A-SCP MODE ＬＯＧ LINEAR
MARK
:
RETURN TO MENU
DISPLAY 7. DEPTH POSITION
1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP
10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH
:
RETURN TO F/F
MARK
:
GOTO SUB MENU
Main Menu 9. DISPLAY
DISPLAY
1.TEMP.POSITON DISP OFF
2.INTERFERENCE OFF 1 2 AUTO
3.SCALE POSITION DISP OFF
4.FINE SCALE AUTO 1 2 5 10 20 50 100
▲ 5.VRM DISP OFF DISP ON
▼ 6.COLOR SAMP. DISP OFF DISP ON
7.DEPTH POSITION DISP OFF
8.SPLIT DISP.MODE
9.BTM/VRM EXP.AREA １／３ １／２ ALL
10.A-SCP MODE ＬＯＧ LINEAR
MARK
:
RETURN TO MENU
DISPLAY 8.SPLIT DISP.MODE
To Next Page
