Varying a Range Automatically (AUTO)
You can have a range varied automatically to display the sea bottom at all
times, without having to manually press the
RANG
E
and
RANG
E
keys.
To let a range vary itself automatically, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “5.STD RANGE MODE.”
3.
Using the
or key, move to “AUTO.”
4.
Press the
GRAPH
key to return to the fishfinding display.
<
Varying a Range in Steps (STEP Range)
Each time you press the
RANG
E
or
RANG
E
key, the display range is varied in
units of a preset step value (see next item).
To use a step range, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
Using the
or key, move to “5.STD RANGE MODE.”
3.
Using the
or key, move to “STEP.”
4.
Press the
GRAPH
key to return to the fishfinding display.
<
Varying a Step Value (STEP Setting)
While each step value is preset, it may be varied.
To vary a step value, follow these steps:
1.
Press the
and keys at the same time to call up the main
menu.
2.
If the cursor is at any position other than “1.PRESET STD RANGE,”
use the
or key to move to “1.PRESET STD RANGE” and
press the
MARK
key.
3.
Using the
or key, move to “STEP.”
4.
Using the
or key, increase or decrease the step value.
5.
Press the
MARK
key to return to the main menu.
6.
Press the
GRAPH
key to return to the fishfinding display.
This step value serves also as a shift step (see page 24).

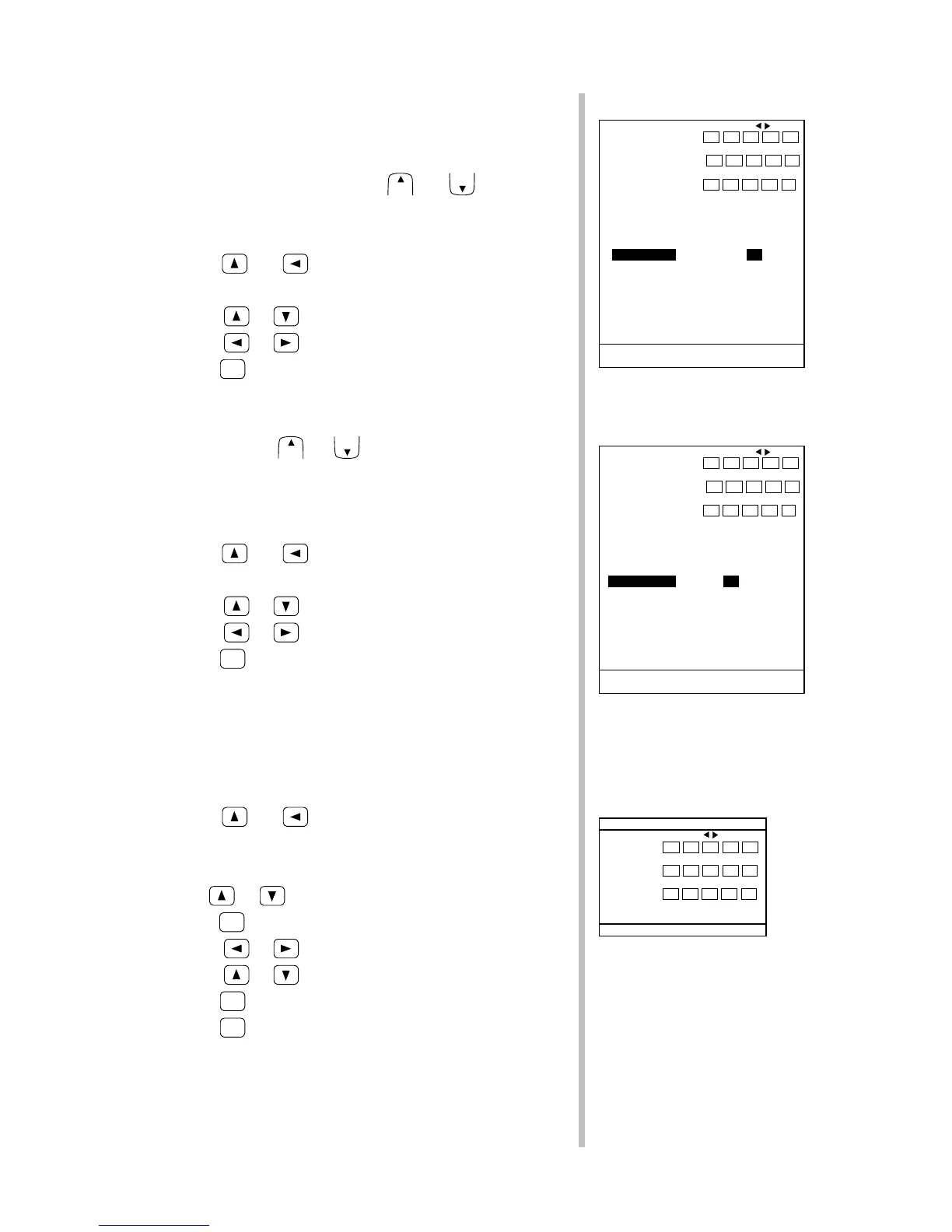

1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP 10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH : RETURN TO F/F
MARK : GOTO SUB MENU
Main Menu
1.PRESET STD RANGE ≫ １ ２ ３ ４ ５
10 20 30 40 50
６ ７ ８ ９ １０
RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP 10
▲ 2.BTM EXP.RANGE ≫ 2 3 4 5 10
▼ 3.B.DISCRIM RANGE ≫ 10 20 30 40 50
4.VRM EXP.RANGE ≫ 5 10 15 20 50
5.STD RANGE MODE PRESET STEP AUTO
6.BACK COLOR NORMAL 1 2 3
7.COLOR MODE NORMAL 1 2 3
8.USER COLOR ≫
9.DISPLAY ≫
10.SET GRAPH ≫ DEPTH/ DEPTH/
TEMP BH
11.UNIT ≫
GRAPH : RETURN TO F/F
MARK : GOTO SUB MENU
Main Menu 5.STD RANGE MODE
PRESET STD RANGE
１ ２ ３ ４ ５
10 20 30 40 50
▲ ６ ７ ８ ９ １０
▼ RANGE 60 80 100 150 200
１１ １２ １３ １４ １５
250 300 400 500 800
STEP 10
MARK : RETURN TO MENU
PRESET STD RANGE
