JRC JFC-130 User Manual

Operation
39

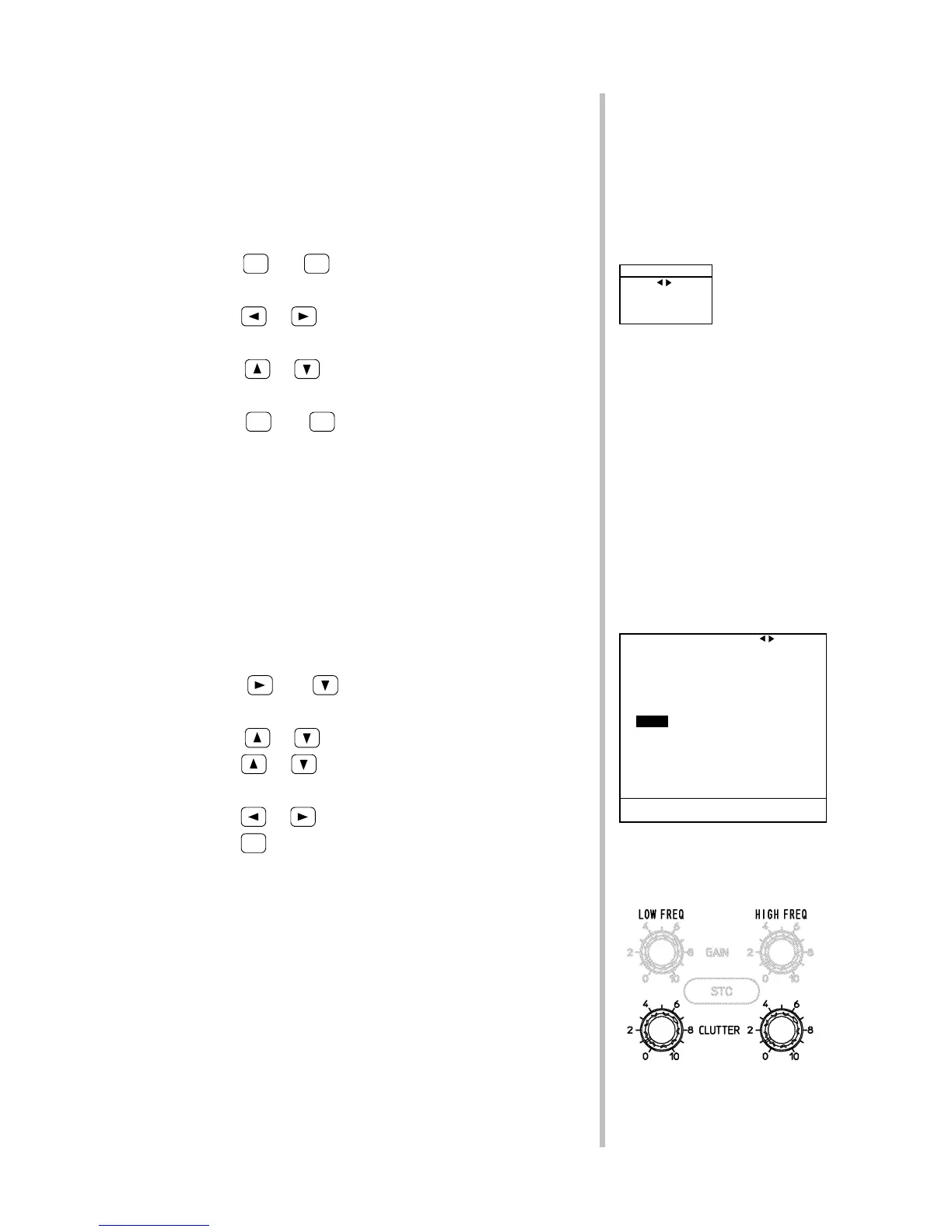

l Adjusting Nearby Gains by Setting the STC ADJUST
The STC ADJUST menu control the gains of 3 feet (1 meter) below the
transducer. This is effective with the transducer type CFT-2505KD. With
other transducer, normally set the value to 0.
To change the STC ADJUST, follow these steps:
1.
Press the
MARK
and
GRAPH
keys at the same time to call up the STC
ADJUST menu.
2.
Press the
or key to move to “HI FRQ” (high frequency) or
“LO FRQ”(low frequency).
3.
Using the
or key to alter the value.
4.
Repeat steps
2
and
3
to alter the other frequency as needed.
5.
Press the
MARK
and
GRAPH
keys at the same time to return to the
fishfinding display.
l Adjusting Gains by Setting the PDC (Transmitter Output)
If satisfactory gains are not attained by adjusting the [GAIN] or [STC]
controls, try to change the PDC (transmitter output). Four PDC settings are
selectable, A being lowest output and D being highest output. Normally, use
the PDC at position D.
To change the PDC, follow these steps:
1.
Press the
and keys at the same time to call up the
fishfinding menu.
2.
Using the
or key, move to “7.PDC.”
3.
Press the
or key to move to “HI FRQ” (high frequency) or
“LO FRQ”(low frequency).
4.
Press the
or key to move to the output of your choosing.
5.
Press the
GRAPH
key to return to the fishfinding display.
<
Suppressing Noise ([CLUTTER] control)
Use the [CLUTTER] controls to remove fine noise across the screen that
cannot be removed by adjusting the STC. Two [CLUTTER] controls are
available, one for suppressing high-frequency noise and the other for
suppressing low-frequency noise. Turn the [CLUTTER] controls as
appropriate to suppress screen noise.
The setting “0” disables noise suppression. Normally, use the [CLUTTER]
controls at position 3.
1.COLOR REJ. ≫
2.WHITE LINE ≫ LO FRQ OFF HI FRQ OFF
3.ADJUST FREQ. ≫ LO FRQ 50.0 HI FRQ 200.0
4.TX PULSE WIDTH LONG SHORT
5.TX CYCLE MODE SYNC. ASYNC.
▲ 6.ADJUST TX CYCLE 0
▼ 7.ＰＤＣ HI FRQ Ａ Ｂ Ｃ Ｄ
LO FRQ Ａ Ｂ Ｃ Ｄ
8.ADC MODE BLU 1 2 3 4 5 STD 7 8 RED
9.STC MODE 50 100 150 200 (m)
10.EXT INPUT DISP OFF DISP ON
11.SIG.PROCESS OFF 1 2
12.SCROLL STEP 1 2 3
GRAPH : RETURN TO F/F
MARK : GOTO SUB MENU≫
Fishfinding Menu 7.PDC MODE
STC ADJUST
LO FRQ HI FRQ
▲ 40 40
▼
STC ADJUST Menu
