6.3.1. DC12/24V DATA connector
表示器 背面
Terminal Number
(CFQ-5766)
Name Explanation
1 Red
DC12/24V
DCIN +
Connect the accessory power cable.
The power-supply voltage range is 10.8 to 31.2 VDC.
2 Black DCIN -
3 Orange
Contact
Output
ALM_COM
Output contact signals
4 Yellow ALM_NO
5 Green ALM_NC
6 Blue
Contact Input
Analog Input
ACK_IN+
Input contact signal or external dimmer.
7 Purple ACK_IN-
8 Gray Serial
Transmission
(DATA I/O 1)
SD0-A Input and output to the specifications set by “DATA
IN/OUT1.”
9 White SD0-B
10 Pink Serial
Transmission
(DATA I/O 2)
SD3-A Input and output to the specifications set by “DATA
IN/OUT2.”
11 Sky blue SD3-B
12 Bright
green
Serial
Transmission
(DATA I/O 3)
SD6-A
Input and output to the specifications set by “DATA
IN/OUT3.”
13 Brown SD6-B
14 Black
(Shield)
Chassis
Earth
E
Chassis earth

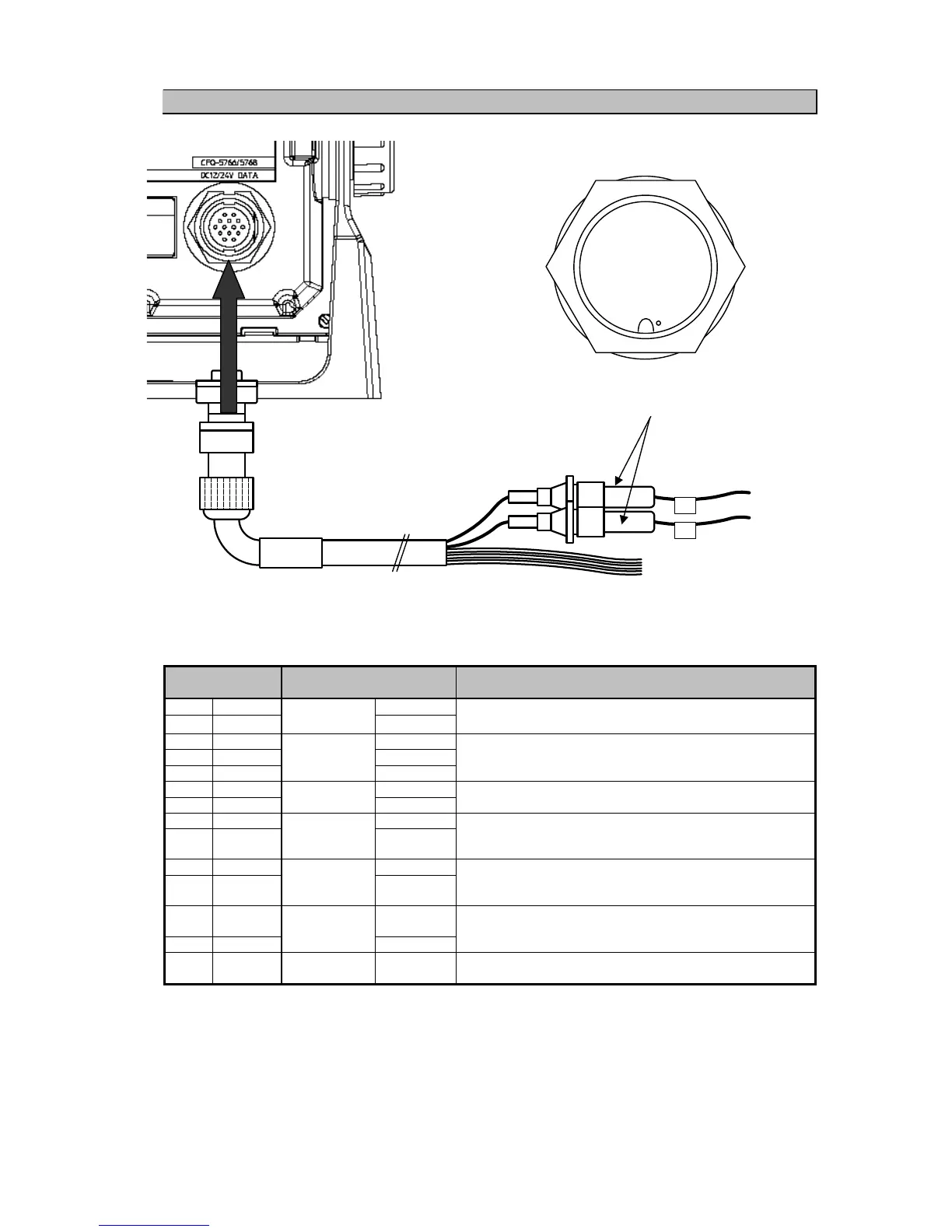

CFQ5766
1A
1A
+
-
Red
Black
Fuse Holder
(Containing 1A Fuses)
Data Power Cable
CFQ-5766A: 2 m (Accessory)
CFQ-5766D: 10 m (Option)
CFQ-5766F: 20 m (Option)
14 13
12 11 10
9 8 7 6
5 4 3
2 1
Display Unit Rear:
Connector Pin Number
