6-11
[Input/Output Condition for Serial Transmission]
The data power cable (CFQ-5766) has three serial transmission channels.
The input/output settings for DATA I/O "1" and "2" are linked to each other.
As listed below, four connections and settings can be made.
For the input/output settings for channels, see "4.9.5 Setting a serial port".
Terminal Number
(CFQ-5766)
Name
Input/Output Condition
3ch
Input
2ch Input
1ch Output
1ch Input
2ch Output
3ch Output
8 Gray
Serial
Transmission
(DATA I/O 1)
SD0-A
Input Input Output Output
9 White SD0-B
10 Pink Serial
Transmission
(DATA I/O 2)
SD3-A
11 Sky blue SD3-B
12 Bright green Serial
Transmission
(DATA I/O 3)
SD6-A
Input Output Input Output
13 Brown SD6-B
データ電源ケーブル
CFQ-5766A ： 2m （付属品）
CFQ-5766D ： 10ｍ （オプション）
CFQ-5766F ： 20ｍ （オプション）
CFQ5766
1A
1A
+
-

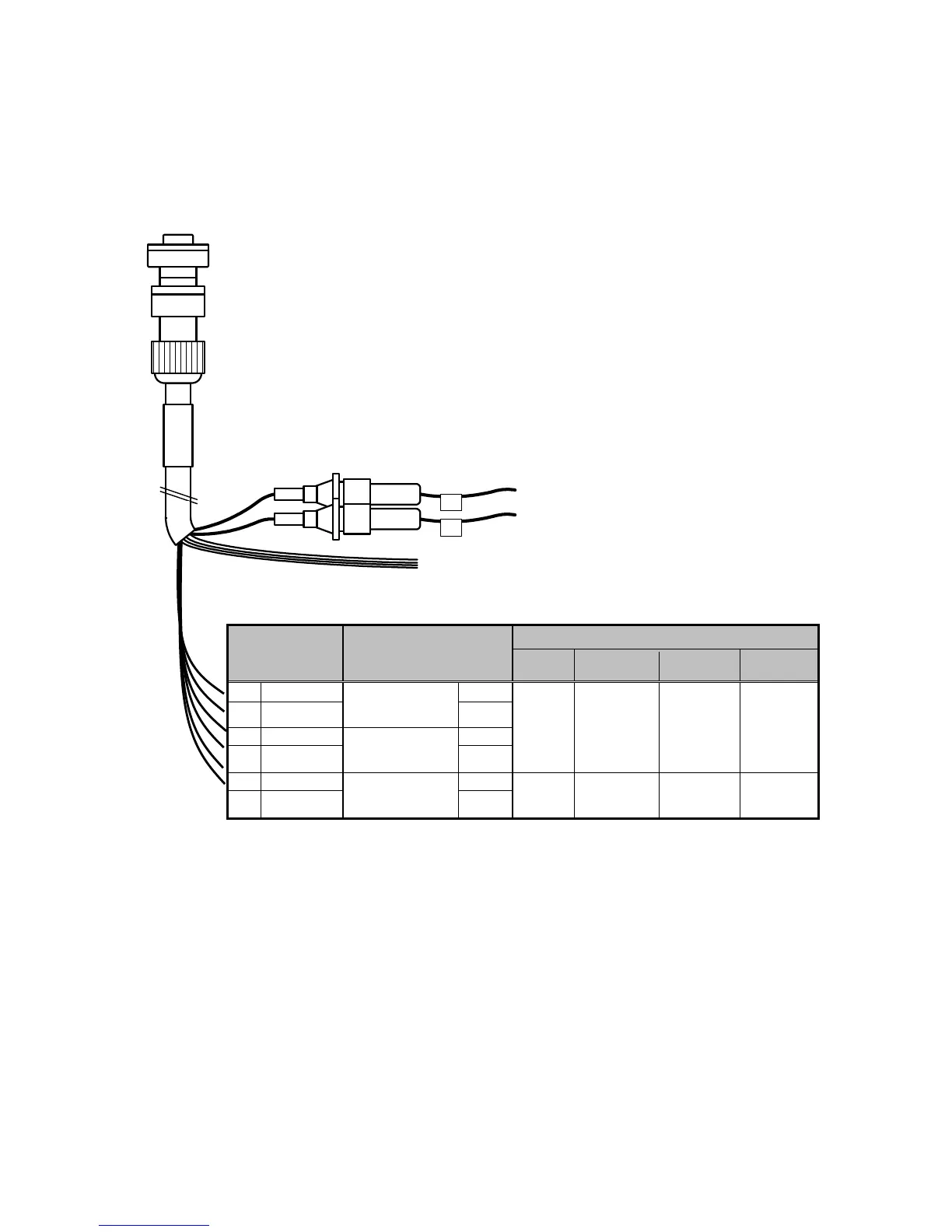

Data Power Cable
CFQ-5766A: 2 m (Accessory)
CFQ-5766D: 10 m (Option)
CFQ-5766F: 20 m (Option)
