– 102 –

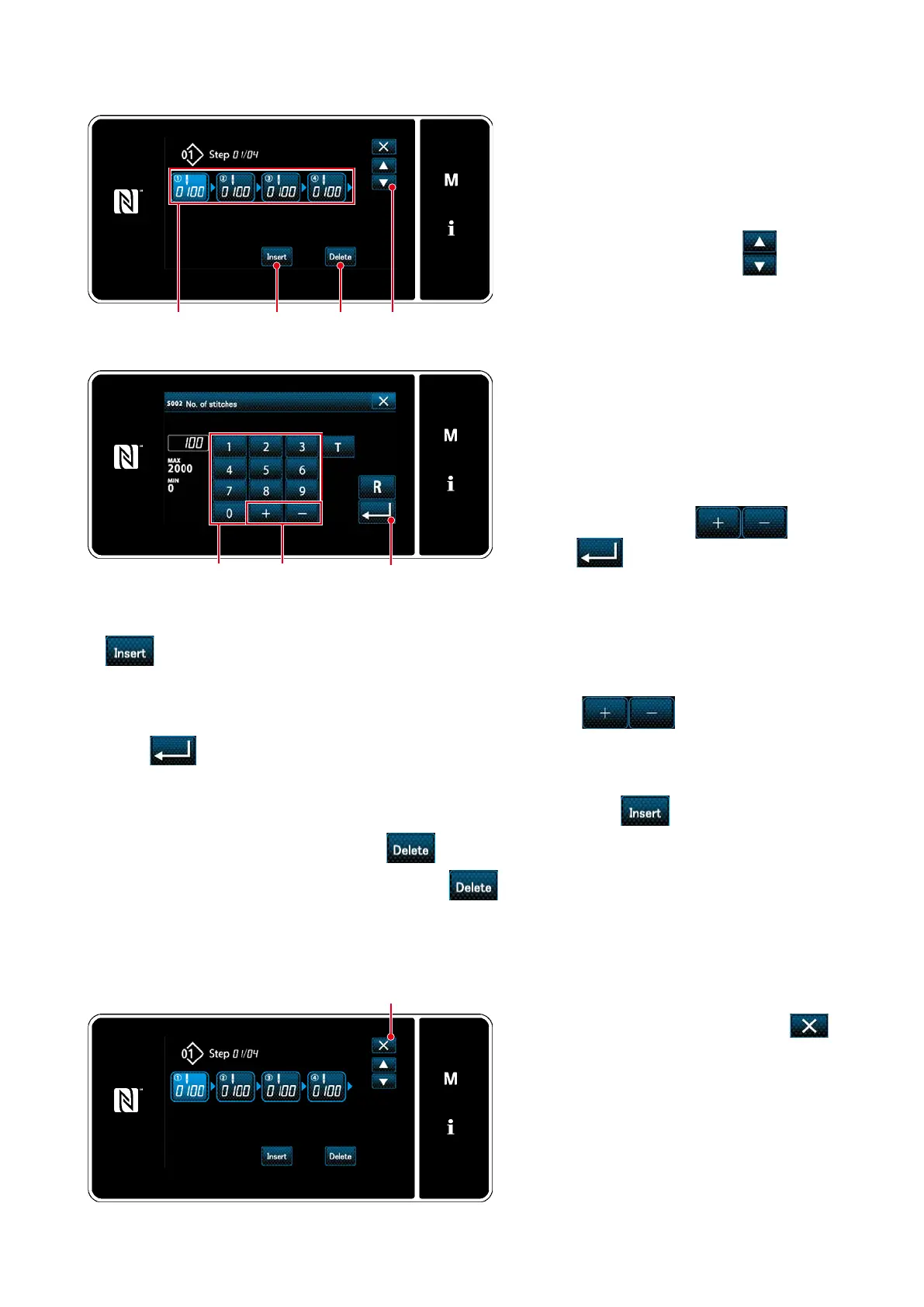

<Polygonal-shape stitching step edit screen>
②
Editing the number of steps of a polygonal-shape stitching pattern and the number of stitches of a
new pattern
1. The number of stitches (0 to 2000) for a
step is displayed in
❷
.
Press
❷
to place the number of stitches in
the selected state.
The screen returns to the previous one or
advances to the next one with
❺
.
❷ ❸ ❹ ❺
❻ ❼
❽
3. A previous step and a step consisting of 100 stitches are inserted ahead of the selected step by pressing
❸
.
"Number of stitches input screen" is displayed by pressing the inserted button.
Enter the number of stitches for the step with numeric keypad
❻
and
❼
.
Press
❽
to conrm the setting.
Refer to
"4-2-8. Teaching function" p.48 for the teaching function.
* In the case the maximum number of steps has already been registered,
❸
is not displayed.
4. The selected step is deleted by pressing
❹
.
* In the case only one step has been registered,
❹
is not displayed.
③
Conrming the data on the created sewing pattern
<Polygonal-shape stitching step edit screen>
❾
The operation is completed by pressing
❾
. Then, the current screen returns to the
sewing screen under the maintenance person-
nel mode.
<Number of stitches input screen>
2. In the case a step(s) can be additionally
registered in the pattern, a step consisting
of zero (0) stitch is displayed at the tail end.
"Number of stitches input screen" is displayed
by pressing a step consisting of zero (0) stitch.
Enter the number of stitches for the step with
numeric keypad
❻
and
❼
.
Press
❽
to conrm the setting.
To Next Page
