⑧ No.09 Output check
1. Select an output to check.

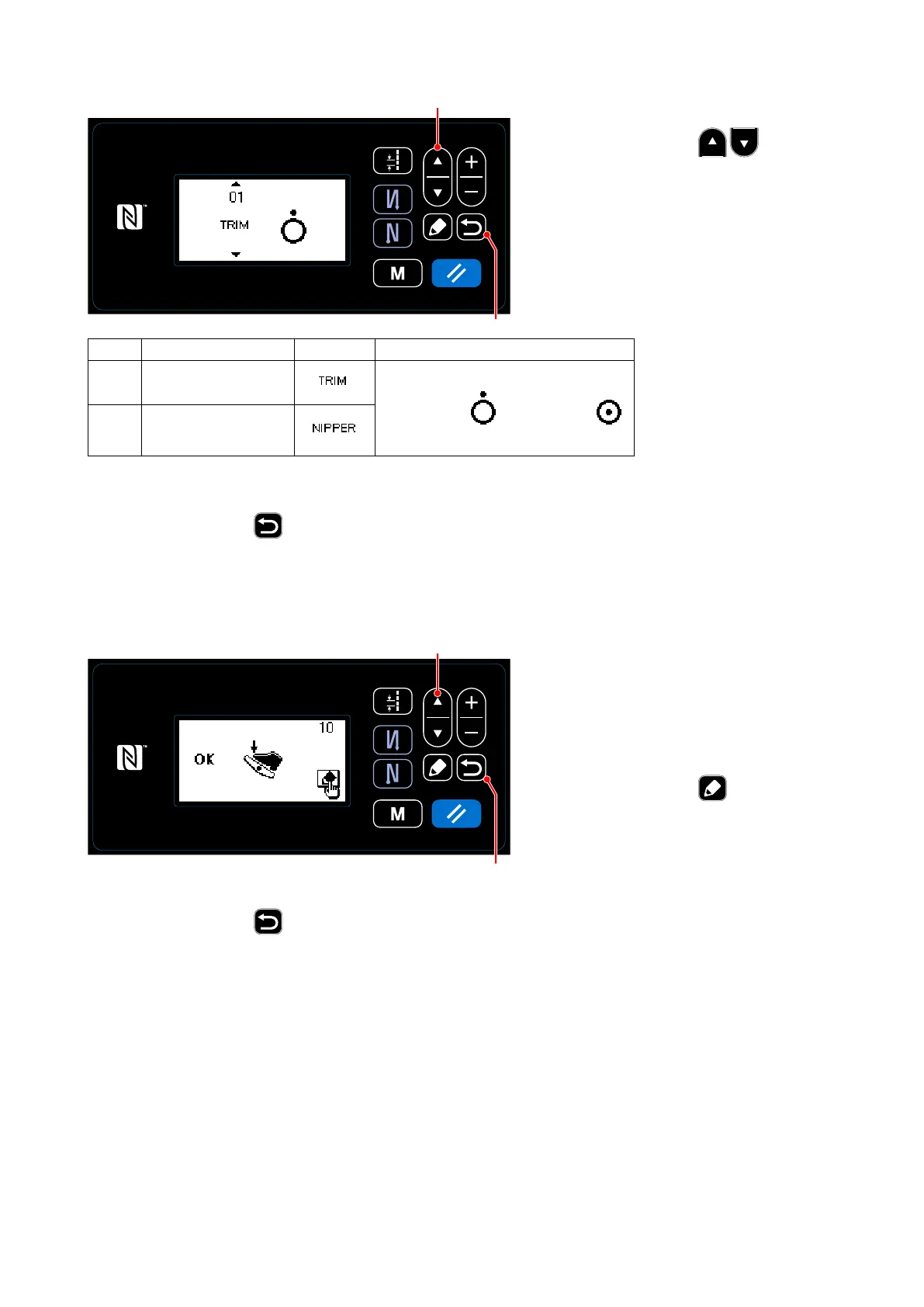

No. Output name Display Status
01
Thread trimming
solenoid
Out put OFF Out put ON
02 Thread presser
* When the origin retrieval is not performed, a thread trimming solenoid does not operate.
2. Complete an output check.
When you press the ❻, the current screen returns to the selection screen of a check program.
* When a needle bar is not at the upper position, the thread trimming solenoid does not operate.
❶
When you press the ❶, you
can select an output to check.
The outputs that can be selected are as
follows:
❶
1．As shown in the gure on the left, when
it is properly corrected, it will be dis-
played "OK" and the correction value.
（Correction value of the left gure "10"
is a reference value）
2. When you press the ❺ to conrm
the correction value and return to the
selection screen of a check program.
❻
❻
⑩ Complete a compensation of neutral point of the pedal sensor.
When you press the ❻, the current screen returns to the selection screen of a check program.
(Caution) At this time, the pedal sensor does not work properly if the pedal is depressed. Warning
sound "blips" and the correct compensation value is not displayed.
