JUKI DDL-9000C-S Series User Manual

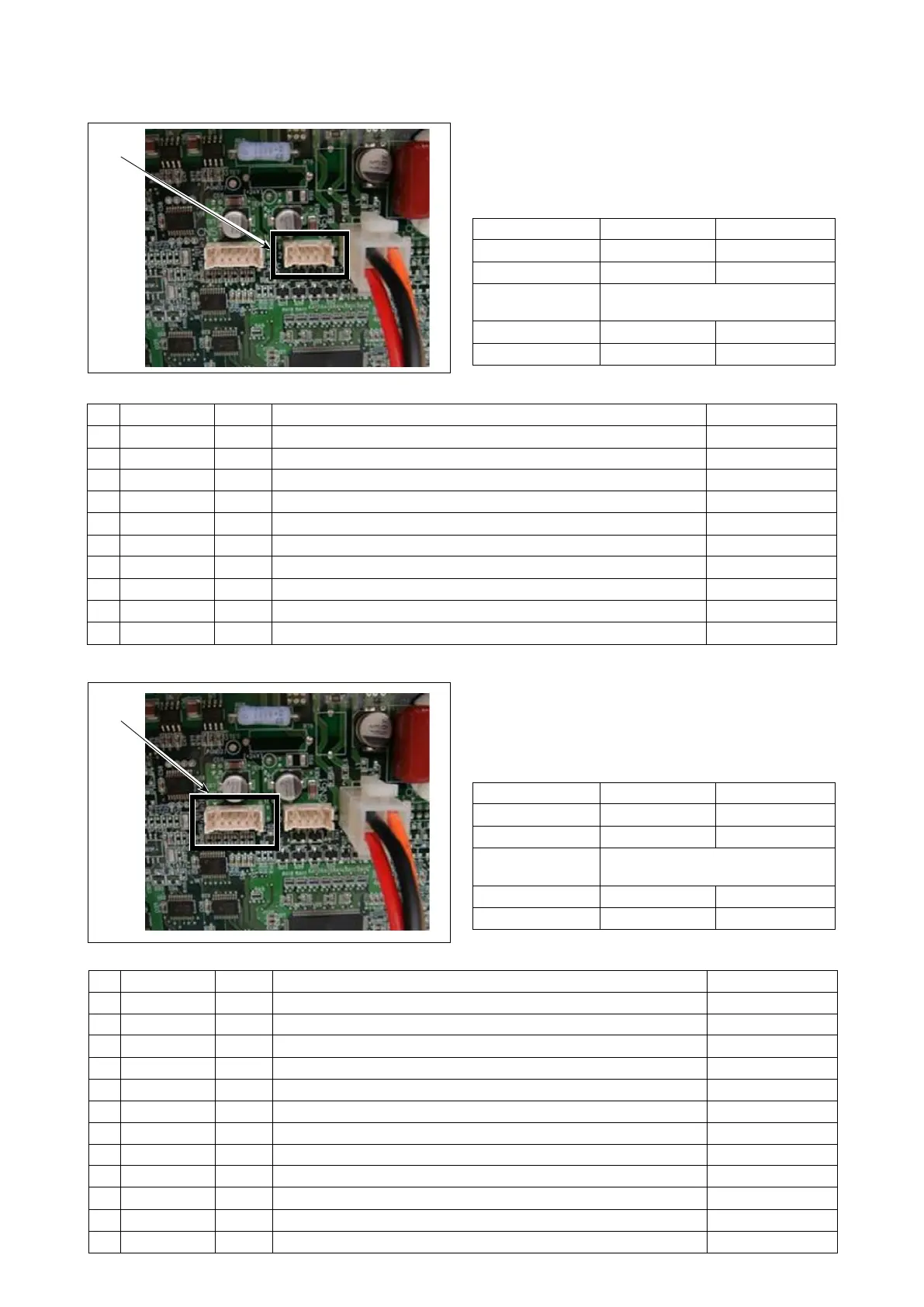

2. Description of an optional connector
❷
❶ Optional output connector (CN61)
❷ Optional Input-output connector (CN51)
No. Name of signals I/O Description Electrical specication
1 +24V --- Power supply
2 OP�01 Output No function settings and optional output: No.9 and default: COOL DC24V
3 +24V --- Power supply
4 OP�02 Output No function settings and optional output: No.10 and default: NOP DC24V
5 +24V --- Power supply
6 OP�03 Output No function settings and optional output: No.11 and default: NOP DC24V
7 +24V --- Power supply
8 OP�04 Output No function settings and optional output: No.12 and default: NOP DC24V
9 +24V --- Power supply
10 GND --- 0V
Suitable connectors
Suitable connectors
Allocation table of signals for the connector (CN61)
No. 1 2
Part number HK063610100 HK075230000
Name of products
Housing（10p)
Pin contact
Name of
manufacturers
J.S.T. MFG. CO., LTD.
(Japan Solderless Terminal)
Manufacturers’ model PHDR10VS SPHD-001T-P0.5
Remark AWG22-26
❶
It is used when you connect it to a solenoid valve
and so on. For suitable connectors, refer to the
following table.
It is possible to use as the destination to connect a
sensor on the market or the destination to output
a timing signal of a sewing machine.
No. Name of signals I/O Description Electrical specication
1 +24V
--- Power supply
2 +5V
--- Power supply
3 OPOUT5
Output No function settings and optional output: No.1 and default: COOL DC5V
4 OPOUT6
Output No function settings and optional output: No.2 and default: COOL DC5V
5 OPOUT7
Output No function settings and optional output: No.3 and default: COOL DC5V
6 OPOUT8
Output No function settings and optional output: No.4 and default: COOL DC5V
7 OPIN1
Input No function settings and optional input: No.1 and default: COOL DC5V, −5mA
8 OPIN2
Input No function settings and optional input: No.2 and default: COOL DC5V, −5mA
9 OPIN3
Input No function settings and optional input: No.3 and default: COOL DC5V, −5mA
10 OPIN4
Input No function settings and optional input: No.4 and default: COOL DC5V, −5mA
11 GND
--- 0V
12 GND
--- 0V
No. 1 2
Part number HK063610120 HK075230000
Name of products
Housing（12p)
Pin contact
Name of
manufacturers
J.S.T. MFG. CO., LTD.
(Japan Solderless Terminal)
Manufacturers’ model PHDR10VS SPHD-001T-P0.5
Remark AWG22-26
Allocation table of signals for the connector (CN51)
– 132 –
