JUKI DDL-9000C-S Series User Manual

Suitable connectors
No. 1 2
Part number HK063610080 HK075230000
Name of products
Housing（8p)
Pin contact
Name of
manufacturers
J.S.T. MFG. CO., LTD.
(Japan Solderless Terminal)
Manufacturers’ model PHDR8VS SPHD-001T-P0.5
Remark AWG22-26
It is used when you connect it to a solenoid valve
and so on. For suitable connectors, refer to the
following table.

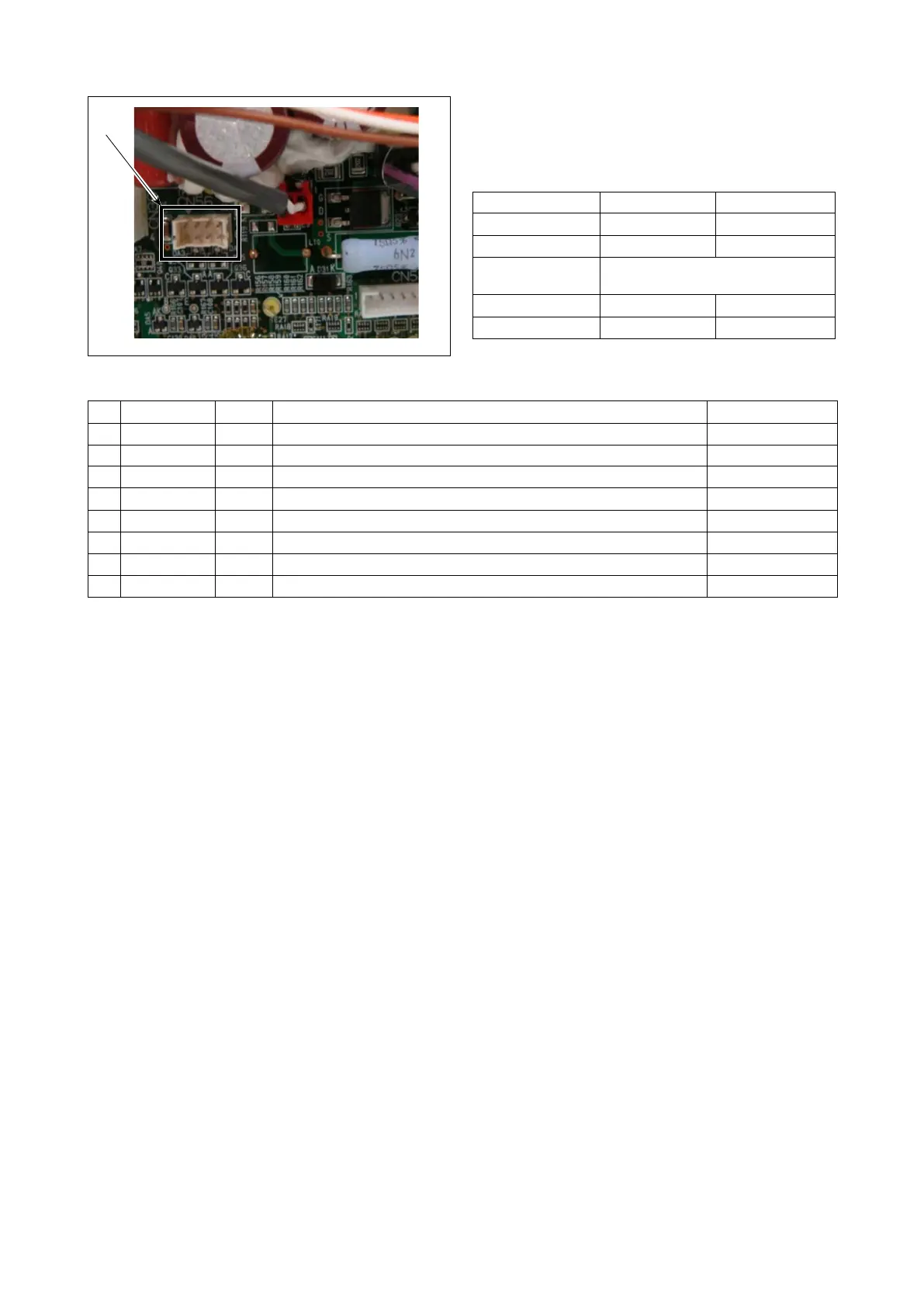

❶ Optional output connector (CN56)
❹
No. Name of signals I/O Description Electrical specication
1 +24V --- Power supply
2 NBN1 Output No function settings and optional output: No.5 and default: NOP DC24V
3 +24V --- Power supply
4 NBN2 Output No function settings and optional output: No.6 and default: NOP DC24V
5 +24V --- Power supply
6 NBN3 Output No function settings and optional output: No.7 and default: NOP DC24V
7 +24V --- Power supply
8 NBN4 Output No function settings and optional output: No.8 and default: NOP DC24V
Allocation table of signals for the connector (CN56)
– 135 –
