2. Connector for a sewing machine for standing work (for the PK70)
It is used when you use the pedal for a sewing machine for standing work on the market (of a switch
system).To connect it to the sewing machine, you are recommend to use the relay cord A assembly for a
sewing machine for standing work, which is made by JUKI and supplied as an option.
When you buy a connector separately, arrange a
connector for the following use.
○ Connector for the pedal of a sewing machine for standing work for a PSC box
Insert it into (the connector ❸ CN39) to use it.
(Caution) When you slow down a high-speed SW, make settings for limiting the maximum speed on the opera-
tion panel.
A
1
1112
Approx. 1.5m
2

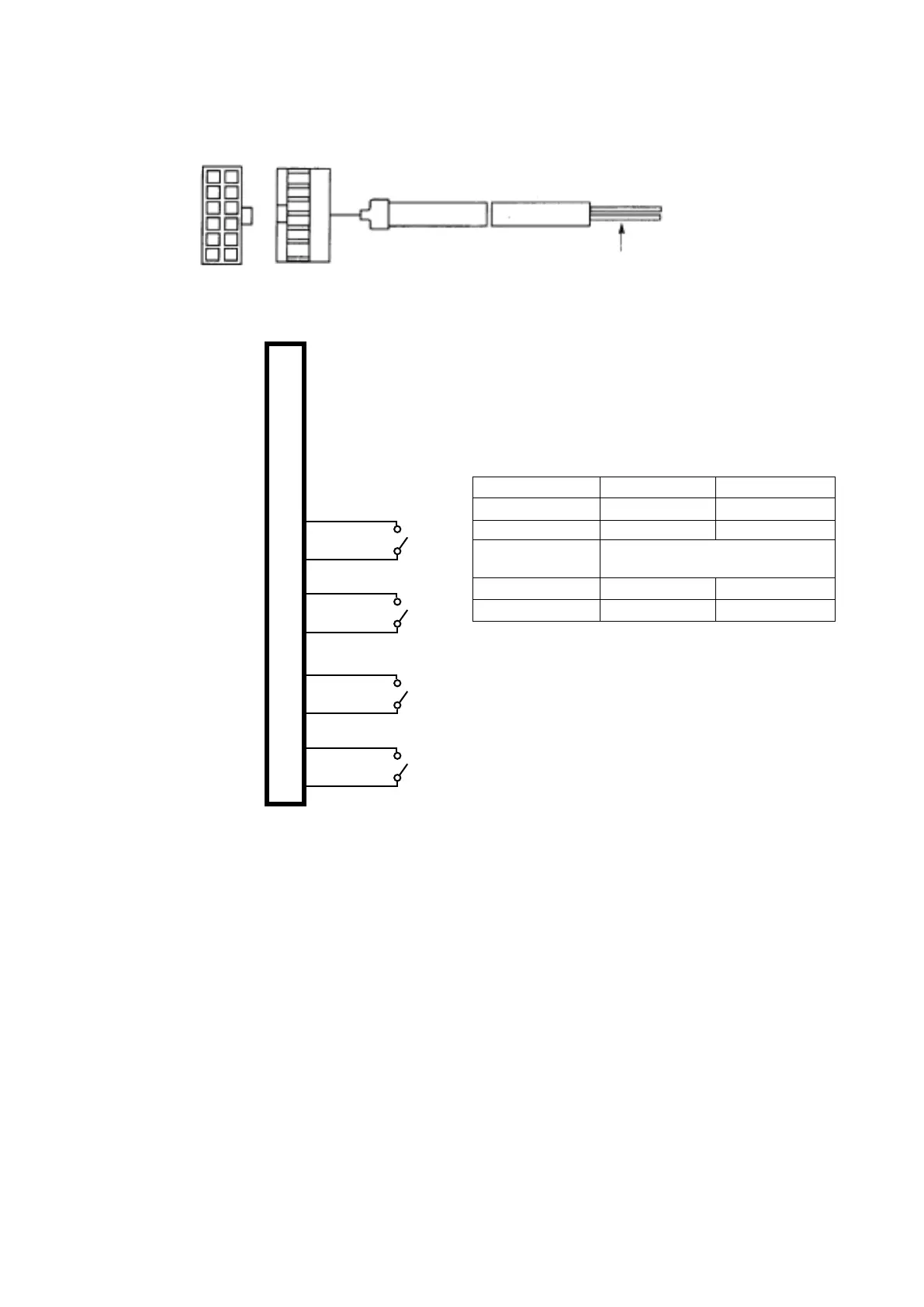

Relay cord A asm. for the standing sewing machine (Part No. M9701351AA0)
CN39
1
2
3
4
5
6
7
8
9
10
11
12
3.3V
Variable resistor
for speed
Switch for lifting
presser foot
Switch for thread
trimming
Switch for
high-speed
Switch for low-
speed
S GND
S GND
S GND
S GND
S GND
Brown
Orange
Yellow
Green
Blue
Perple
Gray
White
Light blue
Pink
Black
No. 1 2
Part number
HK048910120 HK049240000
Name of products
Housing（12p)
Pin contact
Name of
manufacturers
FCI JAPAN
Manufacturers’ model
69176-012
48234-000LF
Remark AWG22-26
Suitable connectors
– 134 –
To Next Page
