Set the memory switches as follows.
Select the framed items.
U019
Selection of pedal
: Standard pedal
: Standard pedal (2-step stroke)
: Optional pedal
: Optional pedal (2-step stroke)
U020
Slection of start pedal
: Standard pedal
: Optional pedal
U024
Optional pedal 1 operation
: OFF when depressing pedal again
: OFF when detaching from pedal
When the pedal is depressed to the middle step, the presser foot comes down.
When it is released, the presser foot goes up.
When the pedal is fully depressed, the sewing machine starts sewing.
6
）

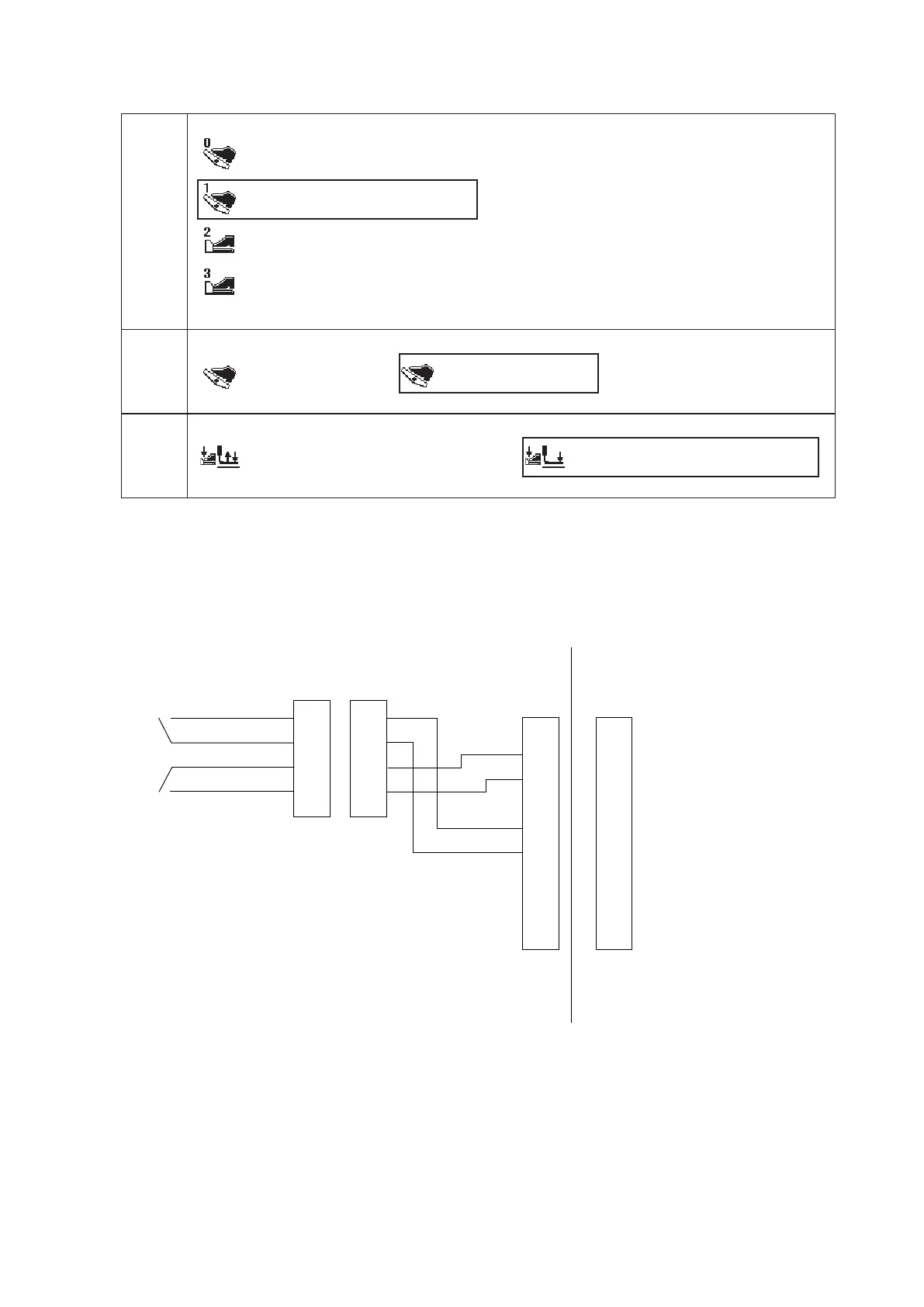

Wiring diagram
1
2
3
4
1
2
3
4
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
+5V
PRSR
GND
+5V
START
GND
+5V
PRSL
GND
CN41
M90135900A0GPK570010B0NO
NC
Start SW 2nd step
Presser foot switch 1st step
MAIN PWB
To Next Page
