8 Installation
8.1 Location and climatic conditions
The location should as far as possible be free from vibration. Stray electro-
magnetic fields, e. g. from motors, transformers etc. should be avoided.
The ambient temperature at the location can be between 0 and +45°C, at a
relative humidity of ≤ 75%, no condensation.
v Chapter 9.1 “Installation notes”
8.2 Mounting in position

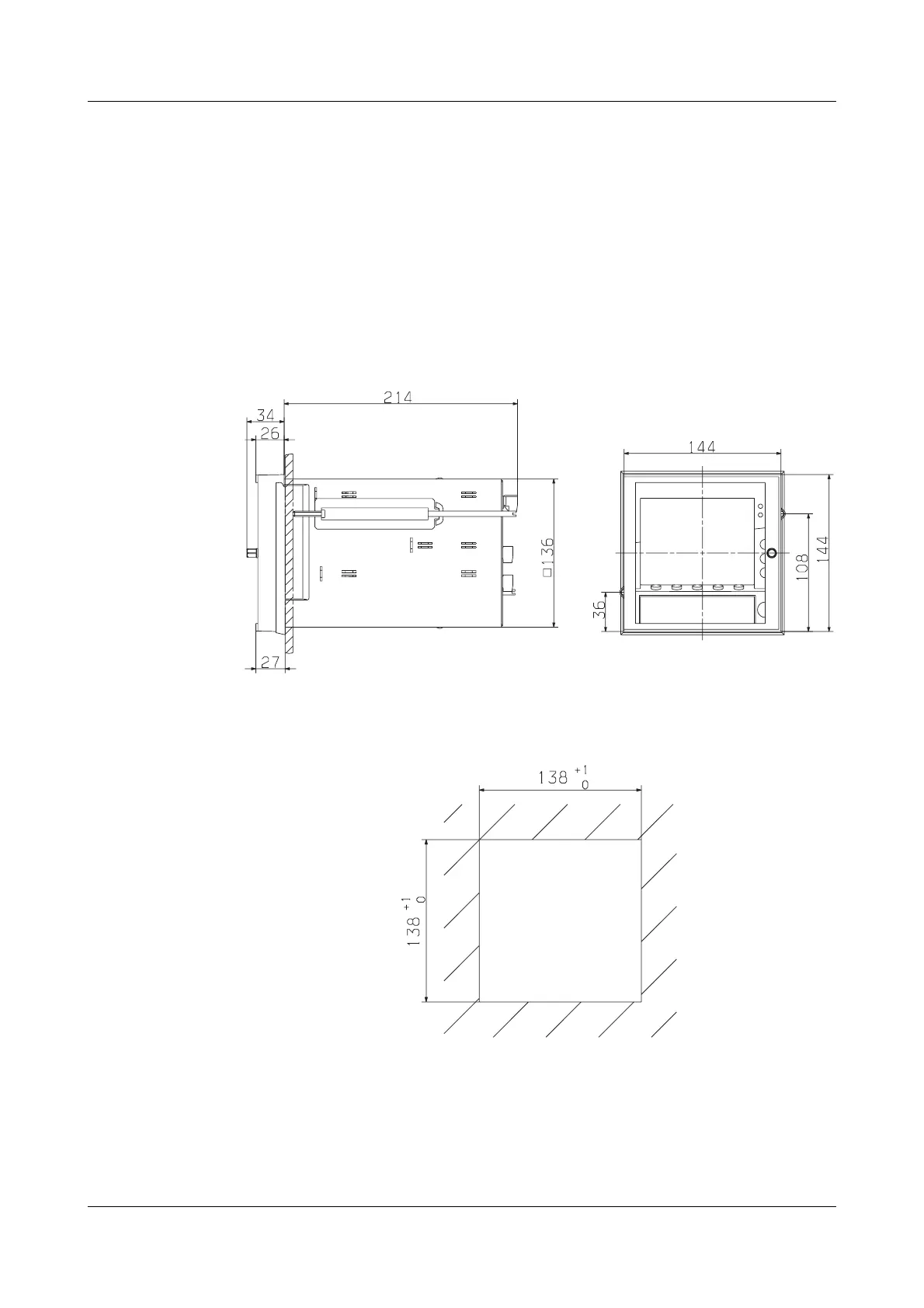

Outline
drawings
The 26 mm dimension is increased to 27 mm if the IP65 sealing is used.
Fitting into
the panel
