9 Electrical connection
82

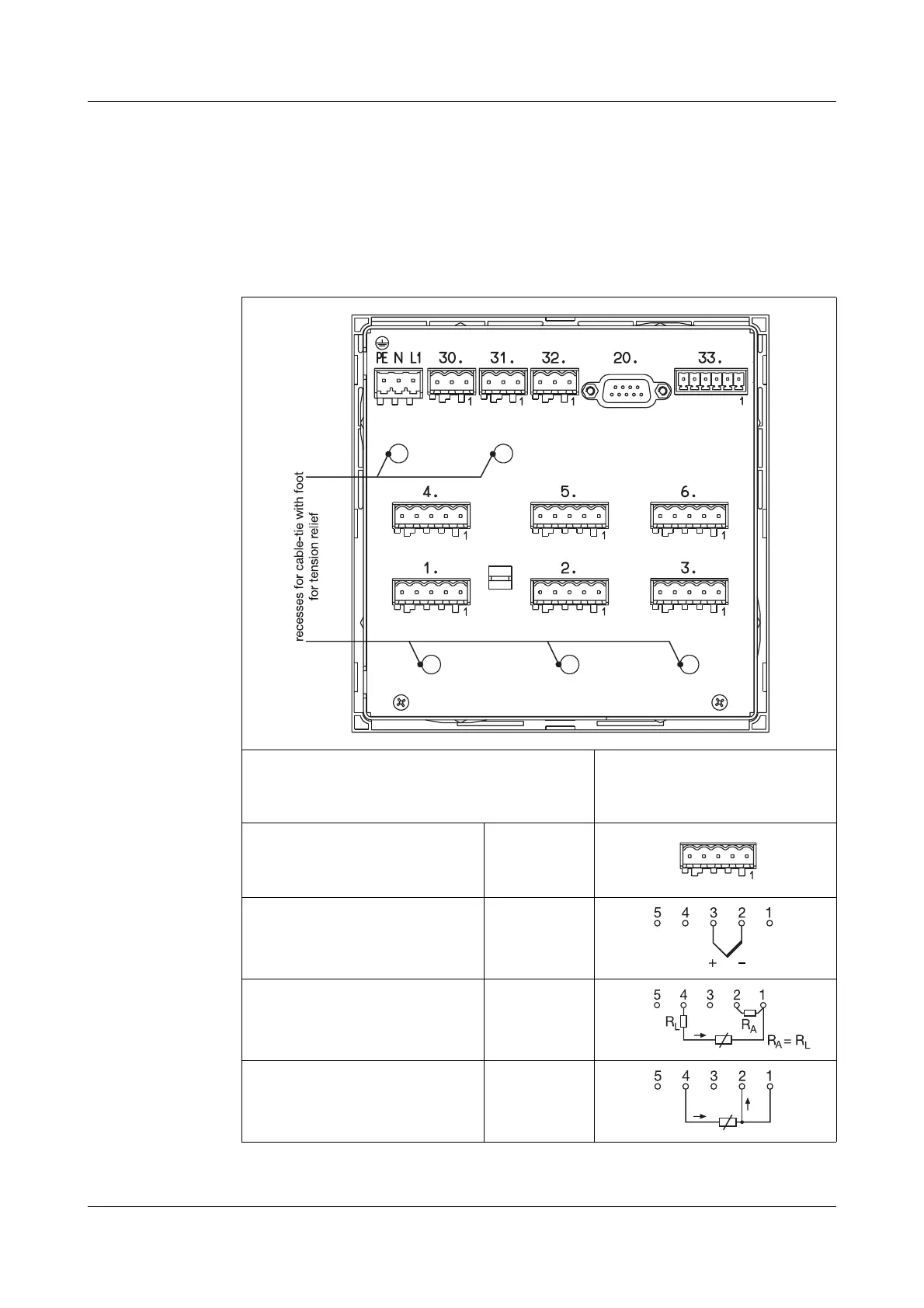

9.3 Connection diagram
Rear view
V
The electrical connection must only be carried out by qualified per-
sonnel.
Terminals
(for screw-clamp connectors)
3/6 channel paperless recorder
Connection symbol
Analog inputs Connector
Thermocouple 1 to 6
Resistance thermometer
in 2-wire circuit
1 to 6
Resistance thermometer
in 3-wire circuit
1 to 6
