5.1 Truck data plate
Z For queries regarding the truck or ordering spare parts always quote the truck serial
number. The truck serial number is engraved on the data plate and on the truck
chassis.

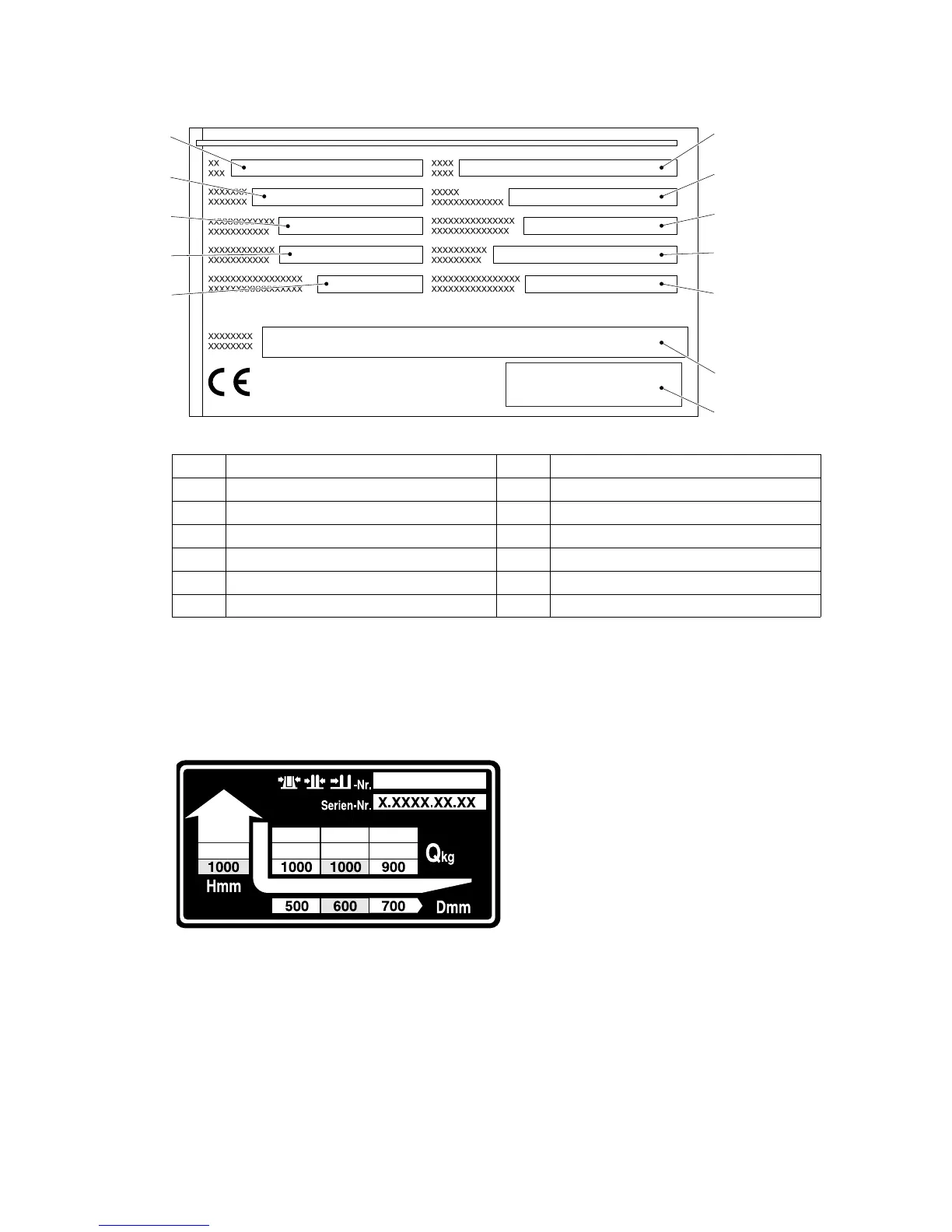

5.2 Truck load chart (capacity)
The capacity plate (16) gives the capacity (Q) of the truck in kg for a vertical mast. The
maximum capacity is shown as a table with a given load centre of gravity D (in mm)
and the required lift height H (in mm).
Example of how to calculate the maximum capacity
For a load centre of gravity D of 600 mm and a max. lift height H of 1000 mm the max-
imum capacity Q is 1000 kg.
Item Description Item Description
25 Type 31 Manufacturer
26 Serial number 32 Min./max. battery weight (kg)
27 Rated capacity (kg) 33 Drive output (kW)
28 Battery voltage (V) 34 Load centre of gravity (mm)
29 Net weight w.o. battery (kg) 35 Year of manufacture
30 Manufacturer’s logo 36 Option
