25
03.09 EN
2 Battery types
Depending on the model, the truck will be supplied with different battery types. The
following table shows which combinations are included as standard:
The battery weights can be taken from the battery data plate. Batteries with non insu-
lated terminals must be covered with a non slip insulating mat.
Z The weight and dimensions of the battery have considerable affect on the opera-
tional safety of the truck. Battery equipment may only be replaced with the agree-
ment of the manufacturer.
3 Exposing the battery
Requirements
Load handler lowered
Key switch set to OFF
Key removed, for code lock the O
key pressed
Emergency Disconnect OFF
Procedure

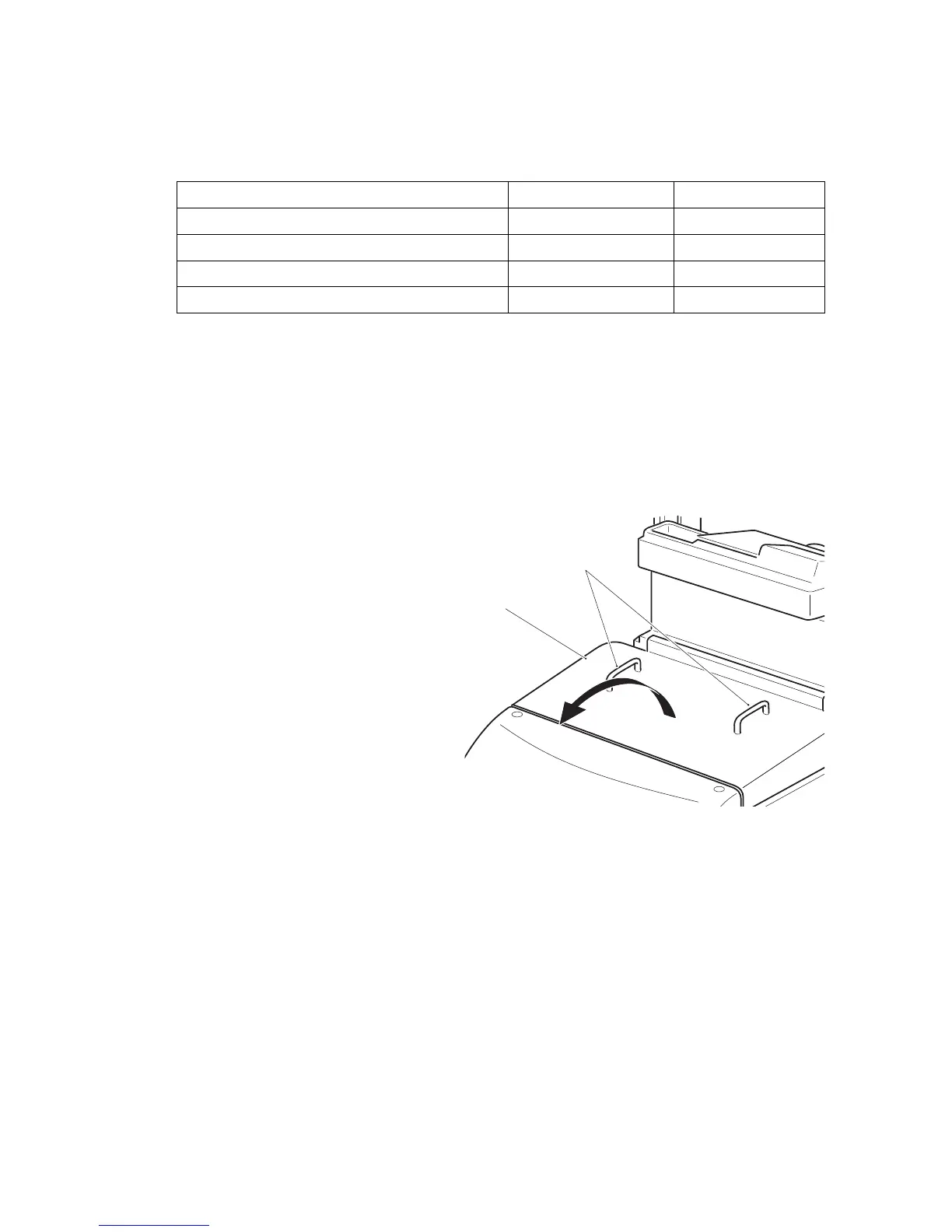

Grab the battery cover (1) by both
handles (2) and lift it up as far as
the stop.
Z The battery cover is held up by its
own weight.
Restore all covers and connec-
tions to their operating position before starting up the truck.
Close the battery panel using the handles (2) only.
Battery type Capacity Weight
24 volt battery (maintenance-free) 4 EPzV 480 Ah 480 kg
24 volt battery 4 EPzS 560 Ah
24 volt battery 4 EPzS 620 Ah
24 volt battery (maintenance-reduced) 4 EPzW 560 Ah
2
1
25
03.09 EN
2 Battery types
Depending on the model, the truck will be supplied with different battery types. The
following table shows which combinations are included as standard:
The battery weights can be taken from the battery data plate. Batteries with non insu-
lated terminals must be covered with a non slip insulating mat.
Z The weight and dimensions of the battery have considerable affect on the opera-
tional safety of the truck. Battery equipment may only be replaced with the agree-
ment of the manufacturer.
3 Exposing the battery
Requirements
Load handler lowered
Key switch set to OFF
Key removed, for code lock the O
key pressed
Emergency Disconnect OFF
Procedure
Grab the battery cover (1) by both
handles (2) and lift it up as far as
the stop.
Z The battery cover is held up by its
own weight.
Restore all covers and connec-
tions to their operating position before starting up the truck.
Close the battery panel using the handles (2) only.
Battery type Capacity Weight
24 volt battery (maintenance-free) 4 EPzV 480 Ah 480 kg
24 volt battery 4 EPzS 560 Ah
24 volt battery 4 EPzS 620 Ah
24 volt battery (maintenance-reduced) 4 EPzW 560 Ah
2
1
