91
03.09 EN

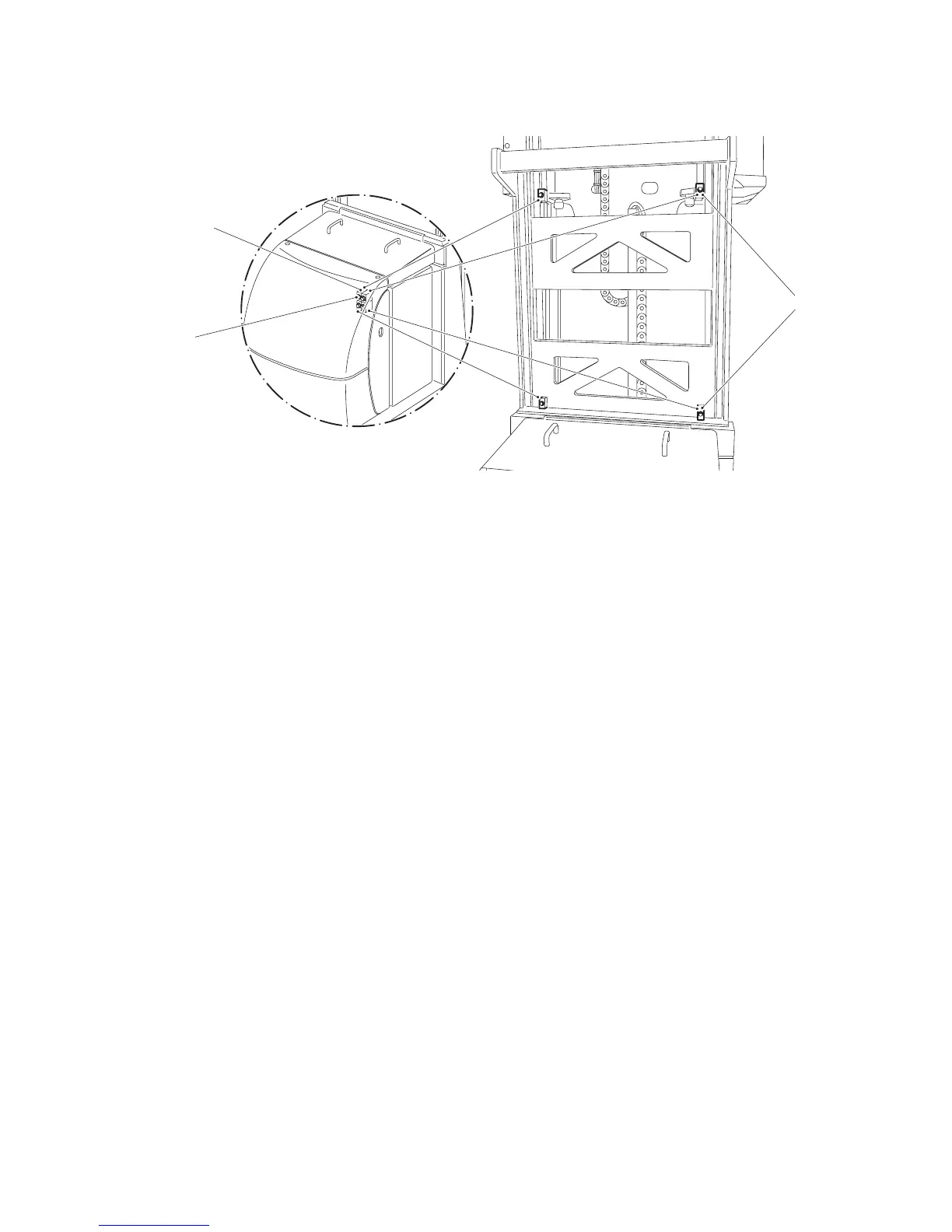

6.3 Mast retainer assembly and removal
The truck has four (for simplex mast 2) retaining blocks to secure the mast.
Mast retainer assembly
Requirements
Prepare the truck for maintenance and repairs ((see "Preparing the truck for main-
tenance and repairs" on page 89)).
Tools and Material Required
Allen key, size 10
Procedure
Open the front panel.
Remove the screws (4) from the retaining blocks (5).
Raise the mast until the threads for the retaining bolts are free.
Screw the retaining blocks (5) onto the mast.
Lower the mast until the retaining blocks are resting on the mast cross-members.
The mast retainer is now assembled.
Mast retainer removal
Requirements
Prepare the truck for maintenance and repairs ((see "Preparing the truck for main-
tenance and repairs" on page 89)).
Tools and Material Required
Allen key, size 10
Procedure
Raise the mast until the retaining blocks are free.
Unscrew the retaining blocks (6) from the mast.
Fully lower the mast.
Screw the retaining blocks into their allocated position in the motor compartment.
5
4
5
