Jungheinrich EKS 110 User Manual

03.09 EN
56

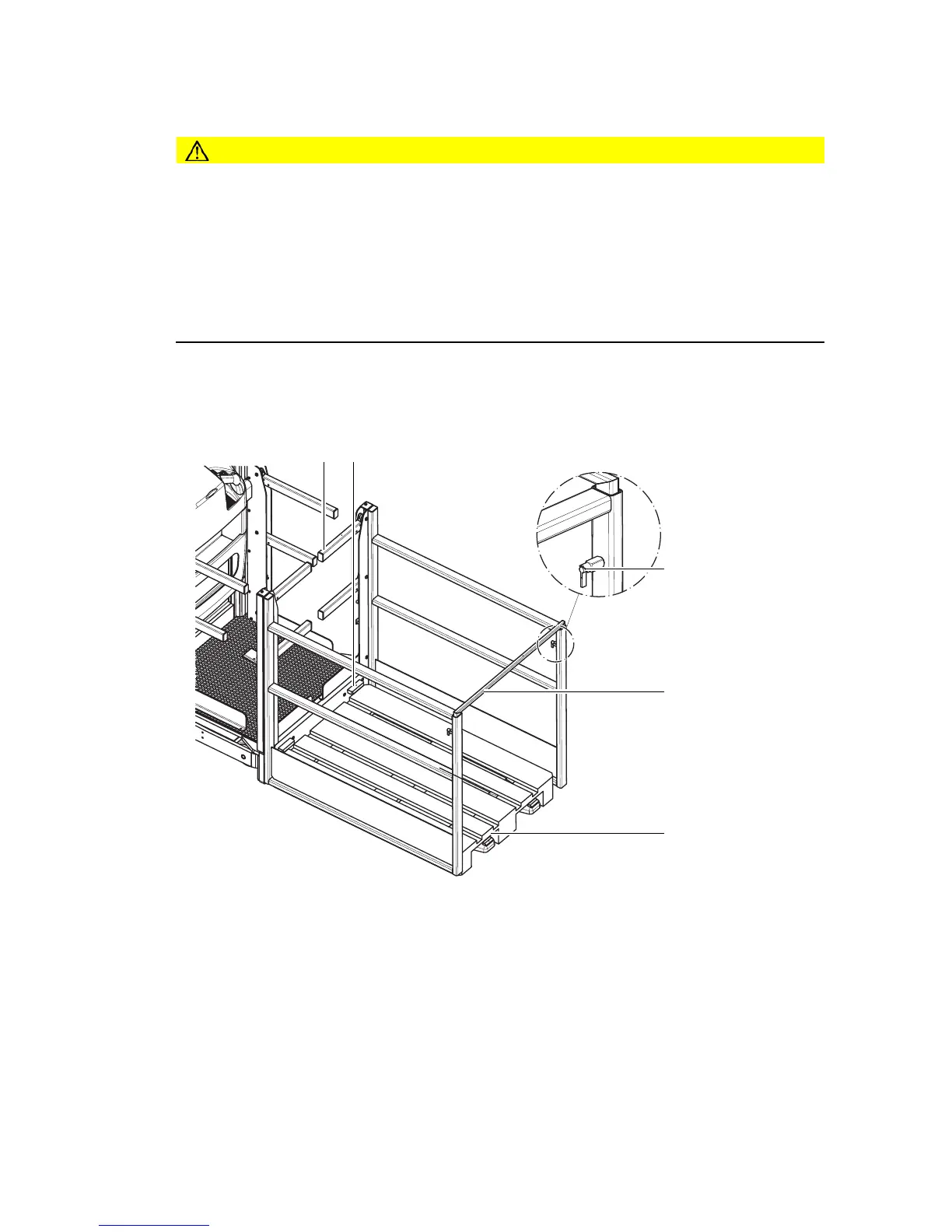

4.10 Walk-on load section with pallet guard (o)
Lifting pallets
CAUTION!
Risk of crashing with walk-on pallets
XOnly walk on a pallet if it has a pallet guard (o).
XBeyond lift heights > 1200 mm the gates must be closed to enable travel, lifting and
lowering (Main Lift).
XOne-way pallets cannot be used as a surface to walk on.
XGood ground conditions.
XOnly use pallets of a suitable size to fit a pallet guard.
Procedure
• Fully lower the operator platform (Main Lift):
• Drive carefully up to the pallet. .
• Align the sides of the pallet guard centrally with the pallet.
• Slowly insert the forks into the pallet until the fork shank touches the pallet.
Z The pallet must fully rest on the forks behind the anti-slip device (37) and the pallet
must be below the anti-tipover mechanism (34) on the fork shank.
• To lift pallets with a higher load,
• Turn the lever for the stop bolts (35) up half a turn until they engage.
• Pull the railing strap (36) up.
• Turn the lever for the stop bolts (35) down again.
• Move the railing strap (36) until the locking pins of the stop bolts engage.
• After lifting the pallet set the railing strap back to its lowest position. To do this,
• Turn the lever for the stop bolts (35) up half a turn until they engage.
35
33
37
36
34
03.09 EN
56
4.10 Walk-on load section with pallet guard (o)
Lifting pallets
CAUTION!
Risk of crashing with walk-on pallets
XOnly walk on a pallet if it has a pallet guard (o).
XBeyond lift heights > 1200 mm the gates must be closed to enable travel, lifting and
lowering (Main Lift).
XOne-way pallets cannot be used as a surface to walk on.
XGood ground conditions.
XOnly use pallets of a suitable size to fit a pallet guard.
Procedure
• Fully lower the operator platform (Main Lift):
• Drive carefully up to the pallet. .
• Align the sides of the pallet guard centrally with the pallet.
• Slowly insert the forks into the pallet until the fork shank touches the pallet.
Z The pallet must fully rest on the forks behind the anti-slip device (37) and the pallet
must be below the anti-tipover mechanism (34) on the fork shank.
• To lift pallets with a higher load,
• Turn the lever for the stop bolts (35) up half a turn until they engage.
• Pull the railing strap (36) up.
• Turn the lever for the stop bolts (35) down again.
• Move the railing strap (36) until the locking pins of the stop bolts engage.
• After lifting the pallet set the railing strap back to its lowest position. To do this,
• Turn the lever for the stop bolts (35) up half a turn until they engage.
35
33
37
36
34
