Jungheinrich EKS 110 User Manual

03.09 EN
92
Z Tighten the screws manually so that they cannot be undone by normal impacts
caused during operation.
The mast retainer is now removed.

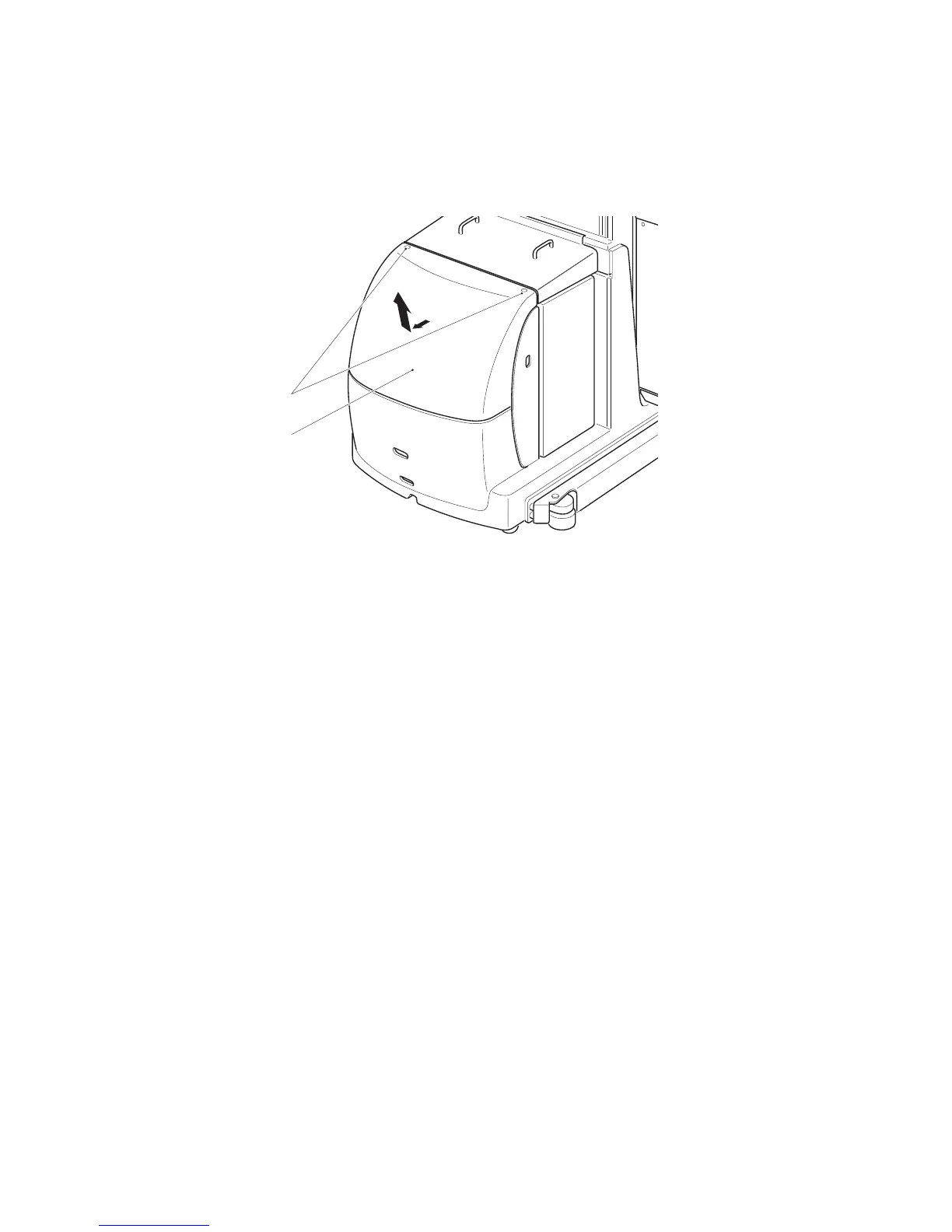

6.4 Front panel assembly and disassembly
Front panel disassembly
Tools and Material Required
– Allen key, size 6
Procedure
• Remove the screws (7).
• Lift and remove the front panel (8).
• Place the front panel (8) safely to one side.
The front panel is now disassembled.
Front panel assembly
Procedure
• Insert the front panel (8).
• Tighten the screws (7).
The front panel is now assembled.
7
8
03.09 EN
92
Z Tighten the screws manually so that they cannot be undone by normal impacts
caused during operation.
The mast retainer is now removed.
6.4 Front panel assembly and disassembly
Front panel disassembly
Tools and Material Required
– Allen key, size 6
Procedure
• Remove the screws (7).
• Lift and remove the front panel (8).
• Place the front panel (8) safely to one side.
The front panel is now disassembled.
Front panel assembly
Procedure
• Insert the front panel (8).
• Tighten the screws (7).
The front panel is now assembled.
7
8
