27
03.09 EN
5 Battery removal and installation
Removing the battery
WARNING!
Accident risk during battery removal and installation
Due to the battery weight and acid there is a risk of trapping or scalding when the bat-
tery is removed and installed.
X Note the "Safety regulations for handling acid batteries" section in this chapter.
X Wear safety shoes when removing and installing the battery.
X Use only batteries with insulated cells and terminal connectors.
X Park the truck on a level surface to prevent the battery from sliding out.
X Make sure the crane slings have sufficient capacity to replace the battery.
X Use only approved battery replacement devices (battery roller stand, replacement
trolley etc.).
X Make sure the battery is securely located in the truck's battery compartment.
Requirements
Truck parked.
Battery exposed, (see "Exposing the battery" on page 25).
Battery disconnected.
Tools and Material Required
Crane or forklift truck
Crane slings
Battery replacement trolley (o)
Procedure

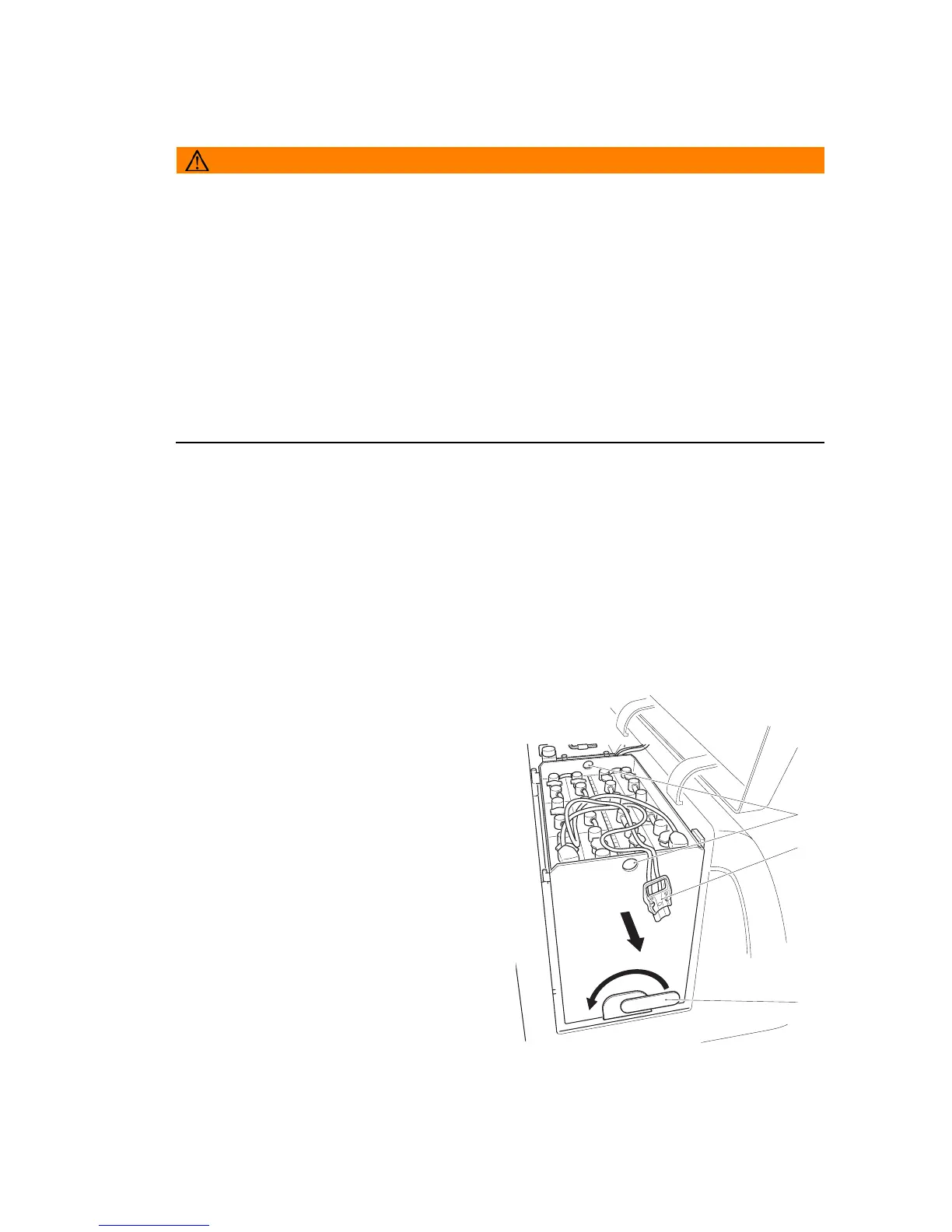

Pull the clamping lever (6) of the battery
lock 180° anti-clockwise.
Pull the battery lock up.
Removing the battery with a replacement
trolley (o)
Pull the battery sideways off the truck.
Follow the operating instructions of the
battery replacement trolley manufac-
turer!
Removing the battery with a crane or
forklift truck
Attach the hooks of the crane slings to
the strap eyes (5) on the battery.
The discharged crane slings must not
fall onto the battery cells.
Slowly and carefully lift the battery out
of the truck.
The battery is now removed.
