03.09 EN
32

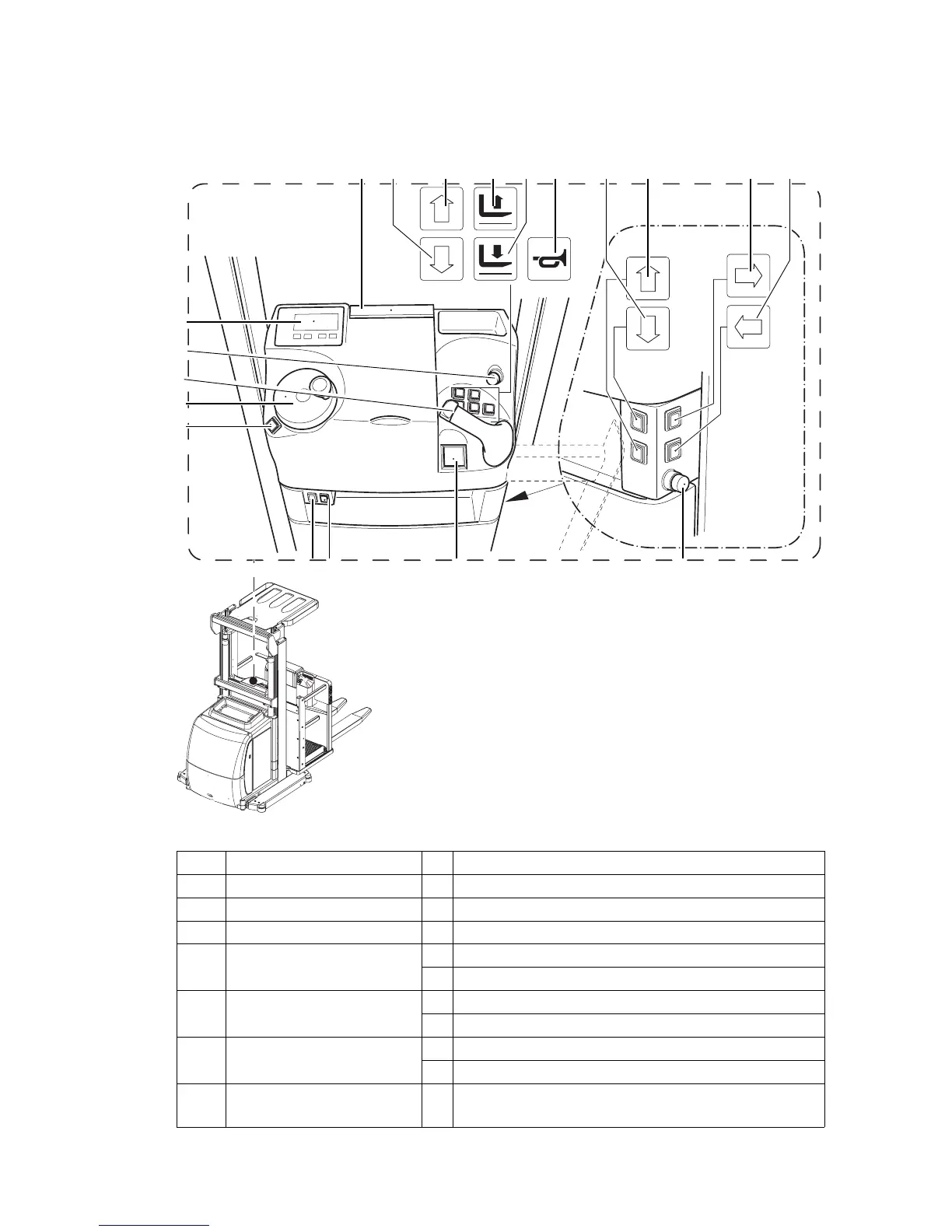

2 Displays and Controls
2.1 Operator position control station in drive direction
Item Control / Display Function
1 Clip board t For holding A4 paper
2 Lower button t Lowers the operator platform and forks.
3 Lift button t Lifts the operator platform and forks.
4 Aux. lift “raise” button o Raises the forks
o 2ndcontrol station
5 Aux. lift “lower” button o Lowers the forks
o 2nd control station
6 Warning button t Activates a warning signal.
o 2nd control station
7 Pedestrian mode lower
button
o Pedestrian mode optional feature: Lowers the
operator platform and forks.
12 3 4 56 7 8 9
19181716
15
14
12
11
10
13
03.09 EN
32
2 Displays and Controls
2.1 Operator position control station in drive direction
Item Control / Display Function
1 Clip board t For holding A4 paper
2 Lower button t Lowers the operator platform and forks.
3 Lift button t Lifts the operator platform and forks.
4 Aux. lift “raise” button o Raises the forks
o 2ndcontrol station
5 Aux. lift “lower” button o Lowers the forks
o 2nd control station
6 Warning button t Activates a warning signal.
o 2nd control station
7 Pedestrian mode lower
button
o Pedestrian mode optional feature: Lowers the
operator platform and forks.
12 3 4 56 7 8 9
19181716
15
14
12
11
10
13
