Jungheinrich EKS 110 User Manual

03.09 EN
22
4 Operating the truck without its own drive system
Releasing the brake
CAUTION!
Uncontrolled truck movement
XDo not release the brake on slopes or inclines.
XApply the brake again when you reach your destination.
XDo not park the truck with the brake released.
Tools and Material Required
– Two M5x42 hex. socket screws
– Allen key
Procedure
• Turn the main switch/isolator “OFF”.
• Set the key switch OFF and remove the
key.
• Prevents the truck from rolling away.
• Open the front panel (6) and put it aside,
(see "Front panel assembly and disas-
sembly" on page 92).

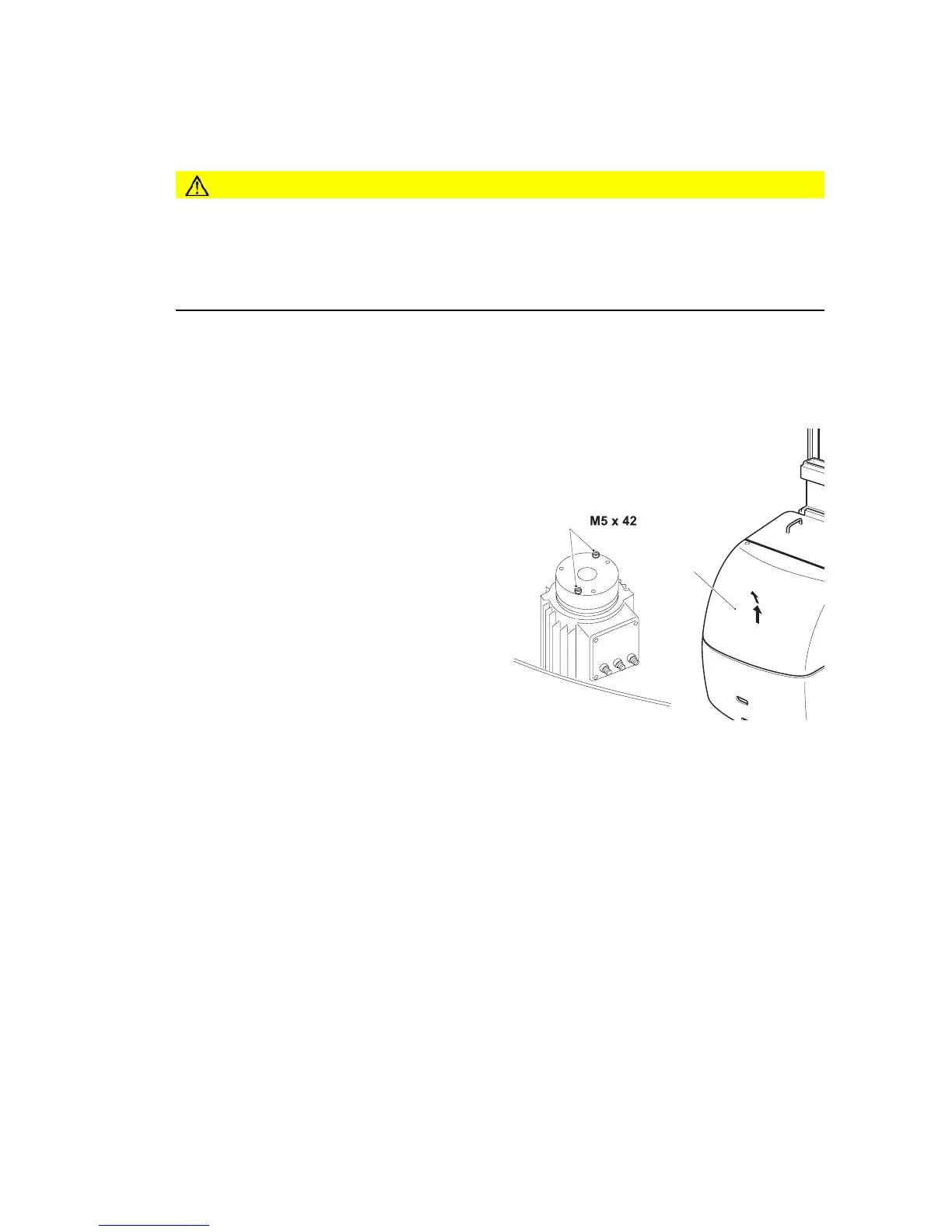

• Insert two M5x42 hex. socket screws (7)
as far as the stop and lift up the anchor
plate.
The brake is now released and the truck
can be moved.
Applying the brake
Procedure
• Unscrew the two M5x42 hex. socket screws (7).
• Refit and close the front panel (6).
Braking is now restored again.
6
7
03.09 EN
22
4 Operating the truck without its own drive system
Releasing the brake
CAUTION!
Uncontrolled truck movement
XDo not release the brake on slopes or inclines.
XApply the brake again when you reach your destination.
XDo not park the truck with the brake released.
Tools and Material Required
– Two M5x42 hex. socket screws
– Allen key
Procedure
• Turn the main switch/isolator “OFF”.
• Set the key switch OFF and remove the
key.
• Prevents the truck from rolling away.
• Open the front panel (6) and put it aside,
(see "Front panel assembly and disas-
sembly" on page 92).
• Insert two M5x42 hex. socket screws (7)
as far as the stop and lift up the anchor
plate.
The brake is now released and the truck
can be moved.
Applying the brake
Procedure
• Unscrew the two M5x42 hex. socket screws (7).
• Refit and close the front panel (6).
Braking is now restored again.
6
7
