4.13 Trucks with rail guidance (o) and aisle recognition (o)
Notes on rail-guided operation
Trucks with the light button aisle recognition option can travel at maximum speed
even beyond the 1200 mm operator platform height (or 520 mm for trucks with auxil-
iary lift).
In rail-guided mode with aisle recognition, the two-hand operation button (15) must
also be pressed in order to travel and lift.
In rail-guided mode with aisle recognition steering is overridden as the drive wheel is
automatically set to the straight-ahead position.
Entering narrow aisles
Procedure
Drive slowly up to the rack aisle until the truck is aligned with the aisle.

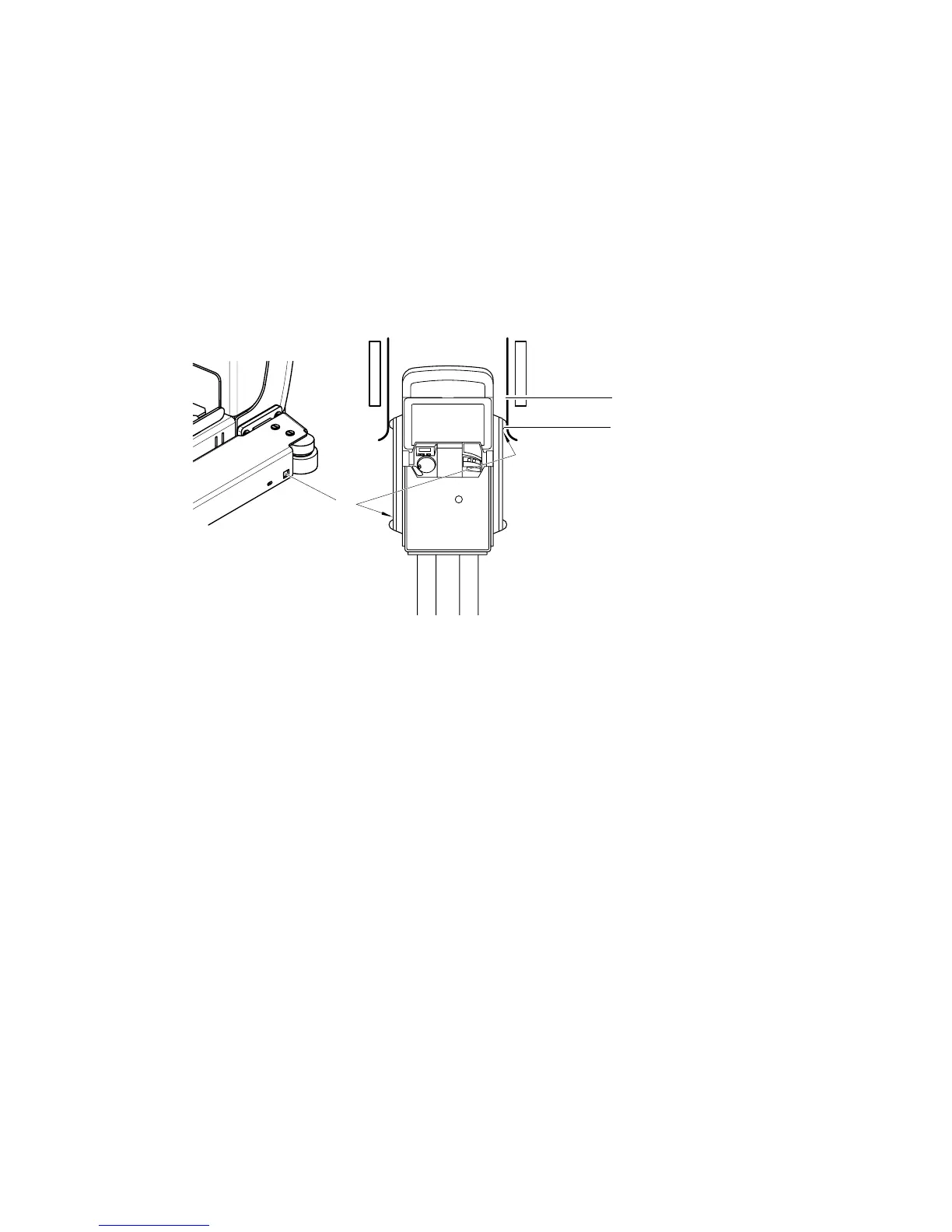

Slowly travel forward while ensuring that the guide wheels (39) of the truck align
with the side rails (38) of the rack aisle.
As soon as the first light button (40) in the travel direction is activated by the side
rails (38) (truck with the first pair of guide rollers between the side rails), the travel
speed is automatically reduced to 2.5 km/h (slow travel). Steering is still enabled at
this point.
When the second light button (40) is activated by the side rails (38), the truck ini-
tially brakes to a halt and the steering automatically reverts to the straight ahead
position.
