6.1 Driver's display

The driver's display represents the interface between the operator and the truck. It

acts as a display and control unit for the operator and customer service engineer

alike. Pressing the four short stroke keys (59, 58 , 57, 56) operates the driver's display

and hence the truck. The LEDs of the 4 luminous buttons (42, 43,53, 54) can show

3 conditions: on, flashing or off. A colour contrasting display gives information on the

travel direction, steering angle, battery charge condition and other selected truck pa-

rameters.

Setting the time

Procedure

• Press the Shift key (58) for 8 secs. until menu "Set Clock Time" is displayed.

• Set the time with the Up (56) and Down (50) keys.

• Confirm with the Shift key (58).

• Set the minutes with the Up (56) and Down (50) keys.

• Confirm with the Shift (58) or profile (59) keys to return to normal operating mode.

The time is now set.

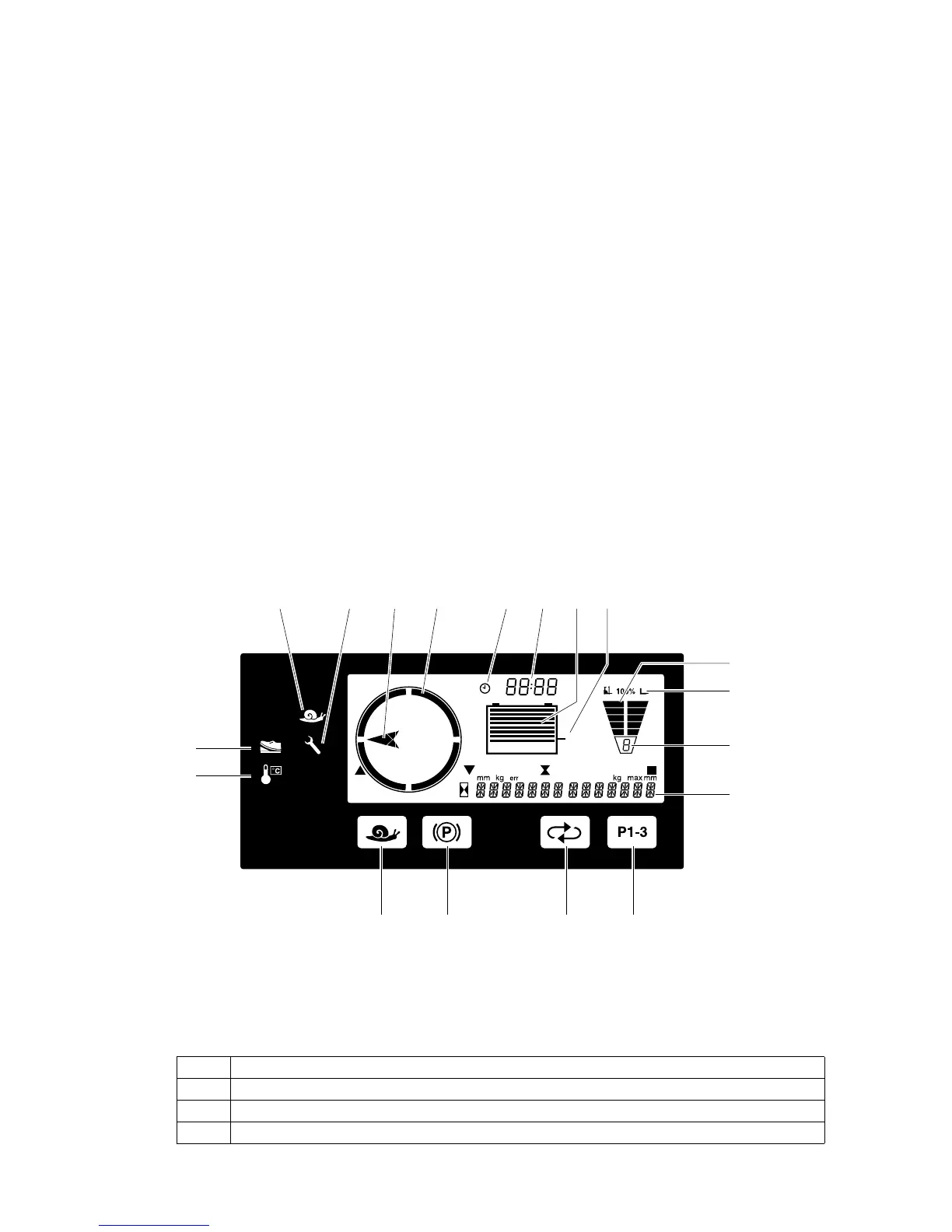

Item Description

54 Overtemperature (red icon)

53 Deadman switch not pressed (yellow icon)

42 Slow travel (green icon)

42 43 44 45 46 47 48 49

5856 57
