Jungheinrich EKS 110 User Manual

03.09 EN
94
6.6 Checking electrical fuses
Checking and replacing fuses
Requirements
– Prepare the truck for maintenance and repairs
– Expose the electrical system
Procedure
• Check fuse ratings and check for damage.
• Replace any damaged fuses in accordance
with the table.
• Close the electrical system.
The fuses are now checked.

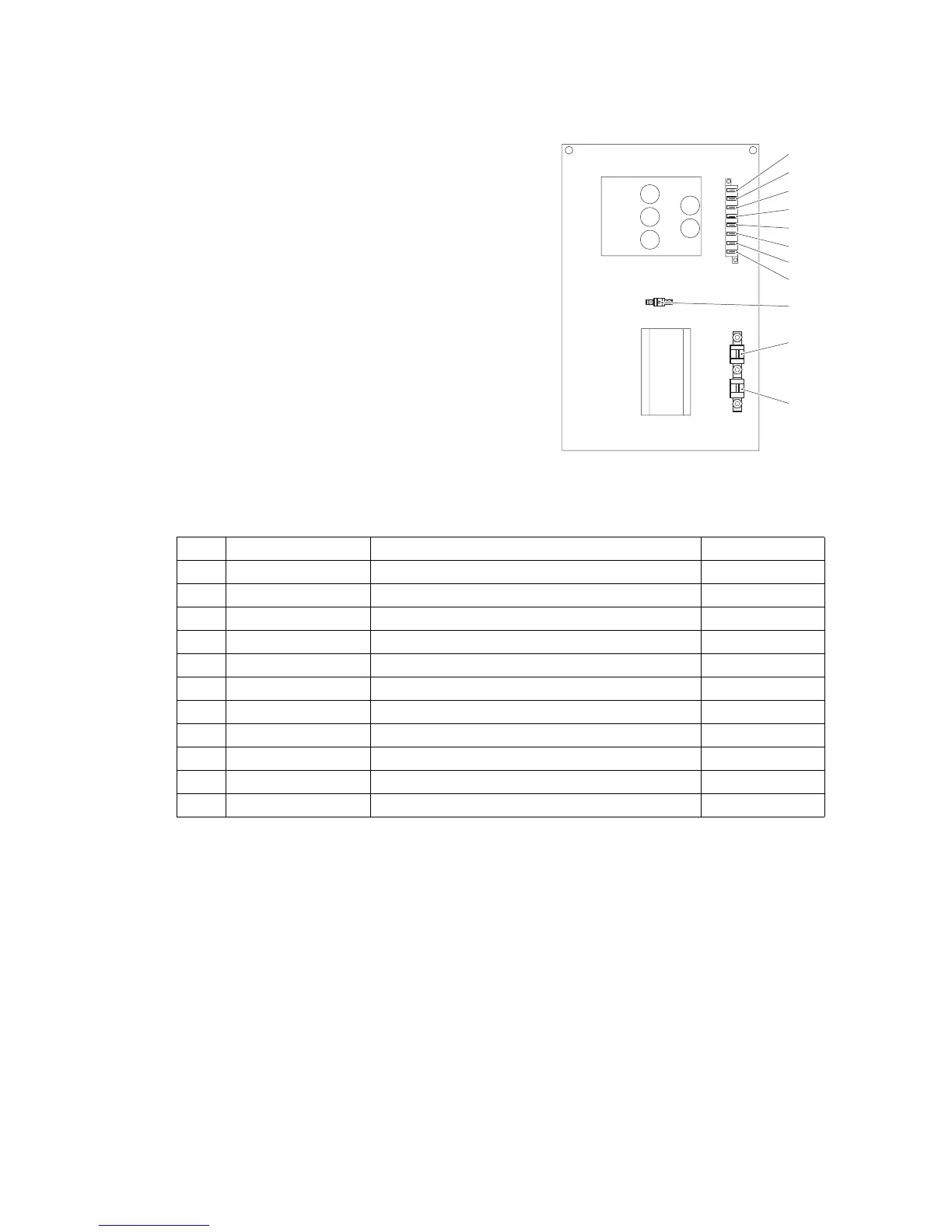

11
12
13
14
15
16
17
18
19
20
21
Item Description To protect Rating
11 3F6 Steer motor 30
12 F4 Main contactor control fuse 10
13 3F9 Steering controller control fuse 2
14 F1 Overall control fuse 10
15 5F2 DC/DC converter (o)10
16 5F5 Lighting / spare 10
17 6F1 Discharge indicator control fuse 10
18 4F1 Horn control fuse 3
19 F1.1 Travel control fuse 300
20 2F2 Aux. lift pump motor (o)150
21 2F1 Pump motor 150
03.09 EN
94
6.6 Checking electrical fuses
Checking and replacing fuses
Requirements
– Prepare the truck for maintenance and repairs
– Expose the electrical system
Procedure
• Check fuse ratings and check for damage.
• Replace any damaged fuses in accordance
with the table.
• Close the electrical system.
The fuses are now checked.
11
12
13
14
15
16
17
18
19
20
21
Item Description To protect Rating
11 3F6 Steer motor 30
12 F4 Main contactor control fuse 10
13 3F9 Steering controller control fuse 2
14 F1 Overall control fuse 10
15 5F2 DC/DC converter (o)10
16 5F5 Lighting / spare 10
17 6F1 Discharge indicator control fuse 10
18 4F1 Horn control fuse 3
19 F1.1 Travel control fuse 300
20 2F2 Aux. lift pump motor (o)150
21 2F1 Pump motor 150
