03.09 EN
34

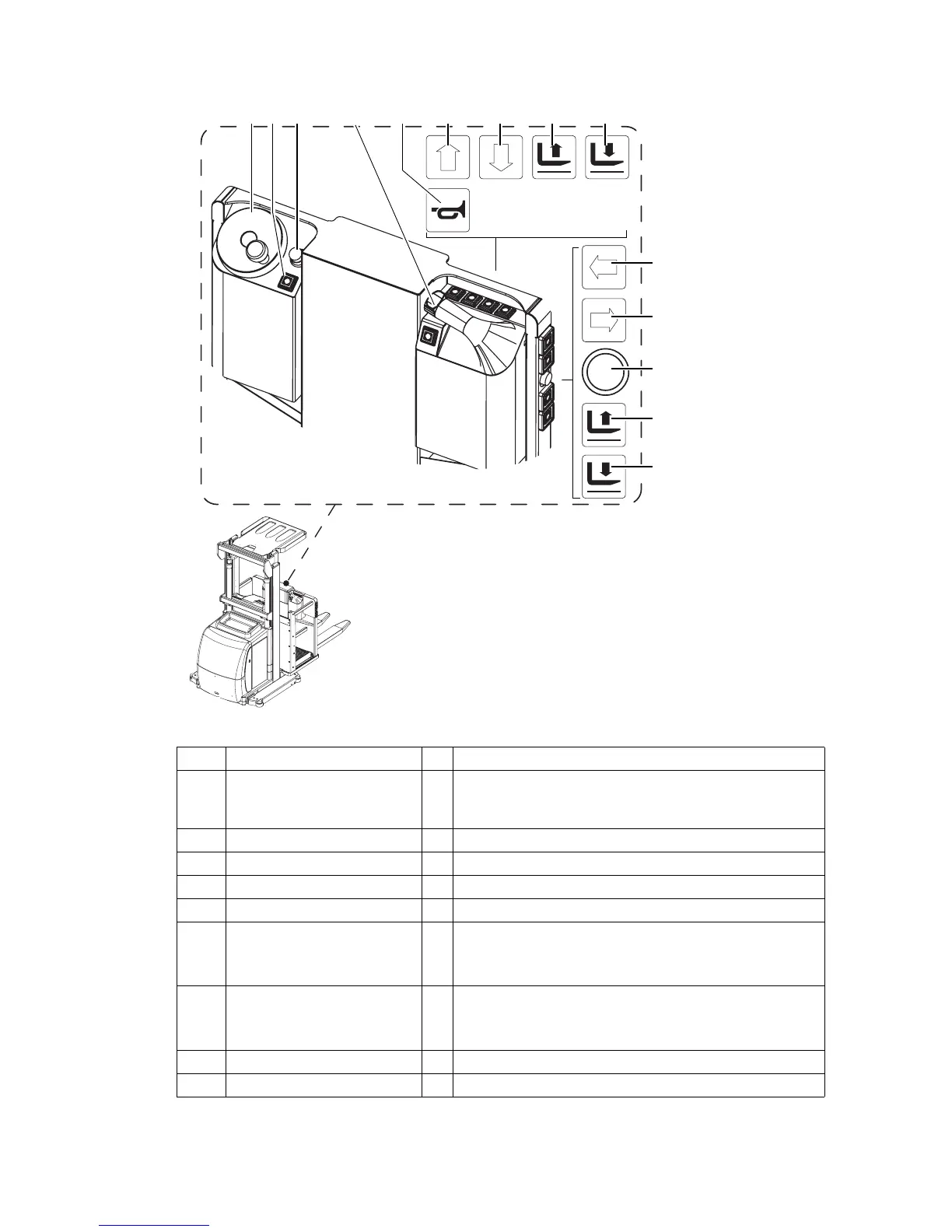

2.2 Second control station (o) in load direction
Item Control / Display Function
2 Lower button t Lowers the operator platform and forks.
3 Lift button t Lifts the operator platform and forks.
4 Aux. lift “raise” button o Raises the forks.
5 Aux. lift “lower” button o Lowers the forks.
6 Warning button t Activates a warning signal.
9 Drive direction pedes-
trian touch mode
o Pedestrian mode optional feature, travel is
continued as operator walks beside in drive
direction (slow travel).
10 Fork direction pedes-
trian touch mode
o Pedestrian mode optional feature, travel is
continued as operator walks beside in forks
direction (slow travel).
13 Controller t Controls the travel direction and speed.
14 Steering wheel t Steers the truck.
9
10
19
23
24
3264520 2221
13
