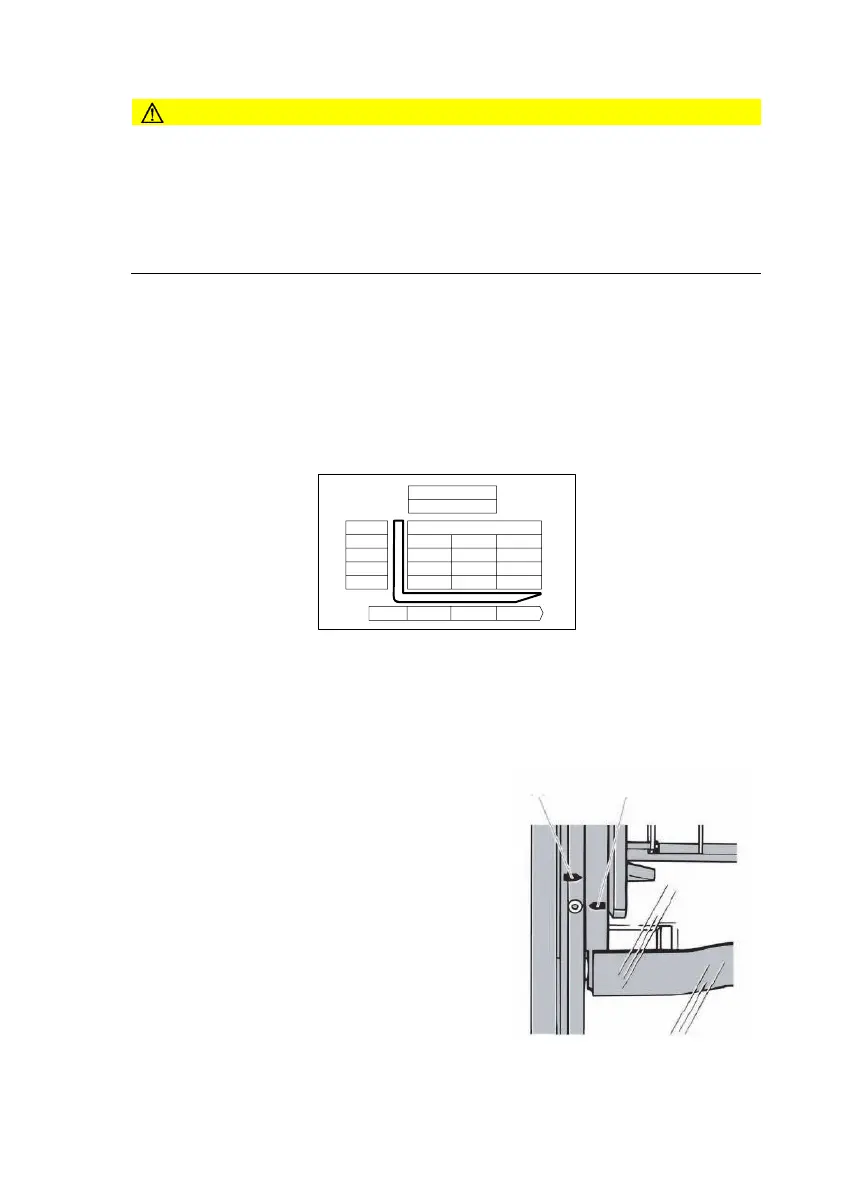

4.2 Truck capacity plate
CAUTION!
Accident risk from fork replacement
If you replace the forks with ones that differ from the originals, the capacity will
change.
XWhen replacing the forks you must attach an additional capacity plate to the truck.
XTrucks supplied without forks are given a capacity plate for standard forks (length:
1150 mm).
The capacity plate (18) gives the capacity (Q in kg) of the truck for a vertical mast.
The maximum capacity is shown as a table with a given load centre of gravity D (in
mm) and the required lift height H (in mm).
The capacity plate (18) of the truck indicates the truck's capacity with the forks as
originally supplied.
Example of how to calculate the maximum capacity:
For a load cente of gravity D of 600 mm and a maximum lift height h
3
of 3600 mm the
maximum capacity is Q 1105 kg.
Lift height restriction
The arrow shape markings (43 and 44)
on the inner and outer masts show the
driver when the prescribed lift limits
have been reached.
D (mm) 500 600 700
h3 (mm)
4250
3600
2900
850
1105
1250
850
1105
1250
600
850
850
Q (kg)
43 44
