08.11 EN
92
4.13 Operating additional attachments for the SOLO-PILOT
WARNING!
Incorrect symbols can cause accidents
Symbols on controls that do not depict the function of the attachments can cause
accidents.
XMark the controls with symbols that indicate their function.
XSpecify the attachments’ direction of movement in accordance with ISO 3691-1 so
that they match the controls’ direction of movement.

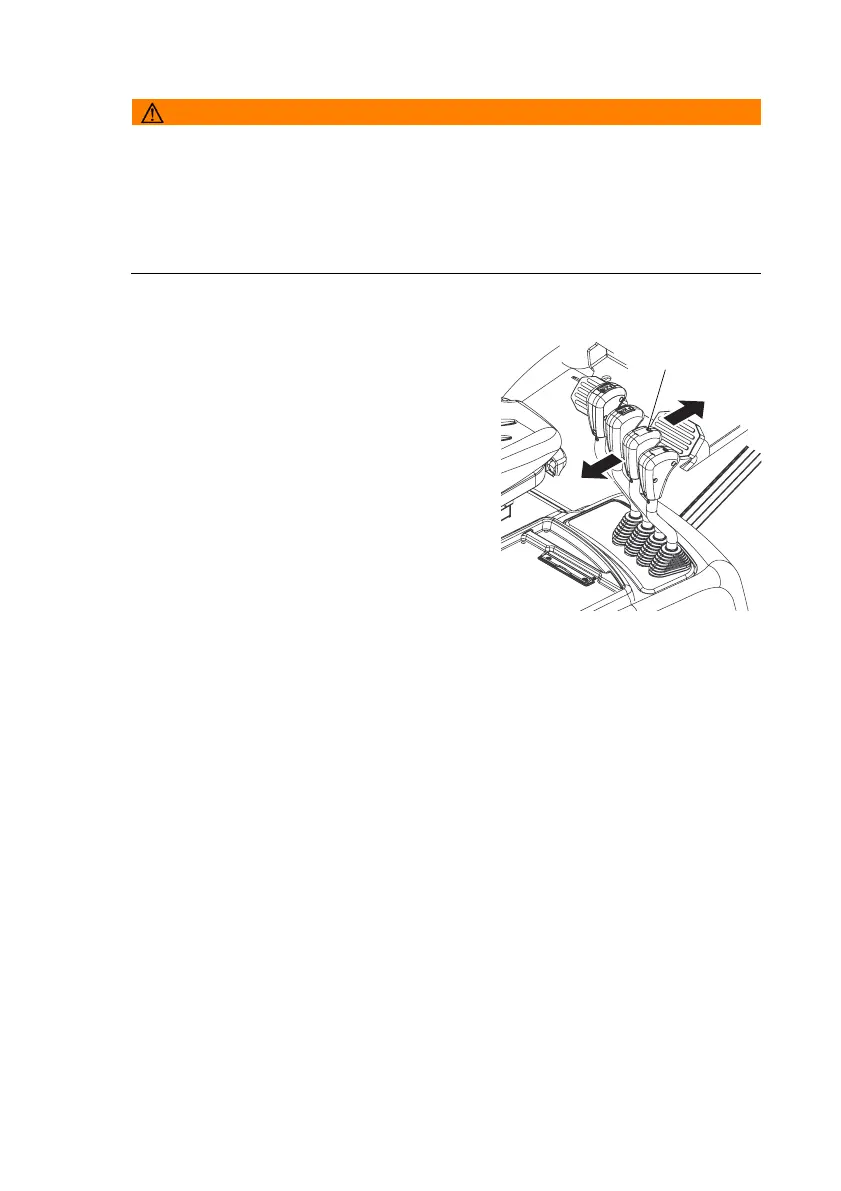

4.13.1 Solo Pilot with control of ZH1 hydraulic port
Z Depending on the attachments used the
lever (118) is assigned the function of the
attachment. Levers that are not required are
void. For connections (see "Fitting additional
attachments" on page 94).
Procedure
• Operating the hydraulic port ZH1:
Move the lever (118) in direction V or R.
The attachment’s function is performed.
R
V
118
