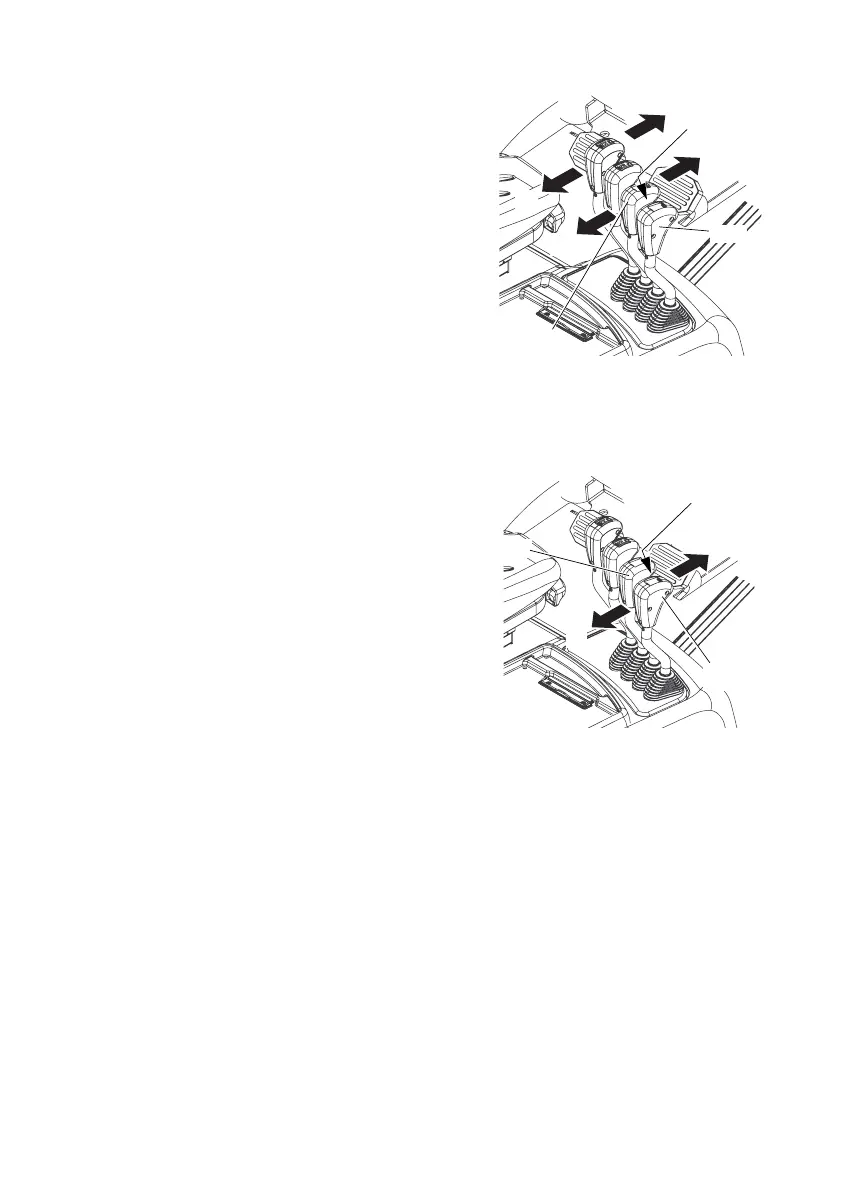

4.13.2 Solo Pilot with control of ZH1 and ZH2 hydraulic ports
Z Depending on the attachments used the lever
/ button (118, 120, 119) is assigned the
function of the attachment. Levers that are not
required are void. For connections (see
"Fitting additional attachments" on page 94).
Procedure
• Operating the hydraulic port ZH1:
Move the lever (118) in direction V or R.
• Operating the hydraulic port ZH2:
Press the toggle switch (119) and at the same
time move the lever (120) in the V or R
direction.
The attachment’s function is performed.
4.13.3 Solo Pilot with control of ZH1, ZH2 and ZH3 hydraulic ports
Z Functions are assigned to the levers / buttons
(118, 120, 119) depending on the
attachments used. Levers that are not
required are void. For connections (see
"Fitting additional attachments" on page 94).
Procedure
• Operating the hydraulic port ZH1:
Move the lever (118) in direction V or R.
• Operating the hydraulic port ZH2:
Move the lever (120) in direction V or R.
• Operating the hydraulic port ZH3:
Press the toggle switch (119) and at the same
time move the lever (120) in the V or R direction.
The attachment’s function is performed.
R
V
R
V
119
120
118
R
V
119
118
120
