3 Securing the truck during transport
WARNING!
Accidental movement during transport
Improper fastening of the truck and mast during transport can result in serious
accidents.
XLoading must be carried out by specially trained staff in accordance with
recommendations contained in Guidelines VDI 2700 and VDI 2703 In each case
correct measurements must be made and appropriate safety measures adopted.
XThe truck must be securely fastened when transported on a lorry or a trailer.
XThe loading area must have clamp rings and a wooden floor to secure the retaining
wedges.
XUse wedges to prevent the truck from moving.
XUse only tensioning belts or tie-down straps or with sufficient strength.

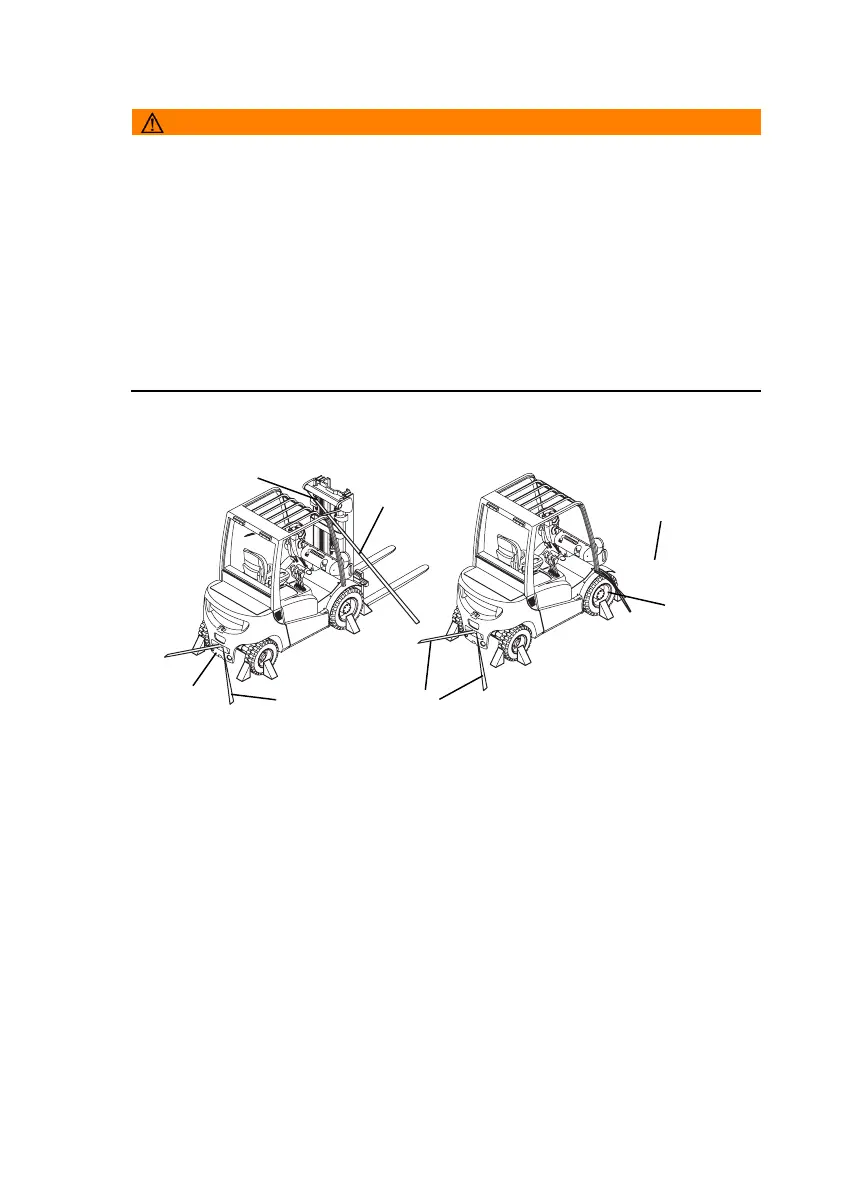

Securing with a mast Securing without a mast
Securing the truck for transport
Requirements
– Position the truck securely on a lorry or trailer, (see "Parking the truck securely" on
page 74).
Tools and Material Required
– 2 tensioning belts with tensioner
– Retaining wedges.
Procedure
• Secure the truck with the tensioning belt (47) at the top cross member of the mast
(5) and the trailer coupling (12) or over the mud guard (48) and the trailer coupling
(12).
• Tighten the tensioning belt (47) with the tensioner (47).
The truck is now secured for transport.
47
48
12
46
47
47
47
