08.11 EN
94
4.14 Fitting additional attachments
WARNING!
Incorrectly connected attachments can cause accidents.
Attachments with incorrectly connected hydraulic attachments can result in
accidents.
XAttachments must only be assembled and commissioned by trained, specialist
personnel.
XNote the attachment manufacturer’s operating instructions.
XBefore commissioning, check the fasteners are positioned correctly and securely
and make sure they are complete.
XBefore commissioning, make sure the attachment is working correctly.
Hydraulic ports
Requirements
– Non-pressurised hydraulic hoses.
– The exchange ports on the truck are
marked ZH2 and ZH3.
– Attachment directions of movement
defined to match the controls’ direction of
movement.
Procedure
• Lower the fork carriage to the ground.
• Turn off the ignition (set the ignition /
starter switch 0).
• Turn the ignition on again (set the ignition
/ starter switch I), but do not start the
motor.

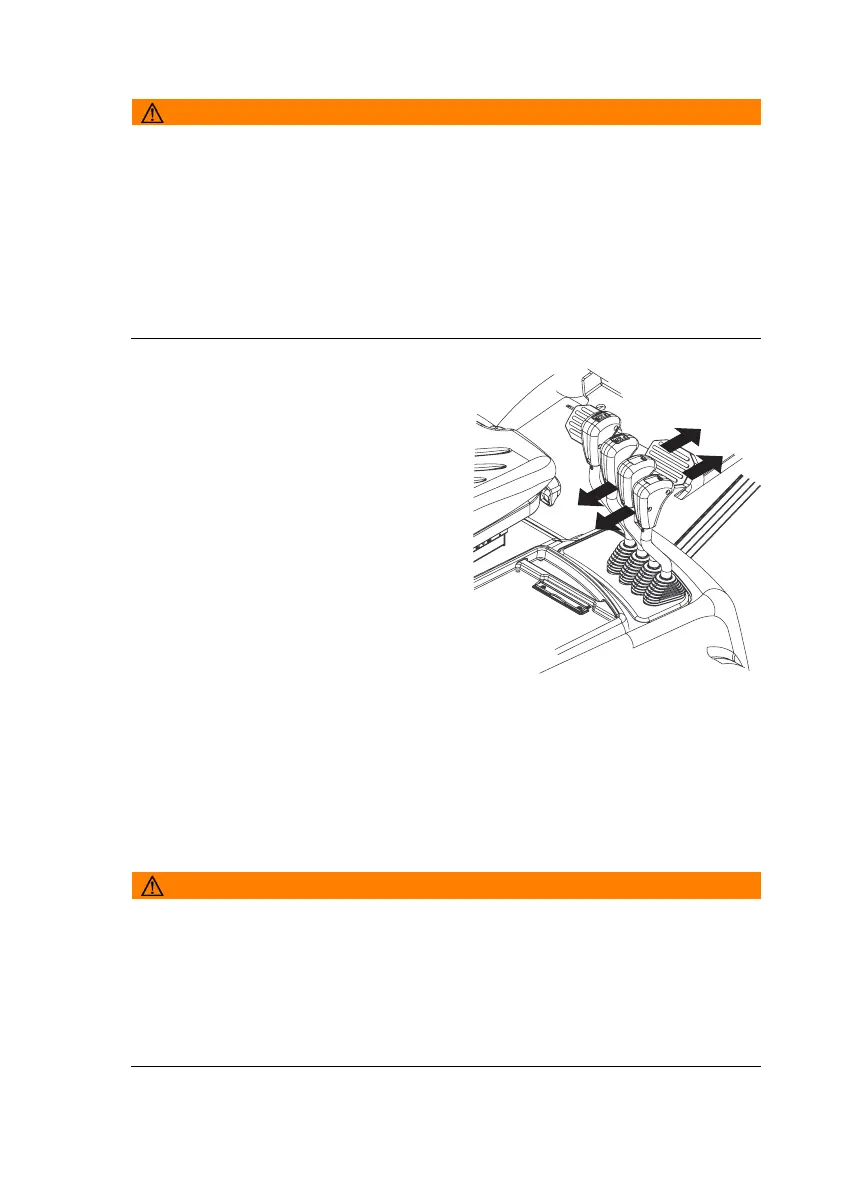

• Move all levers as far as they will go in both directions several times. The driver's
seat must be occupied to do this. Otherwise the control lever will remain in neutral
• Attach the plug connector and engage it in position.
• Mark the controls with symbols that indicate their function.
The attachment is now hydraulically connected.
WARNING!
Hydraulic ports for clamping attachments
XClamping attachments may only be added to trucks which have a button to enable
additional hydraulic functions.
XOn trucks with auxiliary hydraulics ZH2 the clamping function should only be
attached to the coupling pair marked ZH2.
XOn trucks with auxiliary hydraulics ZH3 the clamping function should only be
attached to the coupling pair marked ZH3.
