81
08.11 EN

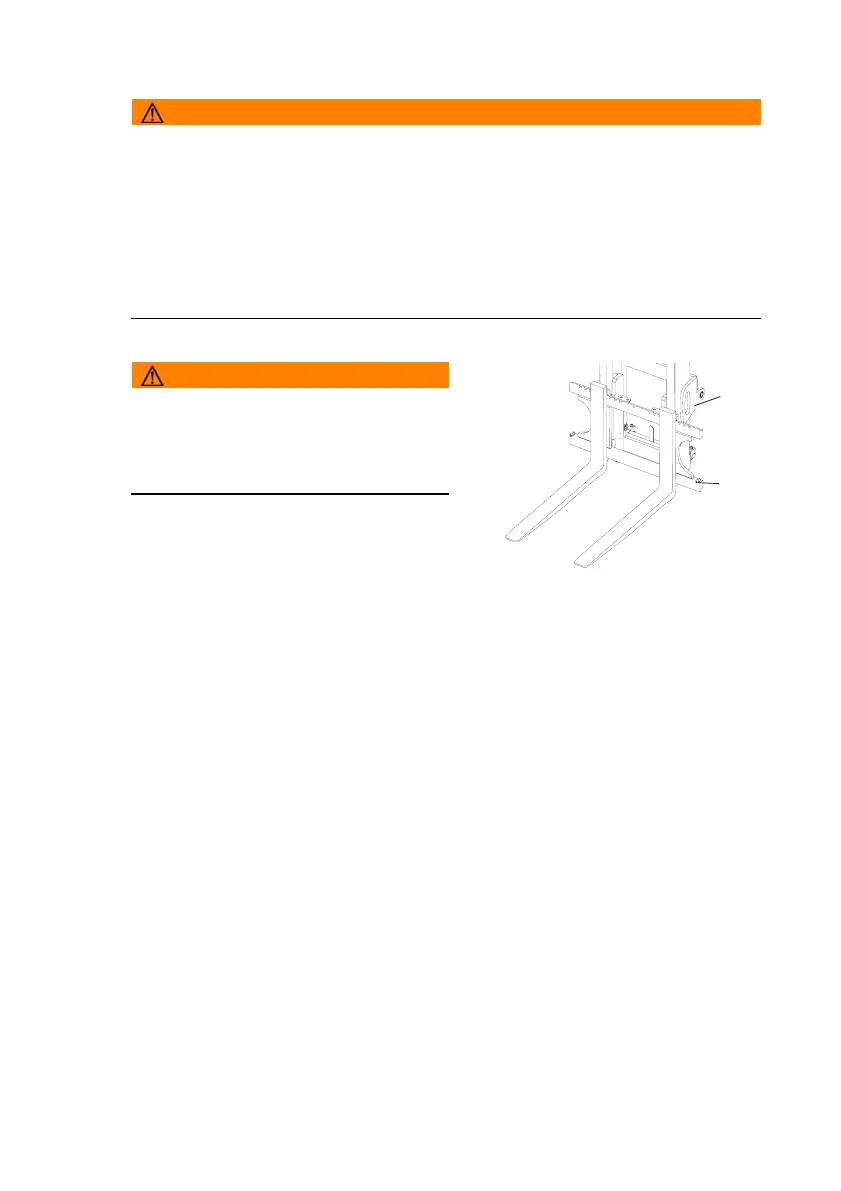

4.9 Replacing the forks
WARNING!
Unsecured forks can cause injury
You can injure your legs when replacing the forks.
XNever pull the forks towards your body.
XAlways push the forks away from your body.
XSecure heavy forks with lifting slings and a crane before pushing them down from
the fork carriage.
XAfter replacing the forks fit the retaining bolts (96) and make sure the bolts are
seated correctly. Retaining bolt torque: 85 Nm.
WARNING!
Trapping hazard
There is a trapping hazard when you
perform this operation.
XWear work gloves and safety shoes.
Replacing the forks
Requirements
Load handler lowered and forks not touching
the ground.
Procedure
Disassemble the retaining bolts (96).
Loosen the fork stop (95).
Carefully push the forks off the fork carriage.
The forks are now dismantled from the fork carriage and can be replaced.
96
95
