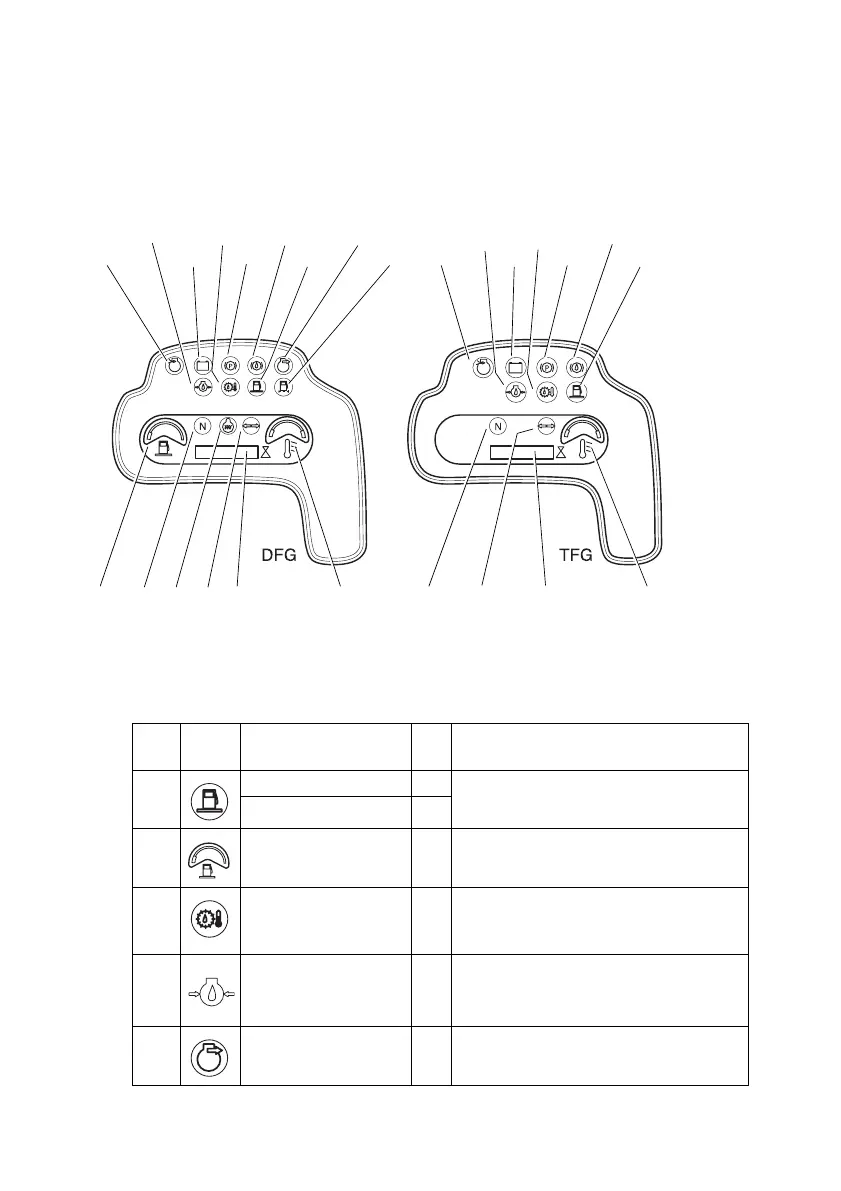

2.1 Control panel with display unit
The control panel display unit shows the operating data, the battery charge, the
service hours and error details and information. Pictograms in the left top section of
the control panel act as warning indicators.
Item Control /
Display
Function
67 DFG fuel indicator t
Graphic illustration of the fuel supply.
TFG with gas tank
t
68
Fuel display (DFG)
t Indicates how much fuel is left in the
tank.
81 Transmission oil
temperature indicator
t When lit, indicates that the
transmission oil temperature is too
high.
82 Engine oil pressure
display
t When lit, indicates that the engine oil
pressure is too low.
83 Soot filter indicator t Indicates that the soot filter is
contaminated.
9068 91 92 93
90
92 93
94
94
88
81
82
67
89
85
87
83
67
85
86
81
88
89
82
86
