08.11 EN
104

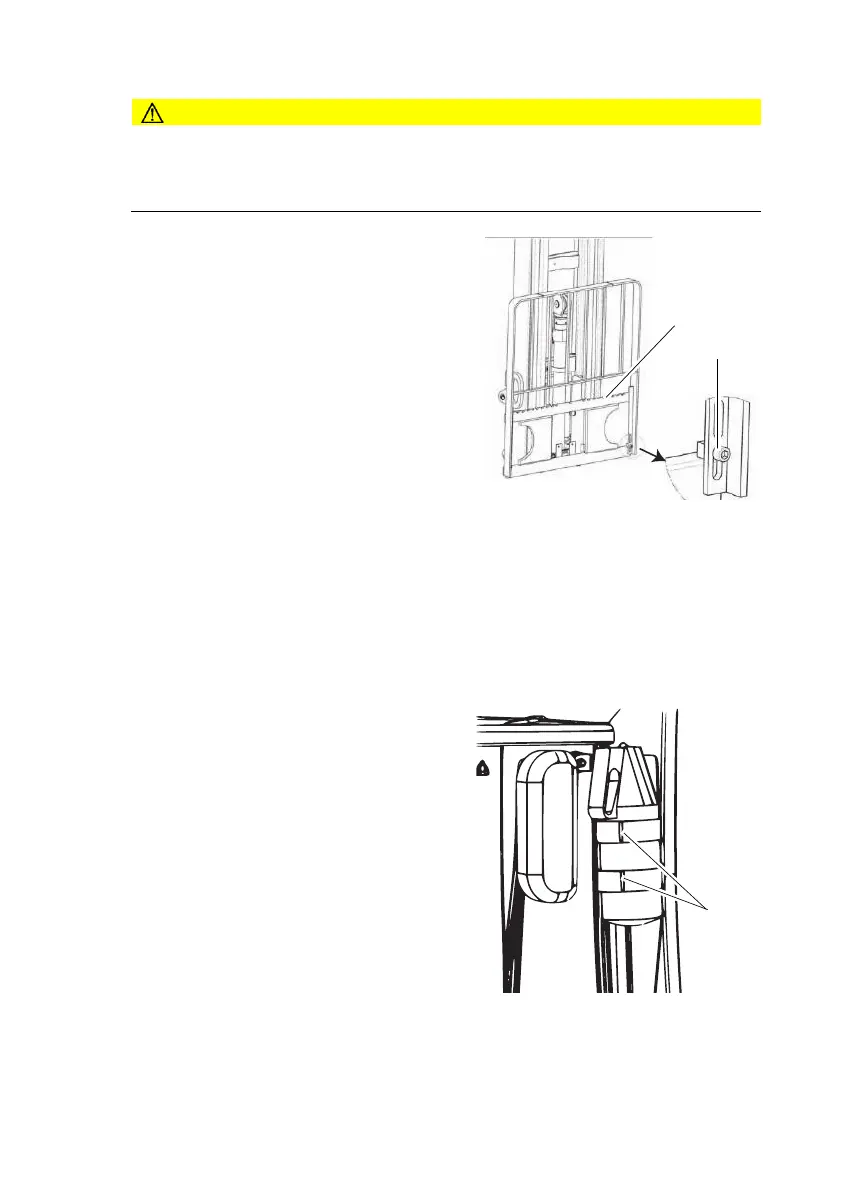

6.7 Removable load backrest
CAUTION!
Trapping hazard and heavy load backrest weight
XWear safety gloves and safety shoes when carrying out this operation.
XTwo people are required to remove and attach the load backrest.
Load backrest disassembly
Procedure
Loosen the screws (132)
Remove the load backrest from the fork
carriage and put it down securely.
Load backrest assembly
Procedure
Attach the load backrest to the top rail of the fork carriage.
Fit the bolts and tighten them with a torque wrench.
Z Torque = 85 Nm
6.8 Fire extinguisher
Procedure
Open the fasteners (133)
Pull the fire extinguish out of its bracket
Z To operate, refer to the illustrations on
the fire extinguisher
132
113
133
