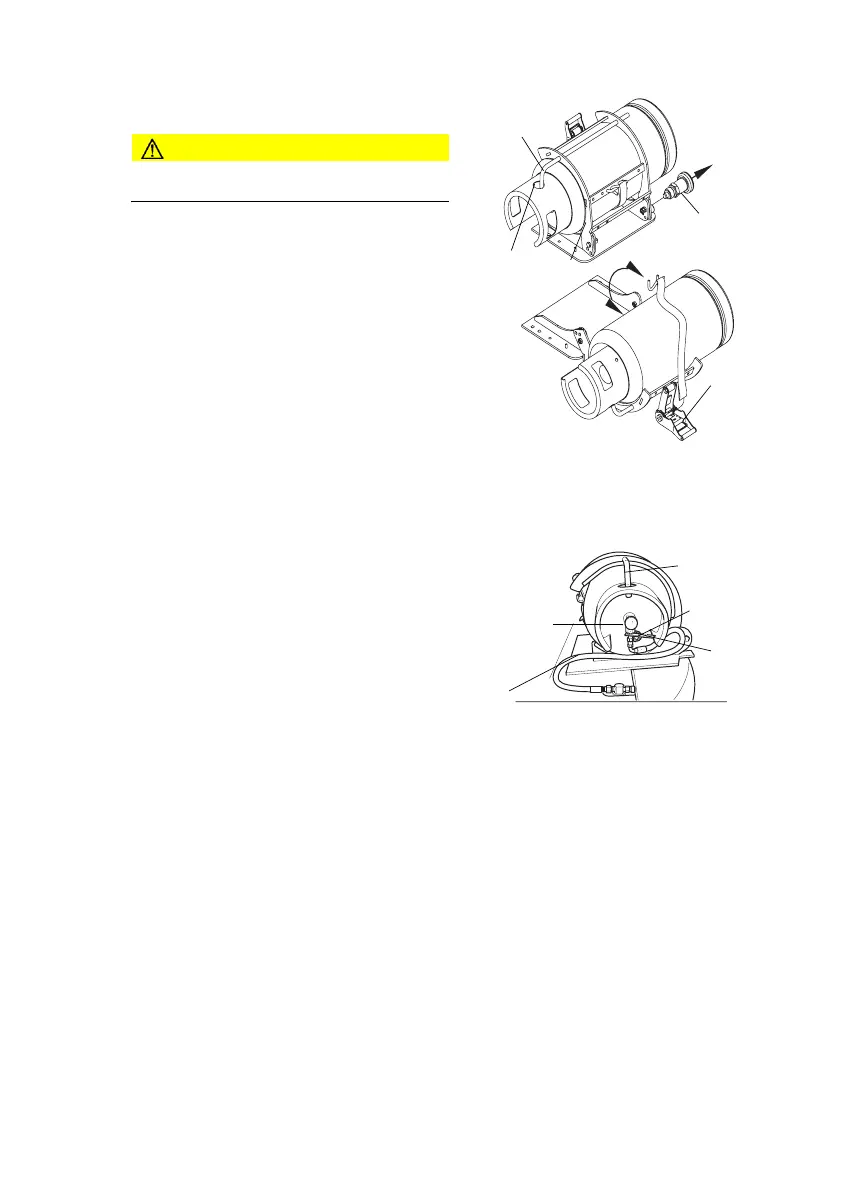

Remove the LPG bottle
CAUTION!
The connection has a left thread
Procedure
• Unscrew the union nut (52) while holding
against the handle (54).
• Remove the hose (55) and immediately
screw the valve cap onto the empty LPG
bottle.
• Remove the stop bolt (56) and rotate the
LPG bottle and bracket around the handle
(51).
• Fold back the lever of the toggle-type
fastener (59) and remove the tensioning
pivot.
• Remove the tensioning belt.
• Carefully remove the LPG bottle from the
bracket (58) and place it down securely.
Inserting a new LPG bottle
Procedure
• Insert the LPG bottle into the bracket (58)
• Centre the handle (51) in the hole (57).
• Align the hose connection upwards.
• Fit the tensioning belt around the LPG bottle
again and tension it with the toggle-type
fastener (59).
• Fit the tensioning pivot and tension the belt
with the toggle-type fastener (59).
• Rotate the LPG bottle and the bracket around the handle (51).
• Insert the stop bolt (56).
• Unscrew the valve cap.
• Fit the hose (55) in accordance with instructions.
• Carefully open the shut-off valve (53).
• Check the hose connection for leaks using a foam-forming agent.
The replacement is now complete.
