4.11.1 Operating the lift mechanism with the SOLO PILOT
Lifting and lowering
Requirements
– To prepare the truck for operation, (see
"Preparing the truck for operation" on
page 71)
Procedure

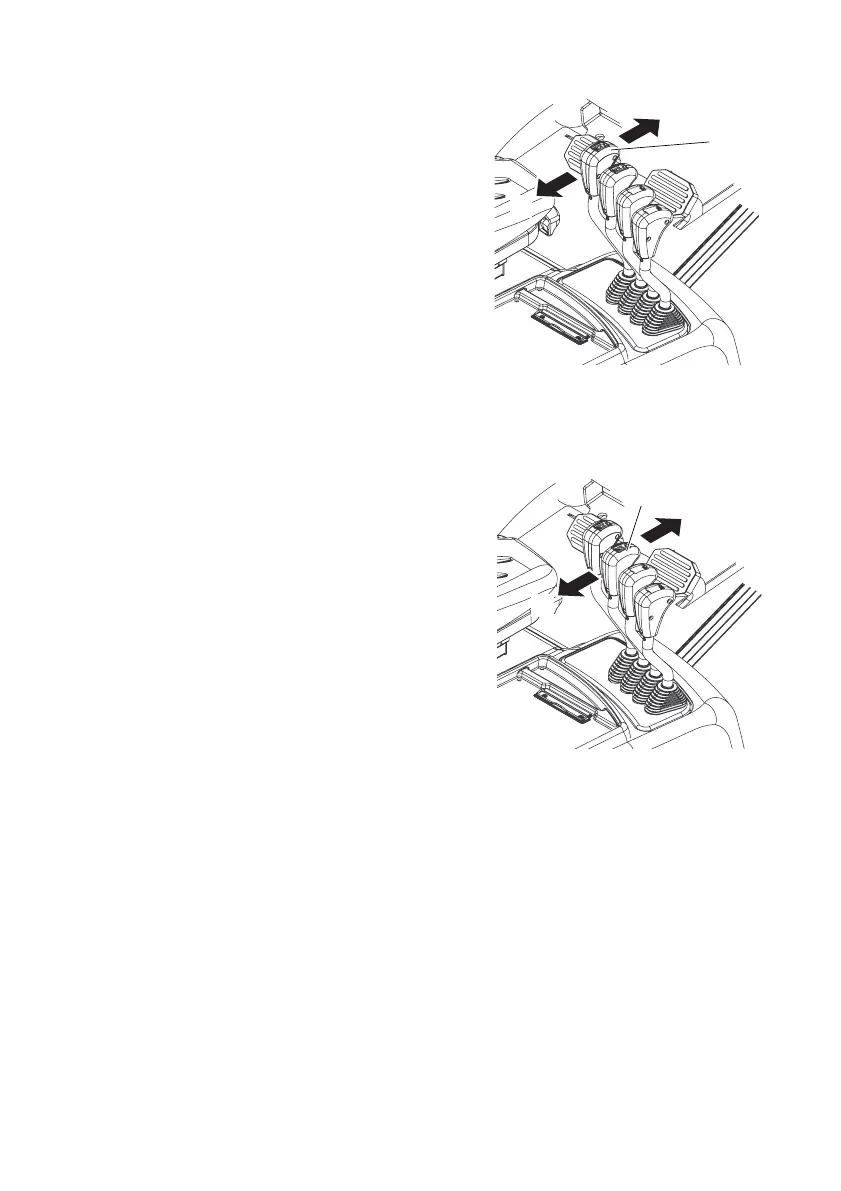

• Pull the Solo-Pilot lever (116) in direction H to
raise the load.
• Push the Solo-Pilot lever (116)in direction S
to lower the load.
The load is now raised / lowered.
Z When the limit position for the operation has been reached (there will be a noise
from the pressure relief valve) release the lever. The lever will revert automatically
to neutral.
Tilting the mast forward / backward
Requirements
– To prepare the truck for operation, (see
"Preparing the truck for operation" on
page 71)
Procedure
• Pull the Solo-Pilot lever (117) in direction R to
tilt the mast back.
• Push the Solo-Pilot lever (117) in direction V
to tilt the mast forward.
The mast is now tilted back / forward.
Z When the limit position for the operation has been reached (there will be a noise
from the pressure relief valve) release the lever. The lever will revert automatically
to neutral.
H
S
116
R
V
117
