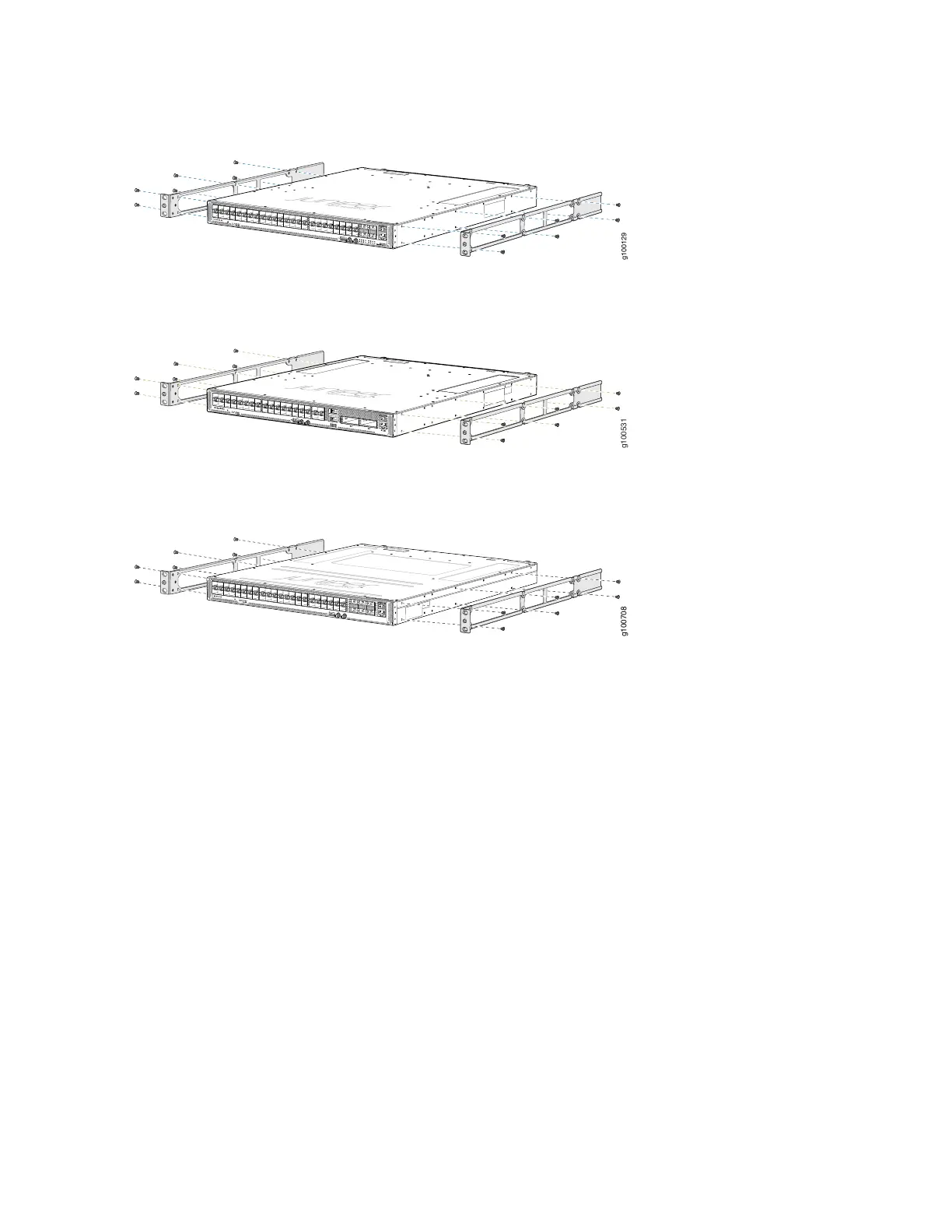

Figure 42: Install the Mounting Rails on an ACX5448 Router
g100129
Figure 43: Install the Mounting Rails on an ACX5448-D Router
g100531
Figure 44: Install the Mounting Rails on an ACX5448-M Router
g100708
4. Using a Phillips (+) number 2 screwdriver, secure the mounting rails to the chassis using the mounting
screws.
5. With one person on each side, hold on to the bottom of the chassis and carefully lift it so that the
mounting rails contact the rack rails.
6. Carefully slide the chassis with the rails attached on to the rack rails (see Figure 45 on page 91 for the
ACX5448 router, Figure 46 on page 91 for the ACX5448-D router, and Figure 47 on page 91 for the
ACX5448-M router).
